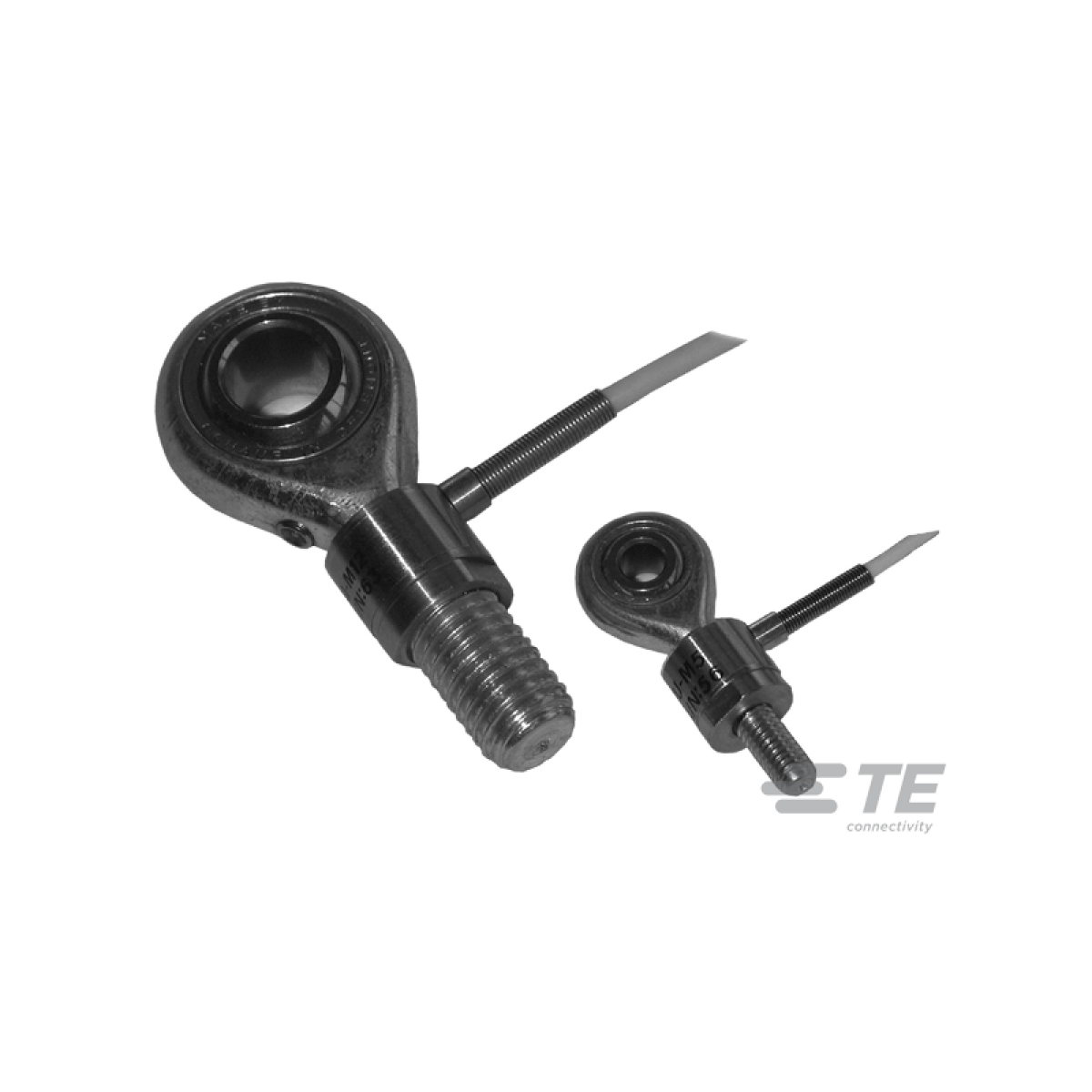

XFU400 Miniature Force sensor

Key features

• Based on standard rod end bearings
• Easy to integrate
• Fast response time

About the XFU400 Miniature Force Sensor

Available in a range of measurements and a variety of mounting threads, the XFU400 is easily installed.

Its miniature size facilitates testing where space is at a premium. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages.
The XFU400 is used in applications that require a spherical plain rod-end bearing and has the capacity of accepting a full scale range of up to 5 kN [1 klbf].

Applications for XFU400

• Linkage forces
• Machine tool
• Automotive systems test
• Robotics and effectors

Technical Specifications
