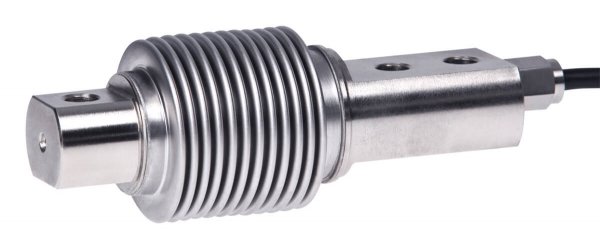

AmCells / Bending Beam Load Cell HXS

AmCells / Bending Beam Load Cell HXS

 Stainless steel IP68 shear beam load cell Test certificate no. TC7868 Revision 1
 Hermetically sealed C of C no R60/2000-NL1-12.50
 Suitable for pallet, platform and small hopper scales. Certificate no. 06-089A1
 High accuracy
 Current calibrated (sc-option)

Category:
Tag:
브랜드:

설명

Bending Beam Load Cell HXS

HXS is stainless steel bending beam load cell, designed for packing scales, low profile floor scales, belt scales, hopper and process weighing applications. Made from high quality stainless steel and with industry highest standards, HXS is the good choice for food, chemical and allied industries.

Applications

  • Packing scales
  • Low profile floor scales
  • Belt scales
  • Tank, hopper weighing

Main specifications

Rated capacities (Emax) 5, 10, 20, 30, 50, 75, 100, 150, 200, 250, 300, 500kg,1t Temperature range, compensated -10°C ≈ +40°C
Sensitivity 2.0±0.002mV/V Temperature range, operating -30°C ≈ +70°C
Accuracy class C2 – C5 Maximum safe overload 120% F.S.
Zero balance ± 1%Emax Ultimate overload  150% F.S.
TCO  ± 0.02%F.S/10°C  Excitation, recommended 10-12V DC
TC SPAN  ± 0.02%F.S/10°C Excitation, maximum 15V DC
Input resistance 400 ± 20Ω  Protection class  IP68
Output resistance 352 ± 3Ω  Construction Alloy Steel, Stainless Steel
Insulation resistance  ≥ 5000MΩ   Cable   Length: 3m,5m (HXS-A20kg)
      Diameter: Φ 5mm
