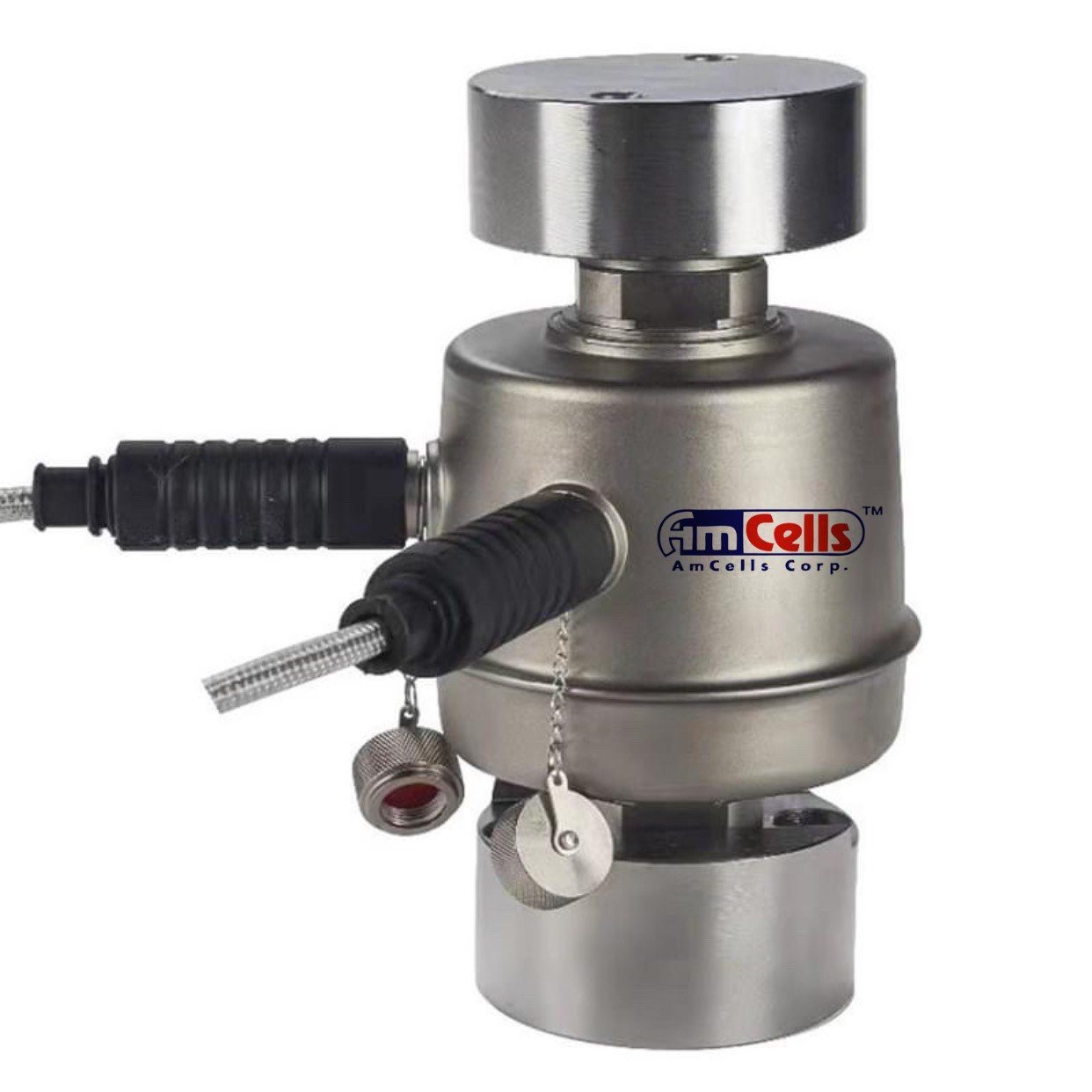

Compression Digital Load Cell AMCELL PDK
Main specifications
| Load Cell Type | Column Compression, Digital Weight Processor |
| Capacity (ton) | 30, 40, 50, 60 |
| Accuracy | C4, OIML |
| Communication | RS485 Encrypted |
| Communication Rate | 19200bps |
| Cable Length | 16m |
| Cable Length, Home Run | 200m |
| Warm-up Time from Cold Start | 10 minutes |
| Temperature – Operating | -30°C ≈ +70°C |
| Temperature – Compensated | -10°C ≈ +40°C |
| Working Angle | Max ±3° from vertical |
| Minimum Dead Load | 0 kg |
| Combined Error | < 250ppm R.C. |
| Protection | IP68 , IP69K Externally Tested |
| Safe Load Limit | 150% |
| Ultimate Load Limit | 300% |
| Construction | Stainless Steel |
| Lightning Protection | Integral TVSS All Lines |
| Break down Voltage | ≥ 500 VAC |
| Insulation Resistance | ≥ 5000 MO @ 50VDC |
