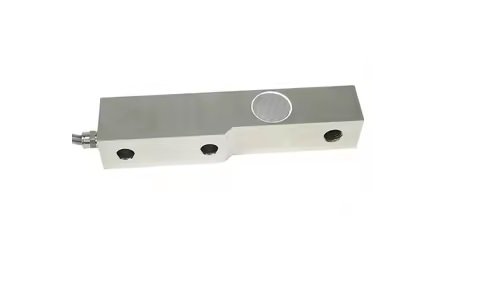

Shear Beam Load Cell SBT
SBT is low profile single-ended shear beam load cell, designed for floor scales, pallet scales, tank, hopper and silo weighing applications. Made from high quality alloy steel (optional stainless steel) and with industry highest standards, SBT is the good choice for heavy-duty and harsh environments.
Applications
- Floor scales
- Pallet scale
- Tank, hopper weighing
PECIFICATIONS
| Rated Capacity | 300kg, 500kg, 1t, 2t, 3t |
| Full Scale Output | 2.0mV/V ± 0.1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023%F.S |
| Repeatability | < ± 0.030%F.S |
| Hysteresis Error | < ± 0.030%F.S |
| Creep in 30 minutes | < ± 0.030%F.S |
| Input Resistance | 380 ± 20 Ohm |
| Output Resistance | 350 ± 5 Ohm |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 5000MΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Working Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150%F.S |
| Breaking Overload | 300%F.S |
| Seal Type | Glue / Welded sealed |
| IP Rating | IP67 |
