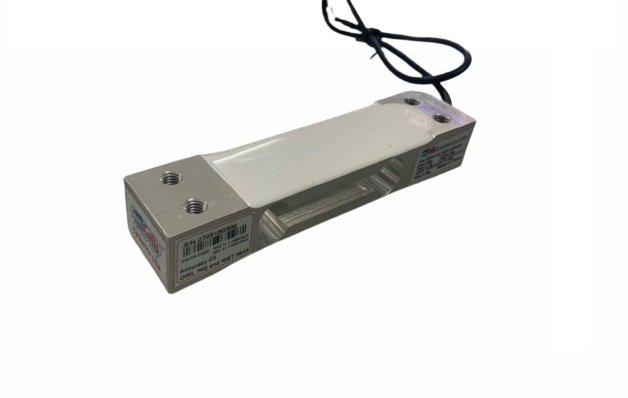

Single Point Load Cell AM-1022
AM-1022 is single point low profile load cell, designed for small platform scales and check weighing applications. Made from high quality anodized aluminum, AM-1022 is the good choice for simply-constructed applications.
Applications
- Small platform scales
- Check weighing applications
Main specifications
| Rated capacities (Emax) | 3,5,7,10,15,20,30,40,50kg | Temperature range, compensated | -10°C ≈ +40°C |
| Sensitivity | 2.0±0.2mV/V | Temperature range, operating | -20°C ≈ +50°C |
| Accuracy cless | OIML C3 / C4,C5,C6 | Maximum safe overload | 150% Emax |
| Creep error (30min) | ± 166ppm | Ultimate overload | 300% Emax |
| Zero balance | ± 3%Emax | Excitation, recommended | 10y DC |
| TC ZERO | ± 17.5ppm/°C | Excitation, maximum | 15V DC |
| TC SPAN | +20°C ≈ +40°C, ± 17.5ppm/°C | Protection class | IP65 |
| -10°C ≈ +20°C, ± 11.67ppm/°C | Construction | Aluminium | |
| Input resistance | 404 ± 15Ω | Cable | Length: 1m |
| Output resistance | 350 ± 3Ω | Diameter: Ø 5mm | |
| Insulation resistance | 2000MΩ (50V DC) | Installation torque recommended | 10N • m |
| Max. platform size | 400 x 500mm | Cable ordered separately | Length: 2m/3m |
