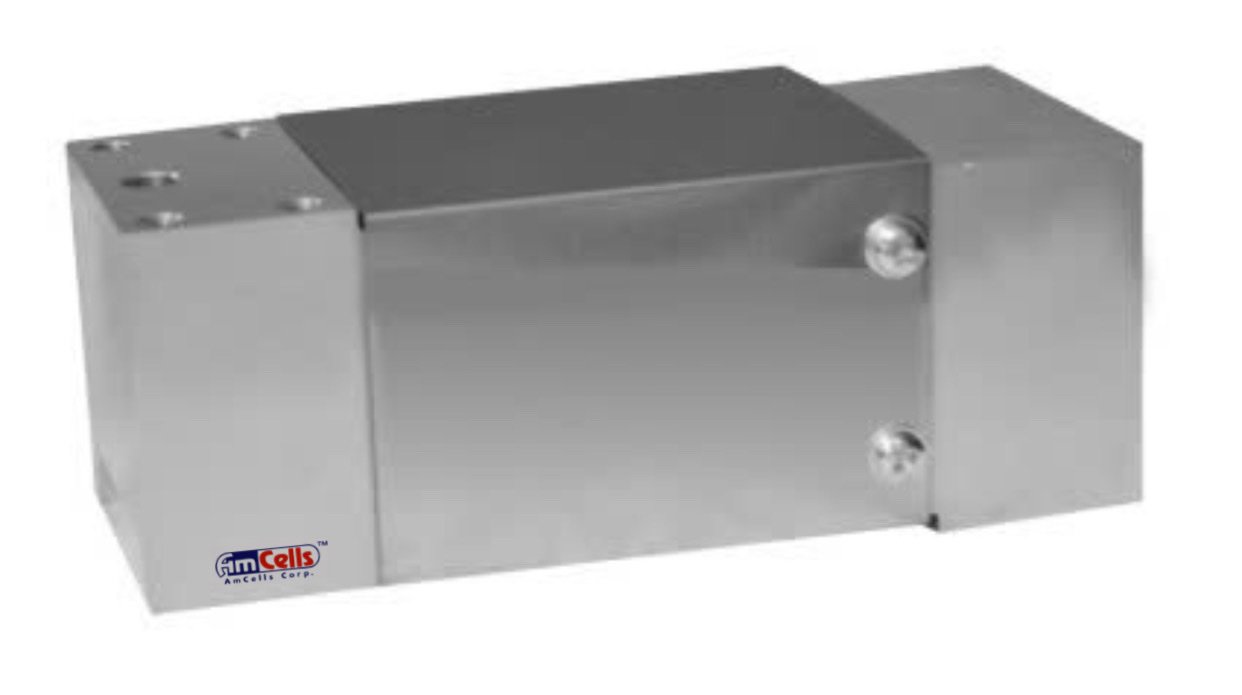

AmCells / Single Point Load Cell AM-1250

AmCells / Single Point Load Cell AM-1250

AM-1250 Series
• Single Point Small Load Cell • Aerospace Aluminum
• Meets OIML and HB44 Class III Standards
Ordering Code: AM-1250 – (capacity)
* Specifications subject to change without notice

 Aluminium-alloy IP67 single point load cell Test certificate no. TC7868 Revision 1
 Colorless anodized C of C no R60/2000-NL1-12.52
 Suitable for pricing scales, bench scales, etc. Certificate no. 11-090
 Maximum platform size: 1000 x 1000 mm
 A 1000 Ohm type available (R1) but is excluded from OIML

Category:
Tag:
브랜드:

설명

Single Point Load Cell AM-1250

AM-1250 is single point low profile load cell, designed for platform scales, belt scales and check weighing applications. Made from high quality anodized aluminum, SPM is the good choice for simply-constructed applications.

Applications

  • Platform scales
  • Belt scales
  • Check weighing applications

Main specifications

Rated capacities (Emax) 100,200,300,500,635,1000kg Temperature range, compensated -10°C ≈ +40°C
Sensitivity 2.0±0.02mV/V  Temperature range, operating -20°C ≈ +50°C
Accuracy cless C3 Maximum safe overload 150% Emax
Creep error (30min) ± 166ppm Ultimate overload 300% Emax
Zero balance ± 3%Emax Excitation, recommended 10V DC
TC ZERO ± 17.5ppm/°C Excitation, maximum 15V DC
TC SPAN +20°C ≈ +40°C, ± 17.5ppm/°C Protection class Aluminium
  -10°C ≈ +20°C, ± 11.67ppm/°C Construction 3m@ Ø 5mm
Input resistance 405 ± 150Ω Cable 25N-m
Output resistance 350 ± 5Ω Installation torque recommended
Insulation resistance ≥ 2000MΩ (50V DC)
Max. platform size 1000 x 1000mm
