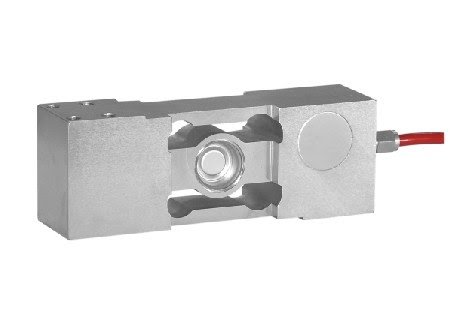

Single Point Load Cell ILEC
ILEC-SS Stainless steel is single point low profile load cell, designed for platform scales, belt scales and check weighing applications. Made from high quality anodized aluminum, SPM is the good choice for simply-constructed applications.
Applications
- Platform scales
- Belt scales
- Check weighing applications
Main specifications
| Rated capacities (Emax) | 50,60,100,150,200,250,300,500,800,1000kg | Temperature range, compensated | -10°C ≈ +40°C |
| Sensitivity | 2.0±0.02mV/V | Temperature range, operating | -20°C ≈ +50°C |
| Accuracy cless | C3 | Maximum safe overload | 150% Emax |
| Creep error (30min) | ± 166ppm | Ultimate overload | 300% Emax |
| Zero balance | ± 3%Emax | Excitation, recommended | 10V DC |
| TC ZERO | ± 17.5ppm/°C | Excitation, maximum | 15V DC |
| TC SPAN | +20°C ≈ +40°C, ± 17.5ppm/°C | Protection class | ILEC-SS Stainless steel |
| -10°C ≈ +20°C, ± 11.67ppm/°C | Construction | 2m@ Ø 5mm | |
| Input resistance | 404 ± 150Ω | Cable | 25N-m |
| Output resistance | 350 ± 30Ω | Installation torque recommended | |
| Insulation resistance | ≥ 2000MΩ (50V DC) | ||
| Max. platform size |
≥ 400 x 500mm (50-350kg); 500 x 600mm (500-800kg) 600 x 800mm (800-800kg 1000KG) |
