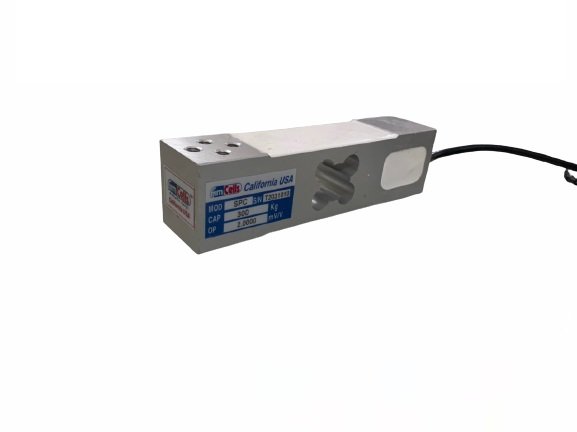

Single Point Load Cell SPC
SPC is single point low profile load cell, designed for small platform scales and check weighing applications. Made from high quality anodized aluminum, SPC is the good choice for simply-constructed applications.
Applications
- Small platform scales
- Check weighing applications
Main specifications
| Rated capacities (Emax) | 15,20,30,35,50,60,100,150,200,300,500kg | Temperature range, compensated | -10°C ≈ +40°C |
| Sensitivity | 2.0±0.2mV/V | Temperature range, operating | -20°C ≈ +50°C |
| Accuracy cless | OIML C3 | Maximum safe overload | 150% Emax |
| Creep error (30min) | ± 166ppm | Ultimate overload | 300% Emax |
| Zero balance | ± 3%Emax | Excitation, recommended | 10y DC |
| TC ZERO | ± 17.5ppm/°C | Excitation, maximum | 15V DC |
| TC SPAN | +20°C ≈ +40°C, ± 17.5ppm/°C | Protection class | IP65 |
| -10°C ≈ +20°C, ± 11.67ppm/°C | Construction | Aluminium | |
| Input resistance | 404 ± 15Ω | Cable | Length: 1.8m |
| Output resistance | 350 ± 3Ω | Diameter: Ø 5mm | |
| Insulation resistance | 2000MΩ (50V DC) | Installation torque recommended | 10N • m |
| Max. platform size | 400 x 500mm |
