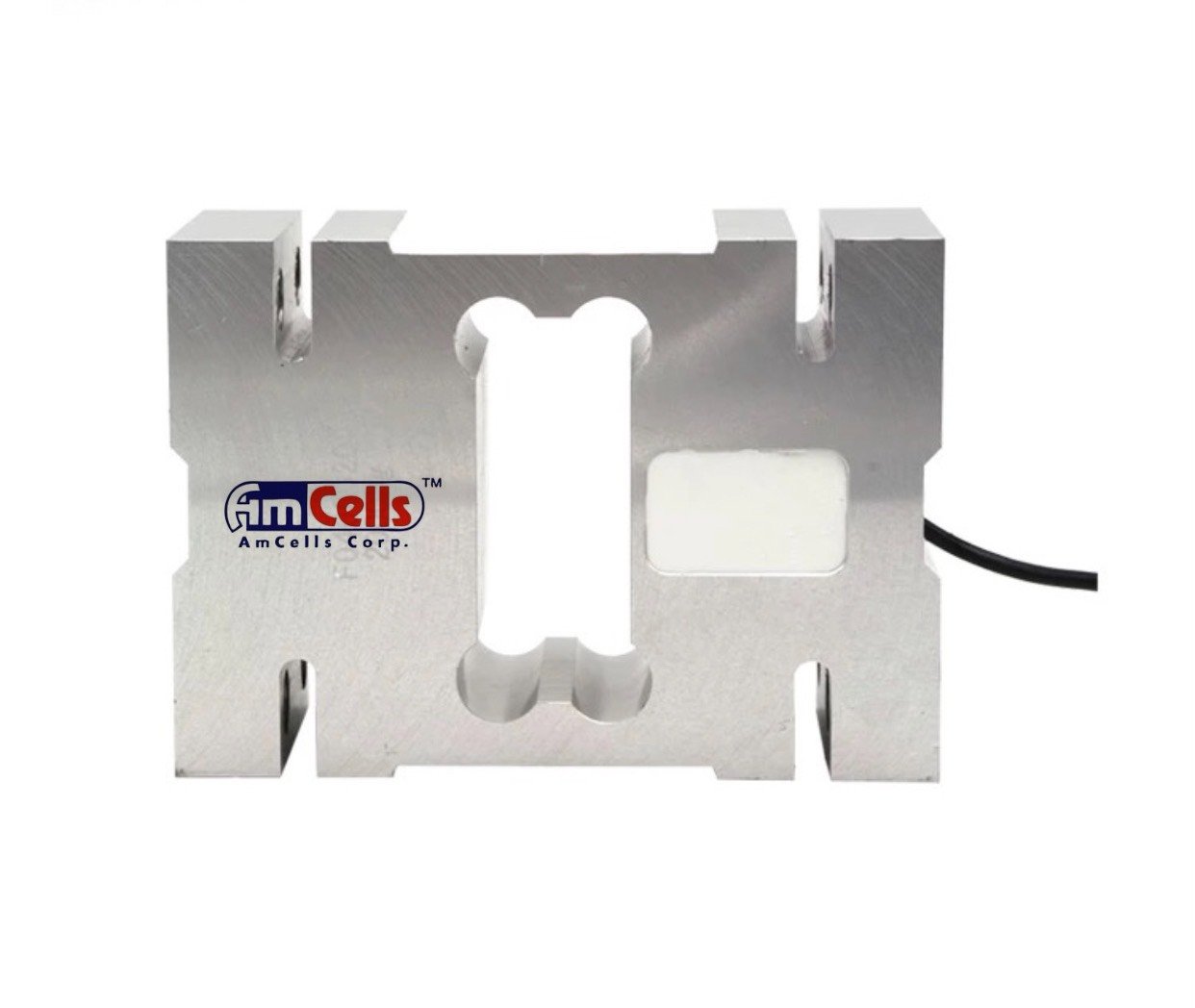

AmCells / Single Point Load Cell SPK

AmCells / Single Point Load Cell SPK

SPK Series
• Single Point Small Load Cell
• Aerospace Aluminum
• Meets OIML and HB44 Class III Standards Ordering Code: SPK- (capacity)
* Specifications subject to change without notice

 Aluminium-alloy IP66 single point load cell Test certificate no. TC7868 Revision 1
 Colorless anodized C of C no R60/2000-NL1-12.52
 Suitable for pricing scales, bench scales, etc. Certificate no. 11-060
 Maximum platform size: 600 x 800 mm, 1200 x 1200 mm

Category:
Tag:
브랜드:

설명

Single Point Load Cell SPK

SPB is single point low profile load cell, designed for platform scales, belt scales and check weighing applications. Made from high quality anodized aluminum, SPB is the good choice for simply-constructed applications.

Applications

  • Platform scales
  • Belt scales
  • Check weighing applications

Main specifications

Rated capacities (Emax) 250, 300, 500, 750, 1000, 2000 KG Temperature range, compensated -10°C ≈ +40°C
Sensitivity 2.0±0.02mV/V  Temperature range, operating -20°C ≈ +50°C
Accuracy cless C3 Maximum safe overload 150% Emax
Creep error (30min) ± 166ppm Ultimate overload 300% Emax
Zero balance ± 3%Emax Excitation, recommended 10V DC
TC ZERO ± 17.5ppm/°C Excitation, maximum 15V DC
TC SPAN +20°C ≈ +40°C, ± 17.5ppm/°C Protection class Aluminium
  -10°C ≈ +20°C, ± 11.67ppm/°C Construction 2m@ Ø 5mm
Input resistance 404 ± 150Ω Cable 25N-m
Output resistance 350 ± 30Ω Installation torque recommended
Insulation resistance ≥ 2000MΩ (50V DC)
Max. platform size
