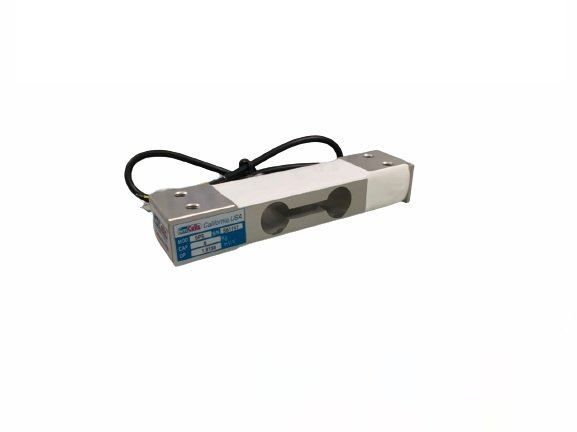

Single Point Load Cell SPS
SPS is single point low profile load cell, designed for platform scales, belt scales and check weighing applications. Made from high quality anodized aluminum, SPS is the good choice for simply-constructed applications.
Applications
- Platform scales
- Belt scales
- Check weighing applications
Main specifications
| Rated capacities (Emax) | 3,5,6,10,15,20,25,30,35,40,45,50,60,100,120kg | Temperature range, compensated | -10°C ≈ +40°C |
| Sensitivity | 2.0±0.02mV/V | Temperature range, operating | -20°C ≈ +50°C |
| Accuracy cless | C3,C5,C6 | Maximum safe overload | 150% Emax |
| Creep error (30min) | ± 166ppm | Ultimate overload | 300% Emax |
| Zero balance | ± 3%Emax | Excitation, recommended | 10V DC |
| TC ZERO | Excitation, maximum | 15V DC | |
| TC SPAN | +20°C ≈ +40°C, ± 17.5ppm/°C | Protection class | Aluminium |
| -10°C ≈ +20°C, ± 11.67ppm/°C | Construction | 0.5m@ Ø 5mm | |
| Input resistance | 404 ± 10Ω | Cable Standard | 0.4/0.5m |
| Output resistance | 350 ± 3Ω | Installation torque recommended | |
| Insulation resistance | ≥ 2000MΩ (50V DC) | Cable ordered separately | 1m/2m |
| Max. platform size |
