Models

101BH-50kg, 101BH-100kg, 101BH-200kg, 101BH-300kg, 101BH-500kg, 101BH-1t, 101BH-SE2t, 101BH-2t, 101BH-3t, 101BH-5t, 101BH-10t

Features

• Material: Alloy steel
• Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t
• Full Scale Output: 2mV/V ± 1%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP67
• NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
• NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
• OIML MAA C3, Y=17 000 certified from 200kg-1.5t
• OIML MAA C4.5, Y=14 000 certified from 2t-10t
• CE, RoHS, Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

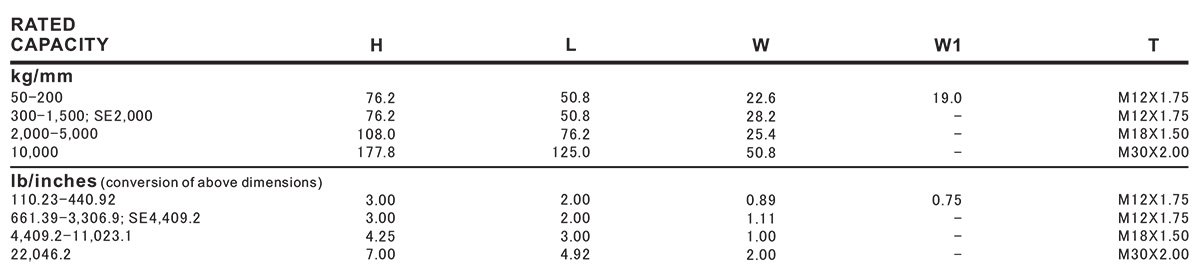

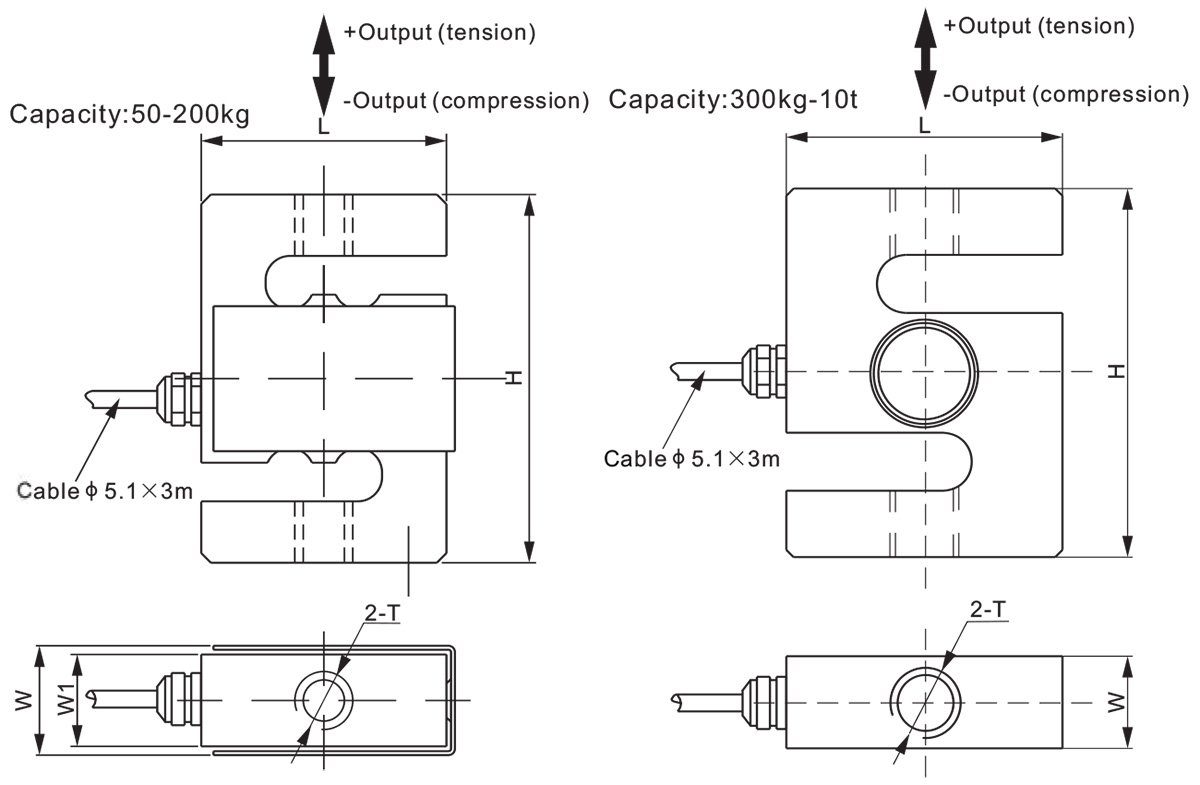

Dimensions

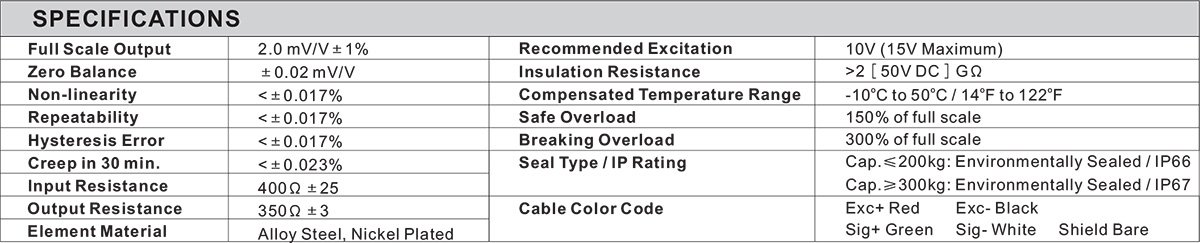

Specifications
