Models

101BS-300kg, 101BS-500kg, 101BS-1t, 101BS-2t, 101BS-3t, 101BS-5t, 101BS-10t, 101BS-500lb, 101BS-1Klb, 101BS-1.5Klb, 101BS-2Klb, 101BS-2.5Klb, 101BS-3Klb, 101BS-5Klb, 101BS-10Klb, 101BS-15Klb, 101BS-20Klb

Features

• Material: Stainless steel
• Rated Capacities: 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t
• Full Scale Output: 2mV/V ± 1%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP68
• NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
• NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
• OIML MAA C3, Y=17 000 certified from 200kg-1.5t
• MAA C4.5, Y=14 000 certified from 2t-10t
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

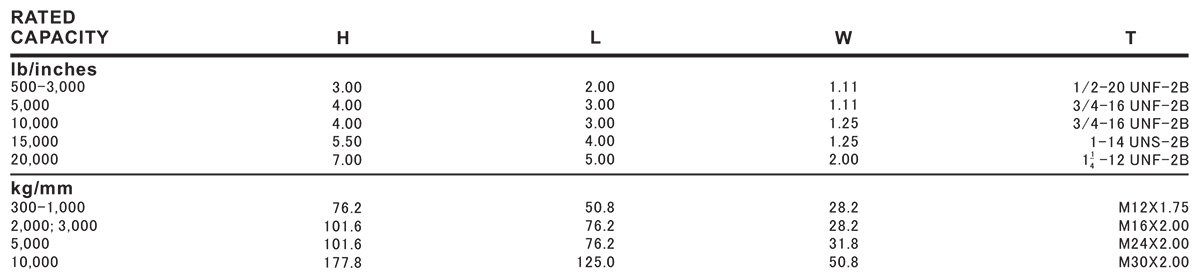

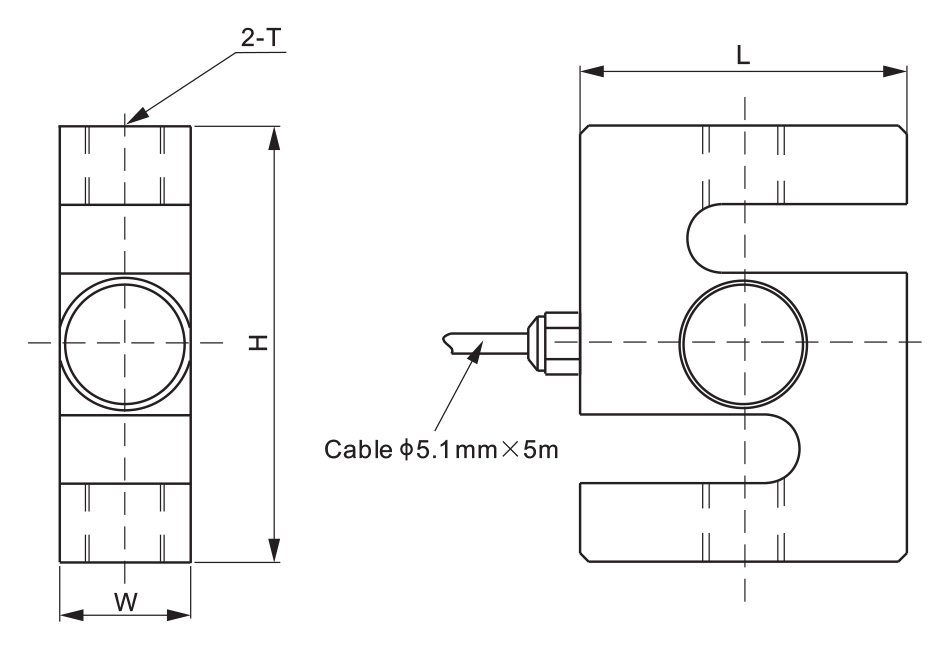

Dimensions

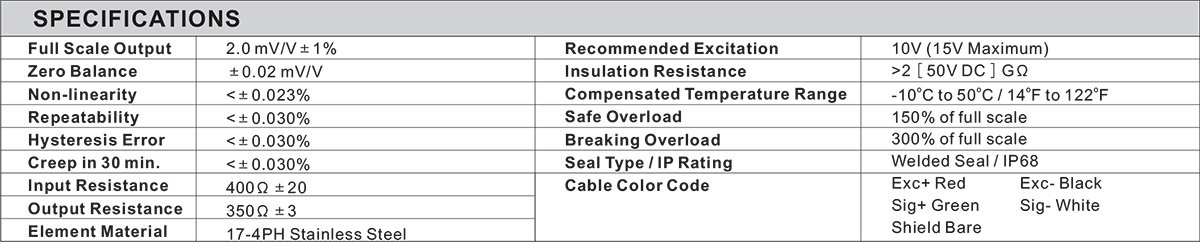

Specifications
