설명

Models

101NH-50lb, 101NH-100lb, 101NH-200lb, 101NH-250lb, 101NH-300lb, 101NH-500lb, 101NH-750lb, 101NH-1Klb, 101NH-1.5Klb, 101NH-2Klb, 101NH-2.5Klb, 101NH-3Klb, 101NH-5Klb, 101NH-10Klb, 101NH-15Klb, 101NH-15Klb-35ft, 101NH-20Klb, 101NH-20Klb-35ft

Features

• Material: Alloy steel
• Rated Capacities: 50lb, 100lb, 200lb, 250lb, 300lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
• Full Scale Output: 3mV/V ± 1%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP67
• NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
• NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
• OIML MAA C3, Y=17 000 certified from 200kg-1.5t
• OIML MAA C4.5, Y=14 000 certified from 2t-10t
• CE, RoHS and Ex certified

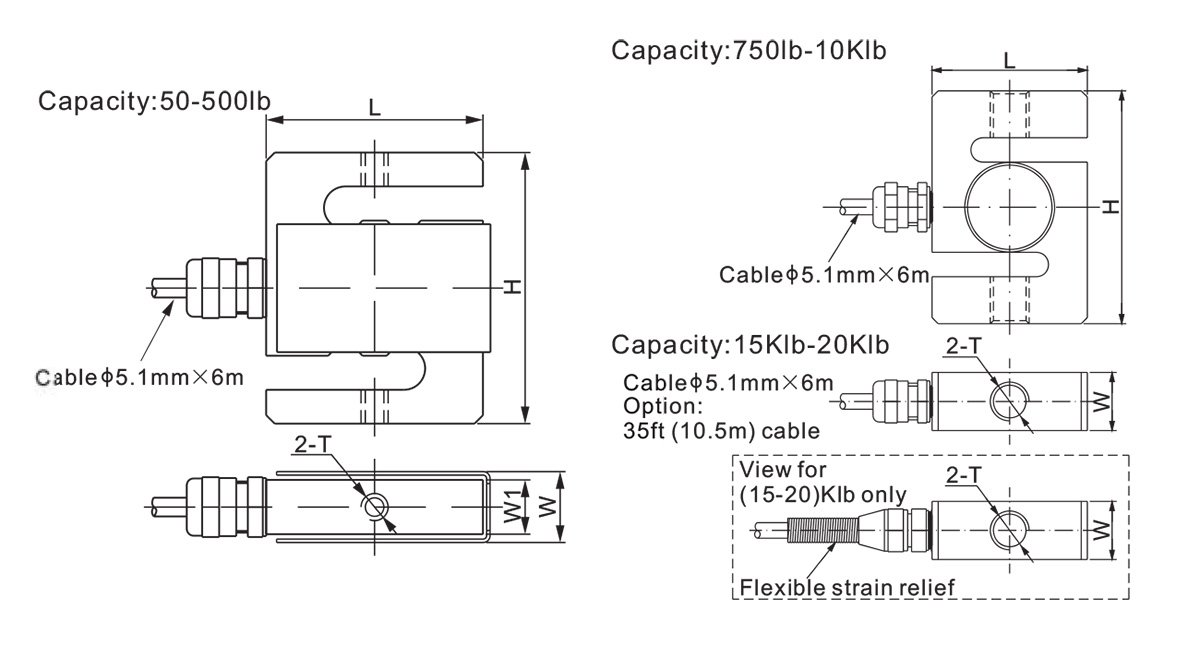

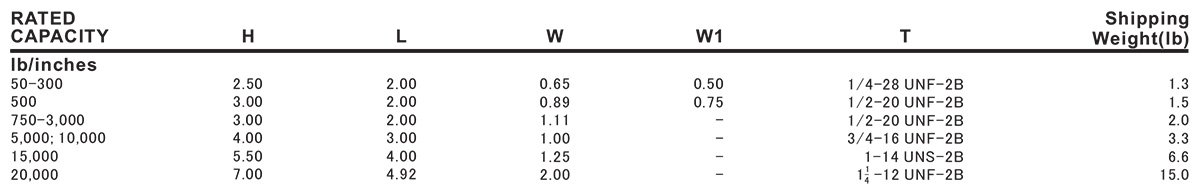

Dimensions

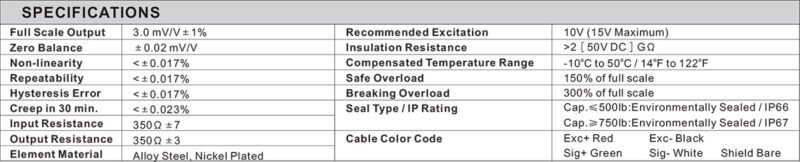

Specifications
