설명

Models

102BHM1-(10-25)Klb, 102BHM1-(50-75)Klb, 102BHM1-SE100Klb, 102BHM1-(100-125)Klb, 102BHM1-200Klb, 102BHM1-(5-15)t, 102BHM1-(25-35)t, 102BHM1-50t, 102BHM1-100t

Features

• Assembles: 102BH double ended beam load cell
• Material: Alloy steel , zinc plated
• Capacities: 10Klb-200Klb/5t-35t
• NTEP certified load cells from 25Klb-125Klb
• OIML certified load cells from 11t-55t
• CE , RoHS and Ex certified load cells
• Center pivoted with self-aligning suspension link design
• Allows for multi-directional movements
• No check rods required
• Load cell is not included

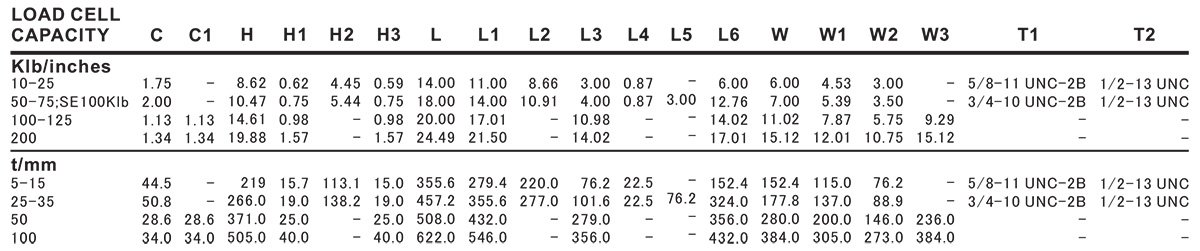

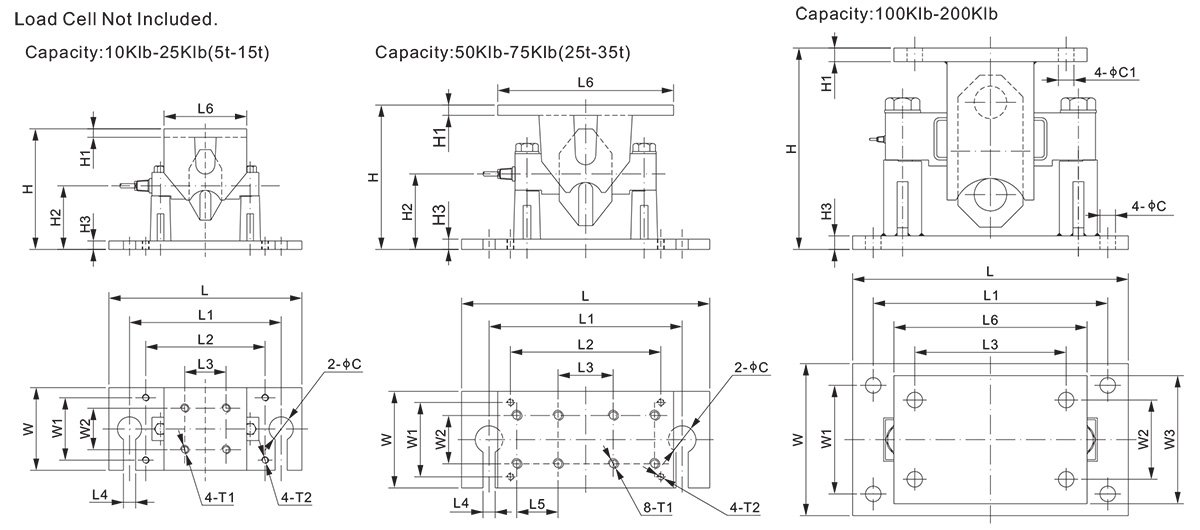

Dimensions
