설명

Models

102DHM3-(5-20)Klb, 102DHM3-(30-75)Klb, 102DHM3-100Klb, 102DHM3-150Klb, 102DHM3-(200-250)Klb

Features

• Assembles: 102DH double ended beam load cell
• Material: Alloy steel
• Capacities: 5Klb-250Klb
• NTEP certified load cells from 10Klb-100Klb
• OIML certified load cells from 9t-45t
• CE , RoHS and Ex certified load cells
• Center pivoted and self-checking with 50% rated load anti-lifting and side force protection
• Sliding pin design compensates for thermal expansion and contraction
• Load cell not included

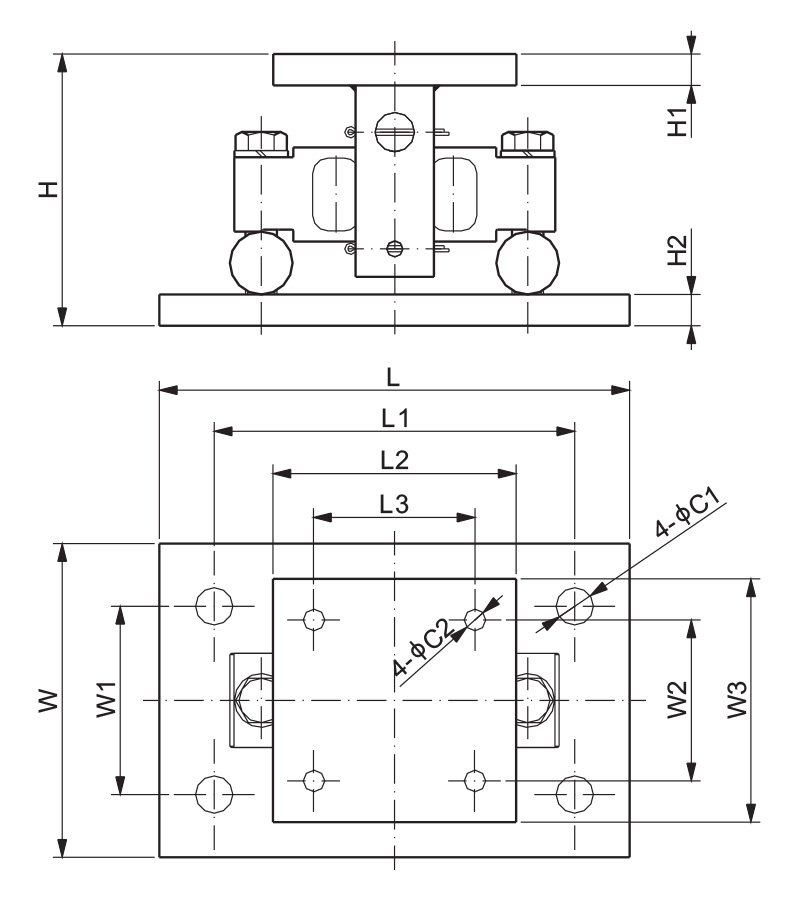

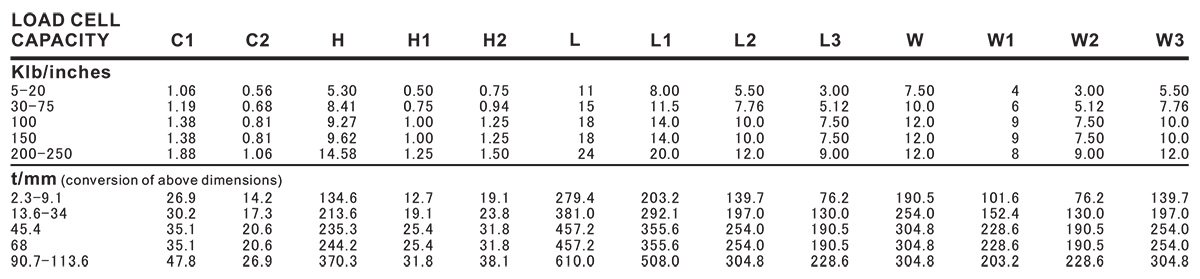

Dimensions
