설명

Models

102RH-10t, 102RH-15t, 102RH-50Klb, 102RH-65Klb, 102RH-CH-75Klb, 102RH-CH-100Klb, 102RH-CH-125Klb, 102RH-100Klb, 102RH-125Klb

Features

• Material: Alloy steel
• Rated Capacities: 50Klb, 65Klb, 100Klb, 125Klb, 10t, 15t
• Full Scale Output: 3mV/V ± 0.25%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP68
• NTEP 1:10 000 Class IIIL, Multiple Cell certified from 50Klb-125Klb
• OIML MAA C4, Y=15 000 certified from 11t-55t
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

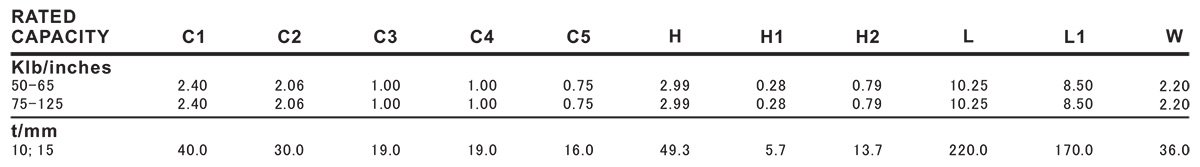

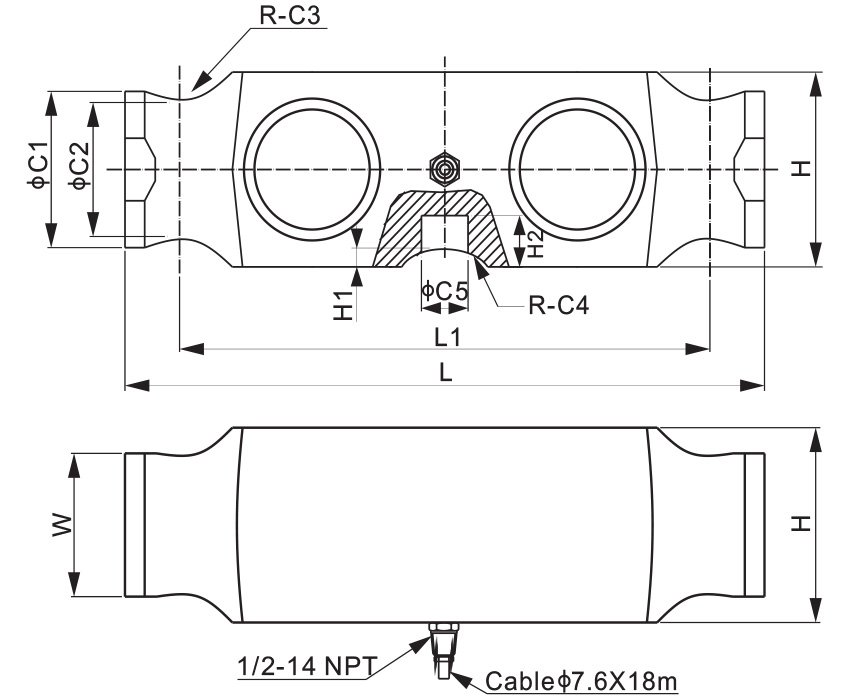

Dimensions

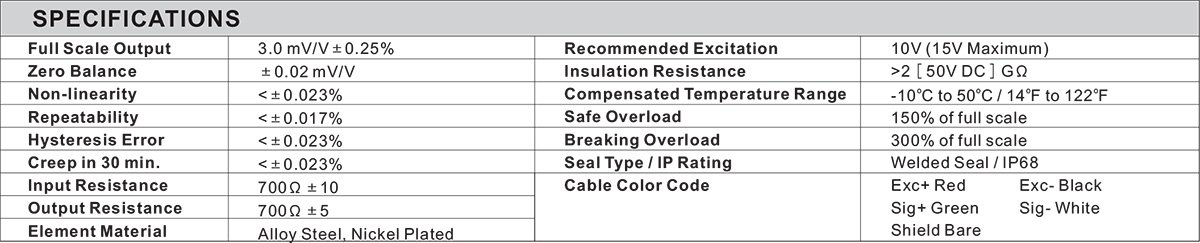

Specifications
