설명

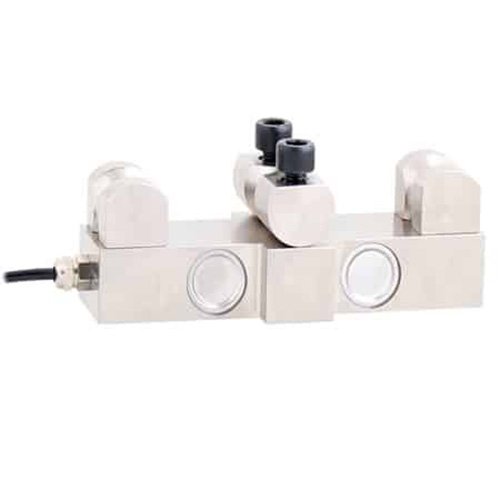

Models

107CH-10kN, 107CH-20kN, 107CH-50kN, 107CH-100kN, 107CH-200kN

Features

• Material: Alloy steel, Nickel Plated
• Rated Capacities: 10kN, 20kN, 50kN, 100kN, 140kN, 200kN
• Full Scale Output: 1.0 – 1.5mV/V
• Safe Overload: 150% of full scale
• Seal Type/IP Rating: Environmentally Sealed/IP67

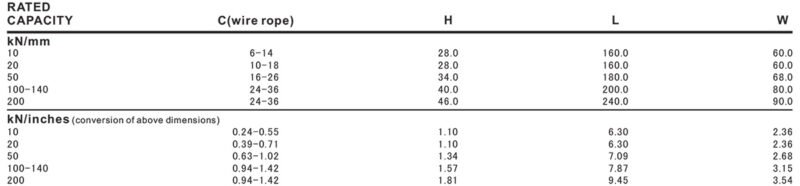

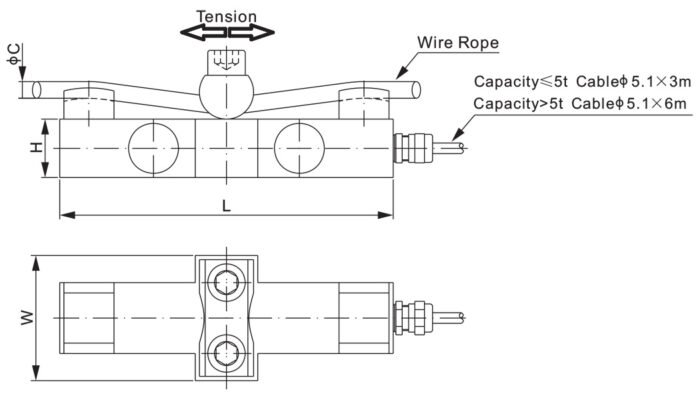

Dimensions

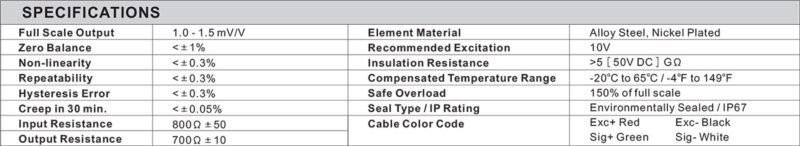

Specifications
