Models

110BH-1t, 110BH-2t, 110BH-5t, 110BH-10t, 110BH-20t, 110BH-30t, 110BH-50t, 110BH-75t, 110BH-100t, 110BH-120t

Features

• Material: Alloy steel
• Rated Capacities: 1t, 2t, 5t, 10t, 20t, 30t, 50t, 75t, 100t, 120t
• Full Scale Output: 3mV/V ± 10%
• Safe Overload: 150% of full scale
• Breaking Overload: 400% of full scale
• IP Rating: IP67
• NTEP 1:3000 Class III, Single Cell certified from 1t-2t
• NTEP 1:5000 Class III, Multiple Cell certified from 1t-2t
• NTEP 1:3000, up to 1:6000 Class III, Multiple Cell and Single Cell certified from 5t-50t
• OIML MAA C3, Y=15 000 certified from 1t-10t
• OIML MAA C3, up to C6, Y=13 5000 certified from 10t-50t
• CE and RoHS certified

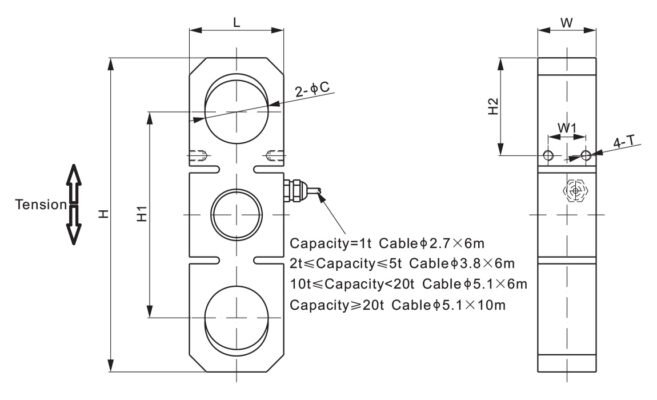

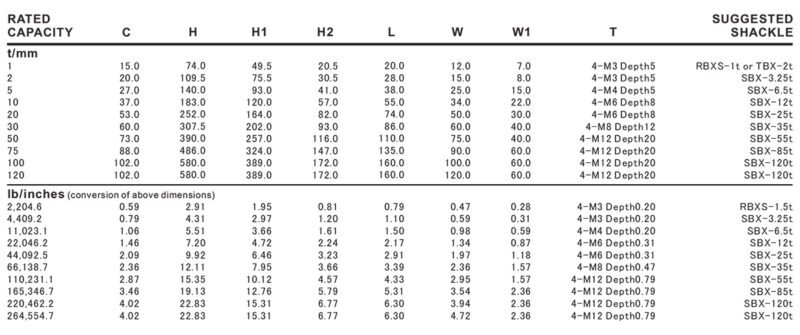

Dimensions

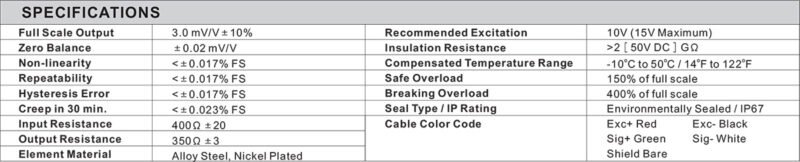

Specifications
