설명

Models

110RH-T2-500kg, 110RH-T2-1t, 110RH-T2-2t, 110RH-T2-3t, 110RH-T2-5t, 110RH-T2-10t, 110RH-T2-20t, 110RH-T2-30t, 110RH-T2-50t, 110RH-T2-100t, 110RH-ST-T2-500kg, 110RH-ST-T2-1t, 110RH-ST-T2-2t, 110RH-ST-T2-3t, 110RH-ST-T2-5t, 110RH-ST-T2-10t, 110RH-ST-T2-20t

Features

• Material: Alloy steel with PVC Protection
• Rated Capacities: 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t
• Full Scale Output: 2mV/V ± 0.25%
• Safe Overload: 200% of full scale
• Breaking Overload: 500% of full scale
• IP Rating: IP67
• NTEP 1:3000 Class III, Single Cell certified from 500kg-3t
• NTEP 1:5000 Class III, Multiple Cell certified from 500kg-3t
• NTEP 1:3000, up to 1:6000 Class III, Multiple Cell and Single Cell certified from 5t-50t
• OIML MAA C3, Y=15 000 certified from 1t-10t
• OIML MAA C3, up to C6, Y=13 5000 certified from 10t-50t
• CE and RoHS certified

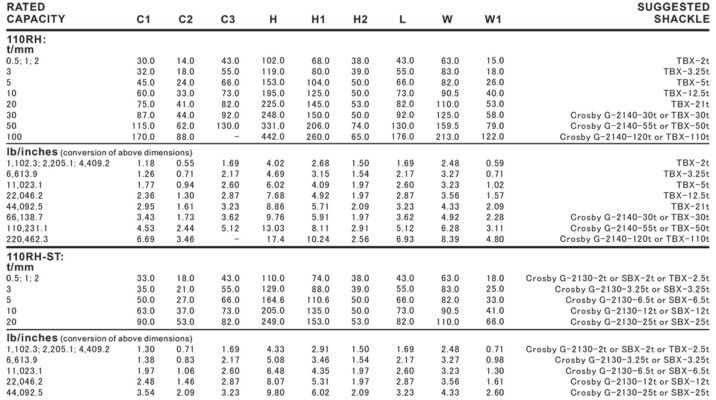

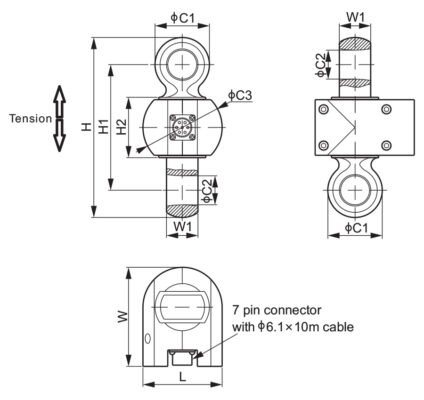

Dimensions

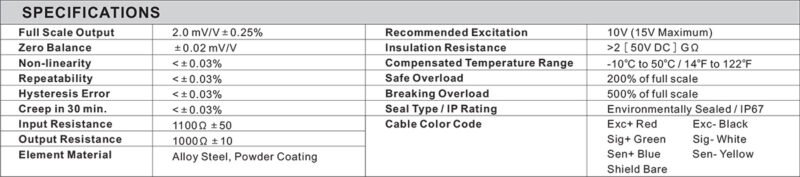

Specifications
