Models

563YSM2-(0.5-SE5)Klb, 563YSM2-(250kg-2t)

Features

• Assembles: 563YS, 563YS30 single ended beam load cell
• Material: Stainless steel
• Capacities: 100lb-10Klb/100kg-5t
• NTEP certified load cells from 1Klb-10Klb
• OIML certified load cells from 500kg-2.5t
• CE , RoHS and Ex certified load cells
• Center pivoted and self-checking with 50% rated load anti-lifting protection
• Tension load applied to the load cell is converted to compression load application for the weigh module
• Load cell not included

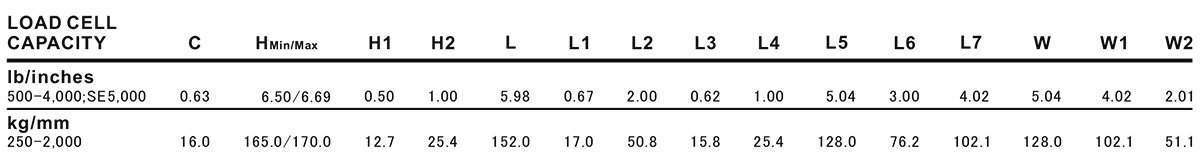

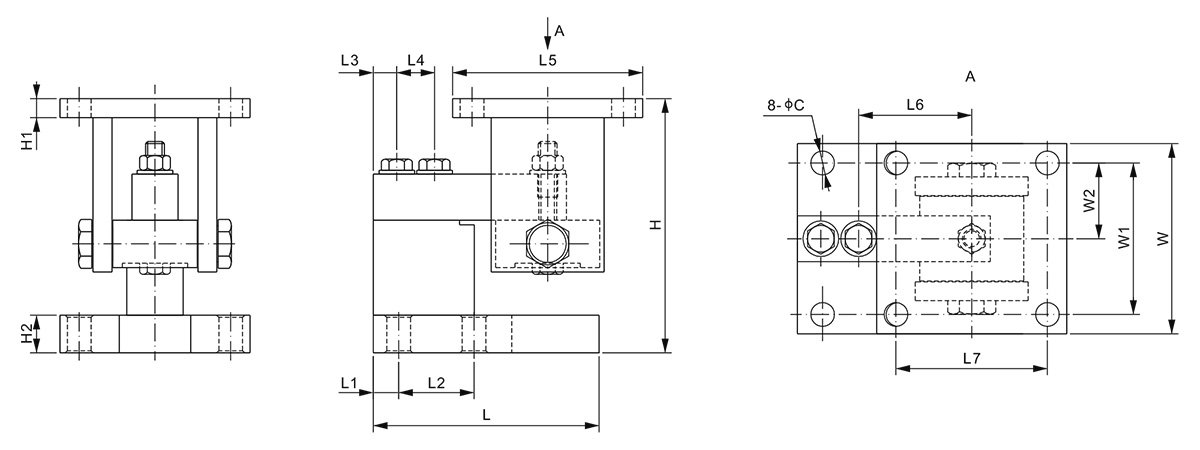

Dimensions
