BAYCON / BR110/BR110S Ring Type Load Cell

BAYCON / BR110/BR110S Ring Type Load Cell

Connection Analogue
Type Ring Type
High Temperature Yes
Applications Explosive Environment, Truck Scales, Tank & Silo Weighing, High Capacity Applications, Special Weighing, Industrial Processes, Test Machines
Certificate OIML, ATEX
Material Stainless Steel, Nickel Plated Steel
Maximum Capacity 1 t, 2.2 t, 4.7 t, 10 t, 15 t, 22 t, 33 t, 47 t, > 50 t
Protection Class IP68
Category:
Tag:
브랜드:

설명

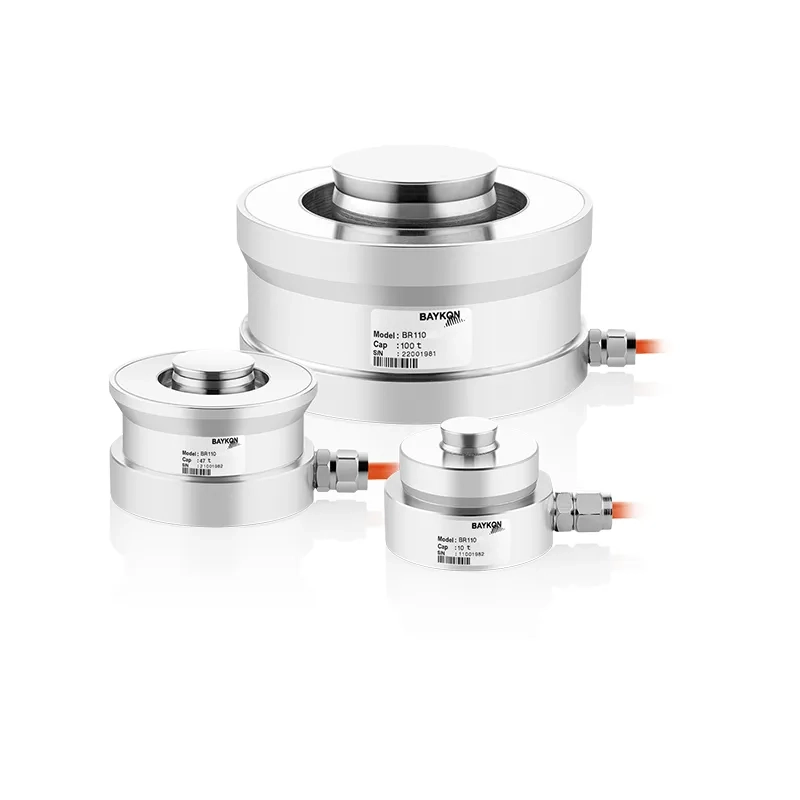

BR110/BR110S Ring Type Load Cell

BR110 and BR110S are compression-type load cells that are hermetically welded, IP68-protected and are designed for general weighing applications. They are available in alloy steel and stainless-steel versions.

BR110S stainless steel version is EU OIML C3 approved in 10-47 t capacities. It can be used in high-capacity floor scales, tank scales, ship weighing and similar weighing applications.

The BR110HT version is used extensively in weighing applications in high-temperature environments up to 150°C, especially in the steel industry.

For explosive atmospheres, order the ATEX approved version.

br110br110s-ring-type-load-cell-catalogue-0304202510522916146
