C3P1 and C3P2 cells are fabricated with high strength ‘ring’ type elements to provide an output signal of 3 mV/V at rated capacity. Each cell is designed for minimum deflection and 150% safe overload without damage. C3P2 cells contain a second bridge. The second bridge can be used simultaneously with the first bridge for dual output or be reserved as a backup in case of failure in the first bridge. Double diaphragm fabrication offers precision performance and long term reliability. Low deflection and superior sealing guarantee trouble-free operation. Relatively low mass and small deflection under load, produce excellent frequency response. Overall, C3P1/C3P2 cells perform superbly in many environments where other transducers cannot.

Category:
Tag:
브랜드:

설명

C3P1 Canister

Features
Capacity range: 500, 1K, 2K, 3K, 5K, 10K, 20K, 50K, and 100K lb (227, 454, 907, 1.4K, 2.27K, 4.54K, 9K, 13.6K, 22.7K, and 45.4K kg)
Environmentally sealed: Operational: –30° to +175°F
Low deflection
Compact and rugged
cFMus approved
Application: Process Weighing & Batching,Hazardous Areas
Certificates: cFMus
Combined Error: 0-0.05 %
Environment Protection Class: IP67,IP66,IP65,IP54,IP20
Industry: Chemical,Pharmaceutical,Food & Beverage
Material: Painted Steel
Max Capacity: k lb: 25-115
Max Capacity: kN: 100-500
Max Capacity: ton: 10-50
Product Type: Weigh Modules & Load Cells

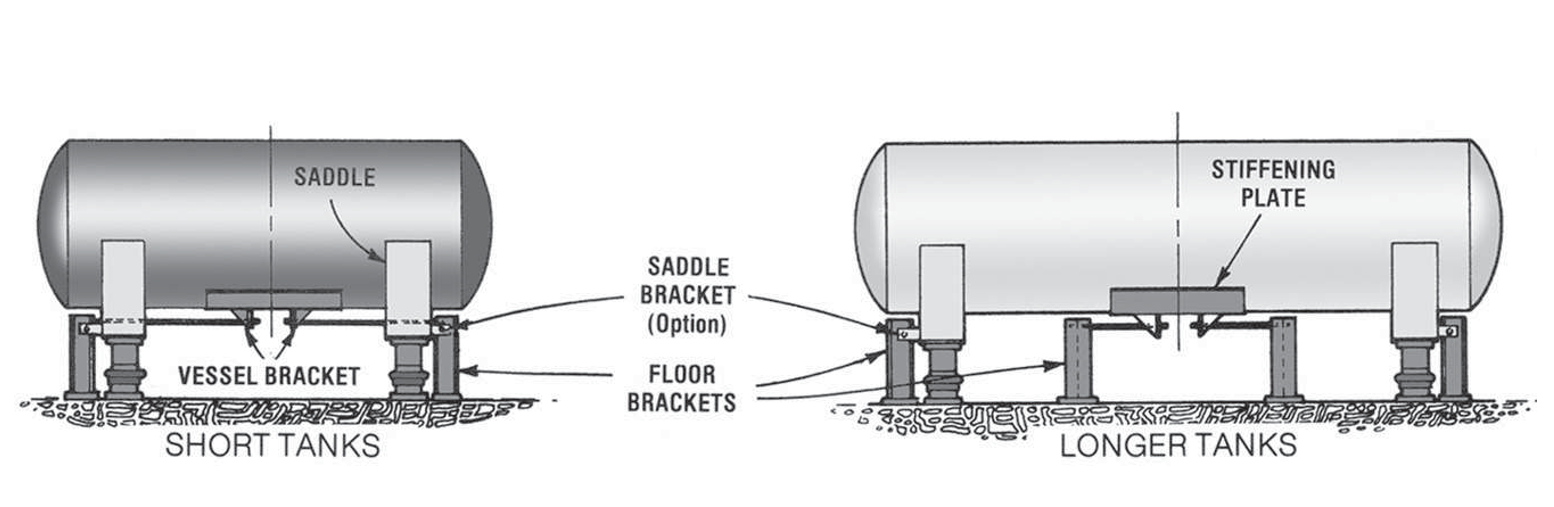

CONFIGURATION

Compression Load Cells

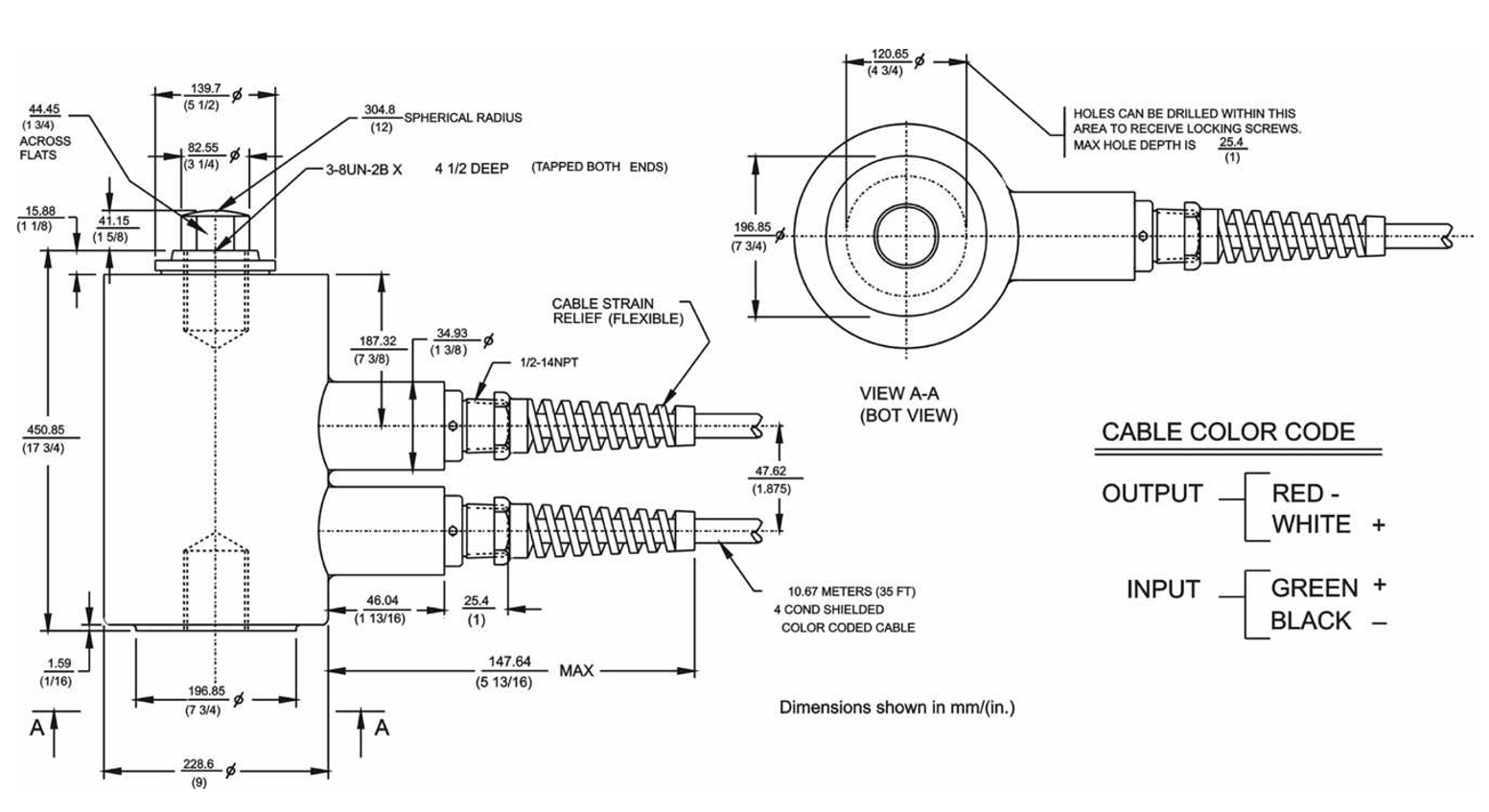

OUTLINE DIMENSIONS—DOUBLE BRIDGE—500 TO 10K POUNDS

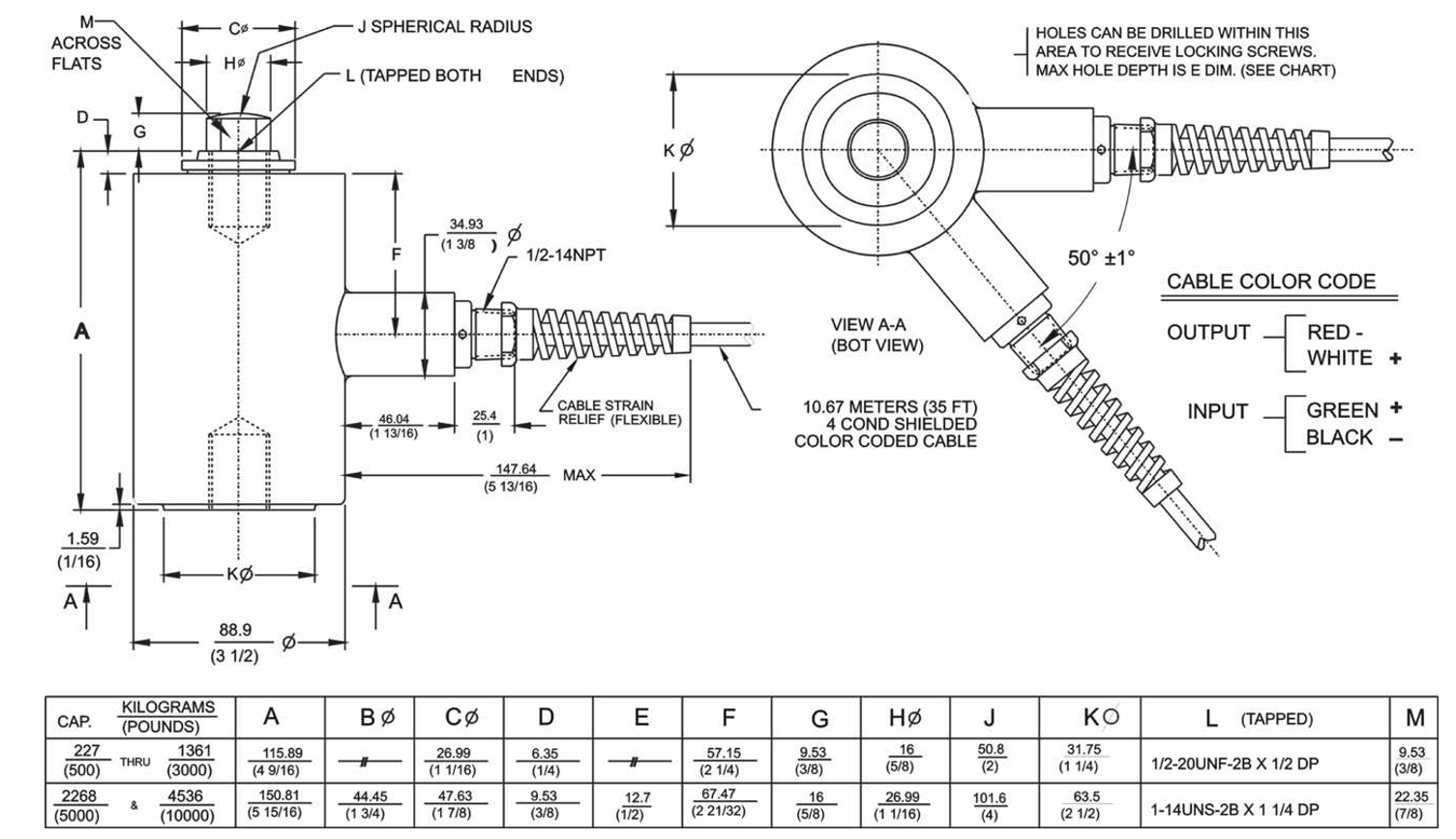

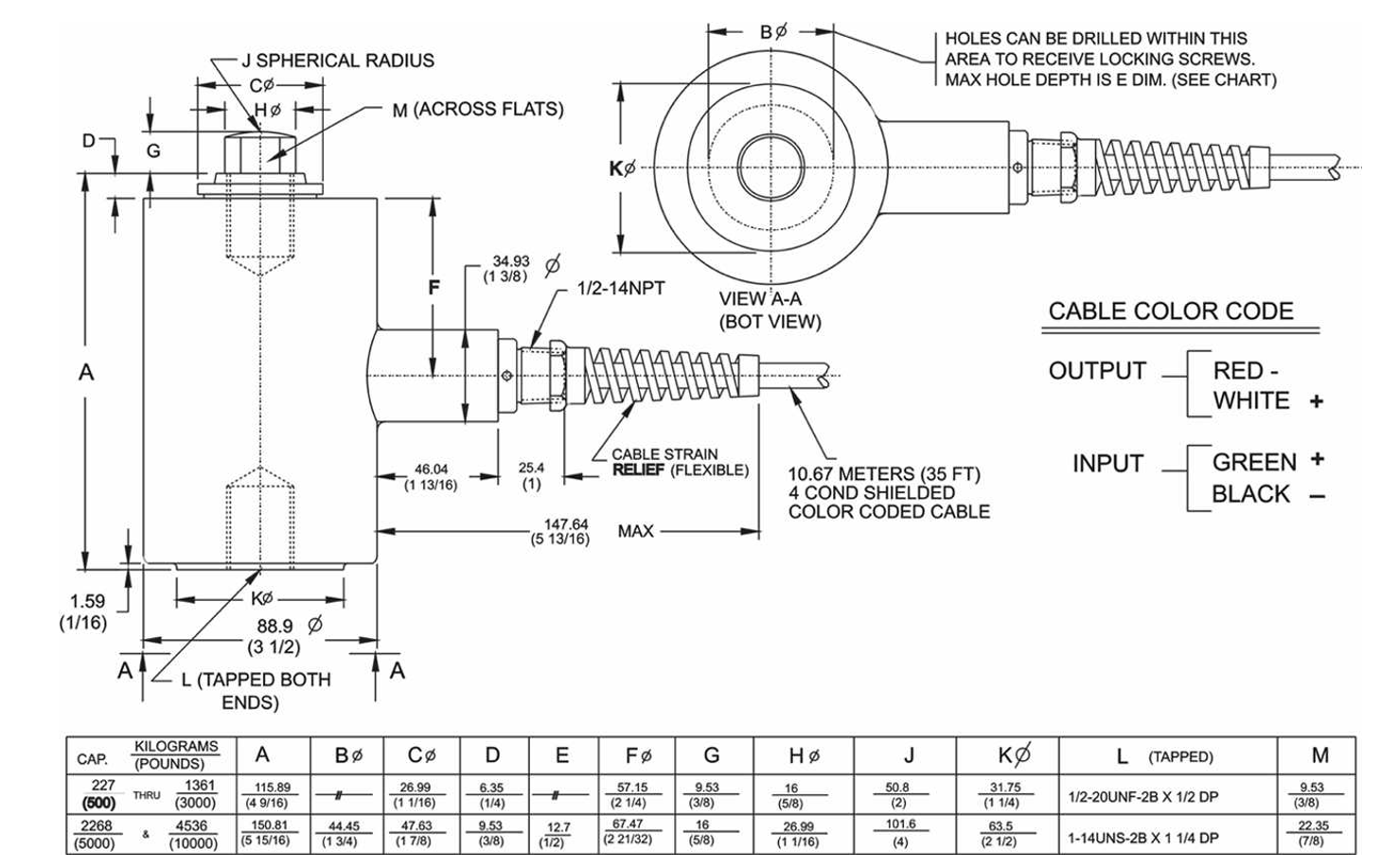

OUTLINE DIMENSIONS—SINGLE BRIDGE—500 TO 10K POUNDS

Compression Load Cells

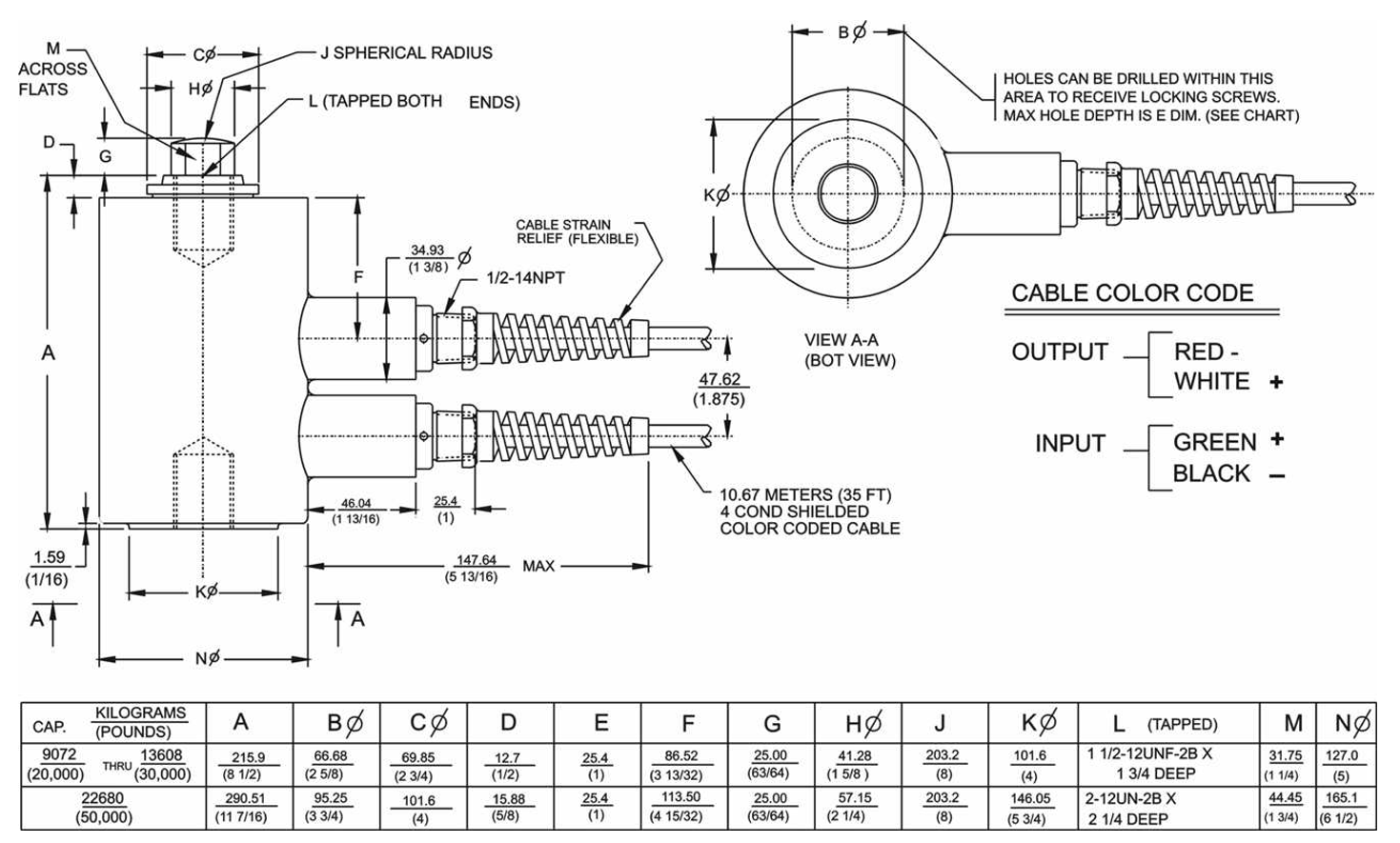

OUTLINE DIMENSIONS – DOUBLE BRIDGE – 20K TO 50K POUNDS

OUTLINE DIMENSIONS – DOUBLE BRIDGE – 100K POUNDS

Compression Load Cells

Specifications

Parameter Value
PERFORMANCE
Capacities 500, 1K, 2K, 3K, 5K, 10K, 20K, 50K, 100K lb (227, 454, 907, 1.4K, 2.27K, 4.54K, 9K, 13.6K, 22.7K, 45.4K kg)
Rated output (RO) 3.0 mV/V (±0.10%)
Repeatability 0.02% RO
Combined error 0.10% RO (500 lb), 0.07% RO (1K–100K lb)
Zero balance 1.0% RO
Creep (20 minutes) 0.03% RO
Temperature effects on zero balance 0.0015% RO / °F
Temperature effects on rated output 0.0008% Load / °F
ELECTRICAL
Recommended excitation 10 VAC-DC
Input resistance 350 Ω (±3.5)
Output resistance 350 Ω (±3.5)
Cable length 35 ft cable
Number of bridges Single or double
TEMPERATURE
Safe range –30 °F to +175 °F
Compensated range +30 °F to +130 °F
ADVERSE LOAD RATINGS
Safe overload 150% rated capacity
Ultimate overload 300% rated capacity
MATERIAL
Element High grade tool steel or stainless 17-4 steel
Cannister Low carbon steel, painted* or stainless steel
SEALING
Environmental class IP67
DEFLECTION
500 lb 0.007 in
1K lb 0.006 in
2K, 3K lb 0.005 in
5K lb 0.007 in
10K lb 0.005 in
20K lb 0.007 in
50K lb 0.010 in
100K lb 0.013 in

* Single component, waterborne polyurethane copolymer—high gloss.
BLH Nobel is continually seeking to improve product quality and performance. Speciications may change accordingly. Appearance may deviate from picture.
