BLH NOBEL / KIMD-1 Weigh Module

BLH NOBEL / KIMD-1 Weigh Module

Heavy duty weight module for high capacity weihging. The double ended shear beam design with flotaing yoke is easy to install and accurate, even when subjected to dynamic process forces and severe environmental conditions. The design allows for thermal expansion of the weigh bridge and is unsensitive to vibrations and disturbing side force. No need for stayrods etc. The KIMD-1 module can be supplied with customized mechanics foe easy installation. All KIMD load cells can be ATEX/IECEx certified for use in explosive atmospheres.

Category:
Tag:
브랜드:

설명

KIMD-1 Weigh Module

Features
Simple installation
No extra mounting detail is needed
Suitable for weighing in large size
Movable load point
Allow movement caused by thermal expansion
ATEX/IECEx approved for hazardous areas
Application: Process Weighing & Batching,Hazardous Areas
Certificates: ATEX,IECEx,SIL
Combined Error: 0.06-0.1 %
Environment Protection Class: IP67,IP66,IP65,IP54,IP20
Industry: Metal,Mining,Chemical,Pharmaceutical,Food & Beverage
Material: Plated Steel
Max Capacity: k lb: 115-450
Max Capacity: kN: 500-2000
Max Capacity: ton: 50-200
Product Type: Weigh Modules & Load Cells

OUTLINE DIMENSIONS

Weigh Module

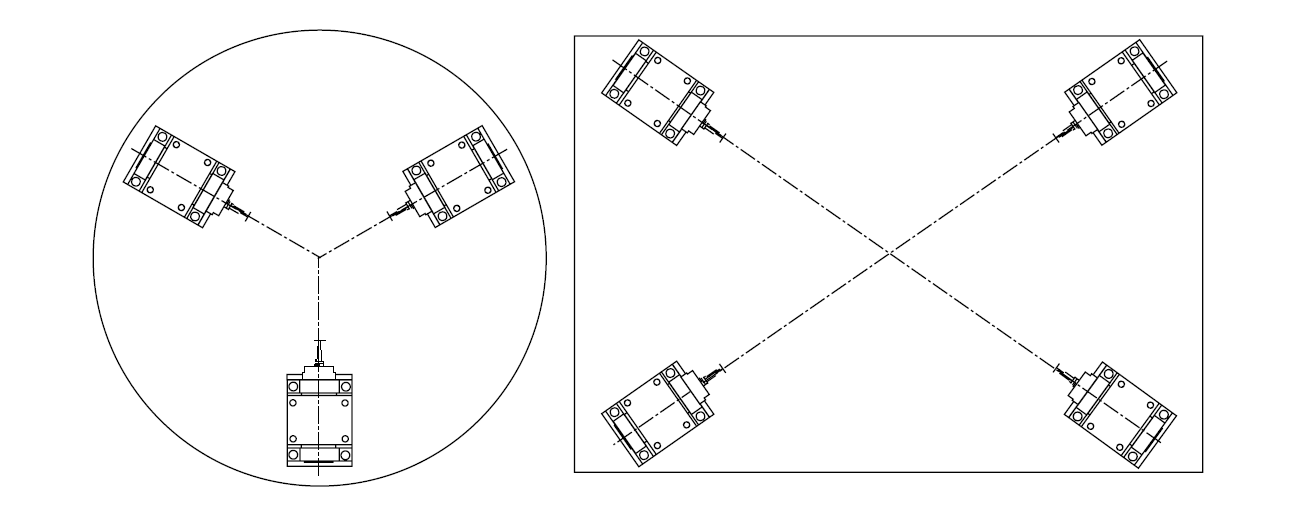

ORIENTATION OF WEIGH MODULES

Recommended weigh module orientation in order to give self locking
conditions and freedom for mechanical movements caused by temperature.

Specifications

Parameter Value
PERFORMANCE
Rated load (RL) 250, 500, 800 and 1000 kN
Combined error (terminal) ±0.1% RO
Repeatability 0.02% RO
Creep at RL after 30 minutes ±0.03% RL
Overload, safe 50% RL (1)
Overload, ultimate 100% RL (1)
Rated output (RO) 2.040 mV/V
Tolerance of RO ±0.25% RO
Zero balance ±2% RO
Tolerance of shunt calibration values ±0.25% of value (2)
TEMPERATURE
Temperature range –40 to +80 °C (+100 °C) (3)
Temperature effect on output (–10 °C to +50 °C) ±0.003% of output / °C
Temperature effect on zero balance (–10 °C to +50 °C) ±0.003% of RO / °C
ELECTRICAL
Input voltage, recommended 10 VDC or VAC
Input voltage, maximum 18 VDC or VAC
Input resistance 350 Ω ±5 Ω
Output resistance 350 Ω ±0.5 Ω
Insulation resistance at 200 VDC > 4 GΩ
Electrical connection 10 m shielded four conductor cable
MECHANICAL / CONSTRUCTION
Material Yellow chromate steel
Degree of protection IP67
APPROVALS
Certifications ATEX, IECEx certified versions available upon request
  • Referring to recommended loading case
  • See calibration sheet of the load cell
  • –40 to +100°C on demand

BLH Nobel is continually seeking to improve product quality and performance. Speciications may change accordingly.
