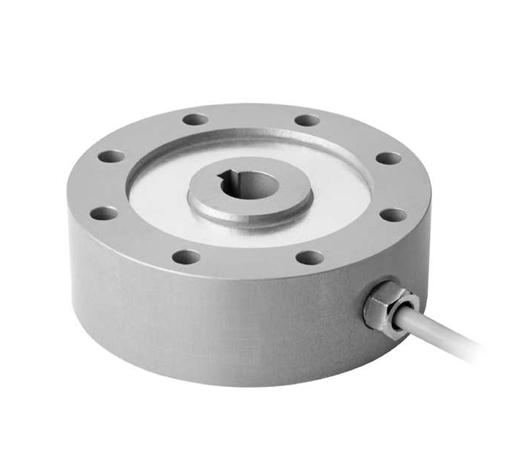

MFT Low Profile Compression Disc
FEATURES
- Capacities: 0.1, 0.2, 0.3, 0.5, 60, 200 t
- IP66 protection
- Compact size with low profile
- Alloy steel construction (low capacities 0.1, 0.2, 0.3 and 0.5 t use aluminum construction)
APPLICATIONS
- Testing machines
- Hopper / Tank / Vessel weighing
OUTLINE DIMENSIONS (100, 200, 300, 500 kg) in millimeters

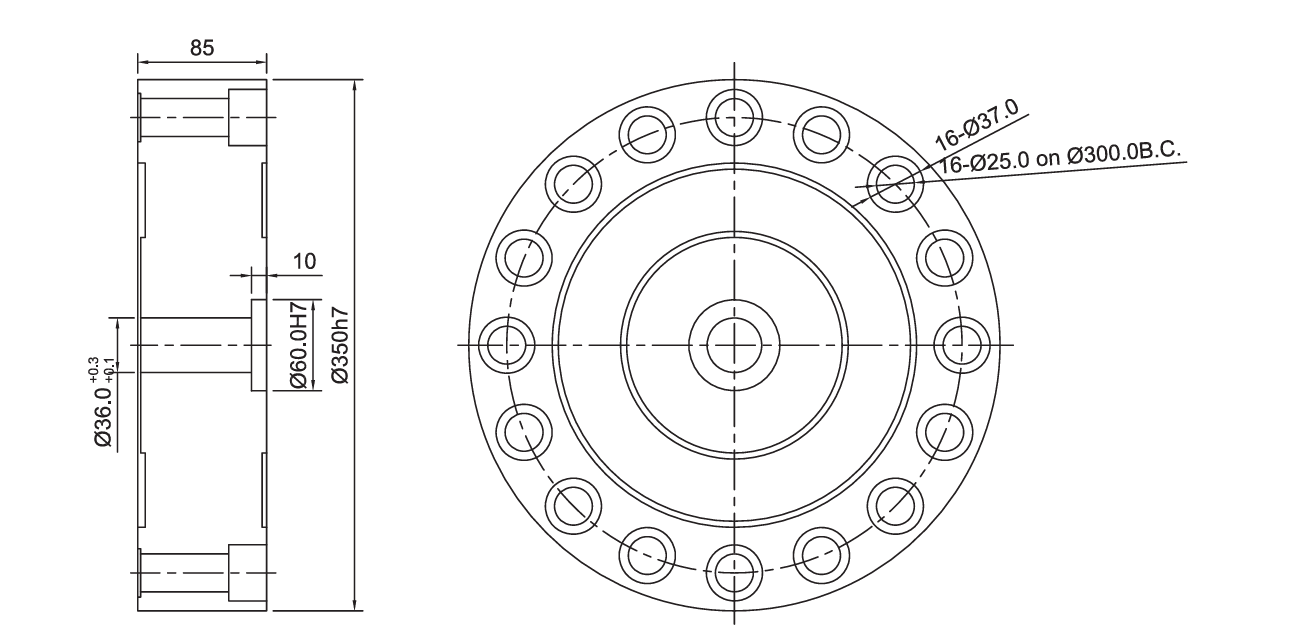

OUTLINE DIMENSIONS (60 t) in millimeters
OUTLINE DIMENSIONS (200 t) in millimeters
SPECIFICATIONS
| Parameter | Value | Unit |
|---|---|---|
| Rated capacity (Emax) | 0.1, 0.2, 0.3, 0.5, 60, 200 | t |
| Rated output (R.O.) | 2.0 | mV/V |
| Rated output tolerance | ±10.0 (0.1–0.5 t)±1.0 (60 t)±5.0 (200 t) | % of R.O. |
| Zero balance | ±1.0 (0.1–60 t)±3.0 (200 t) | % of R.O. |
| Zero return (20 min) | 0.05 (0.1–60 t) | % of applied load |
| Zero return (30 min) | 0.03 (200 t) | % of applied load |
| Temperature effect on zero | 0.0026 (0.1–200 t) | % of R.O./°C |
| Temperature effect on span | 0.0015 (0.1–60 t)0.003 (200 t) | % of R.O./°C |
| Non-linearity | 0.1 (0.1–200 t) | % of R.O. |
| Non-repeatability | 0.05 (0.1–60 t)0.02 (200 t) | % of R.O. |
| Creep error (20 min) | 0.05 (0.1–60 t) | % of applied load |
| Creep error (30 min) | 0.03 (200 t) | % of applied load |
| Deflection at rated load | <0.5 (0.1–60 t)<1.0 (200 t) | mm |
| Hysteresis error | 0.10 (0.1, 0.2, 0.3, 0.5, 200 t)0.15 (60 t) | % of R.O. |
| Compensated temperature range | –10 ~ +40 | °C |
| Operating temperature range | –20 ~ +60 | °C |
| Maximum safe overload | 150 | % of R.C. |
| Ultimate overload | 200 | % of R.C. |
| Excitation (recommended) | 10 | VDC |
| Excitation (maximum) | 15 | VDC |
| Input impedance | 1050 ±20 (0.1, 0.2 t)350 ±15 (0.3, 0.5 t)385 ±15 (60 t)410 ±10 (200 t) | Ω |
| Output impedance | 1050 ±20 (0.1, 0.2 t)350 ±15 (0.3, 0.5 t)350 ±15 (60 t)350 ±3 (200 t) | Ω |
| Insulation resistance | >5000 | MΩ |
| Cable length | 4 m (0.1–0.5 t)8 m (60 t)10 m (200 t) | m |
RO—Rated Output
RC—Rated Capacity
All speciications are subject to change without notice.
