TankMount
FEATURES
• Capacity range: 500, 1000, 2000, 5000 kg
• High-grade, welded, stainless-steel load beams
• Sealed to IP68 and IP69K standards for washdown service
• Semi-loating mounting
• OIML Certiicate of Conformance
• ATEX and cFMus approved
APPLICATIONS

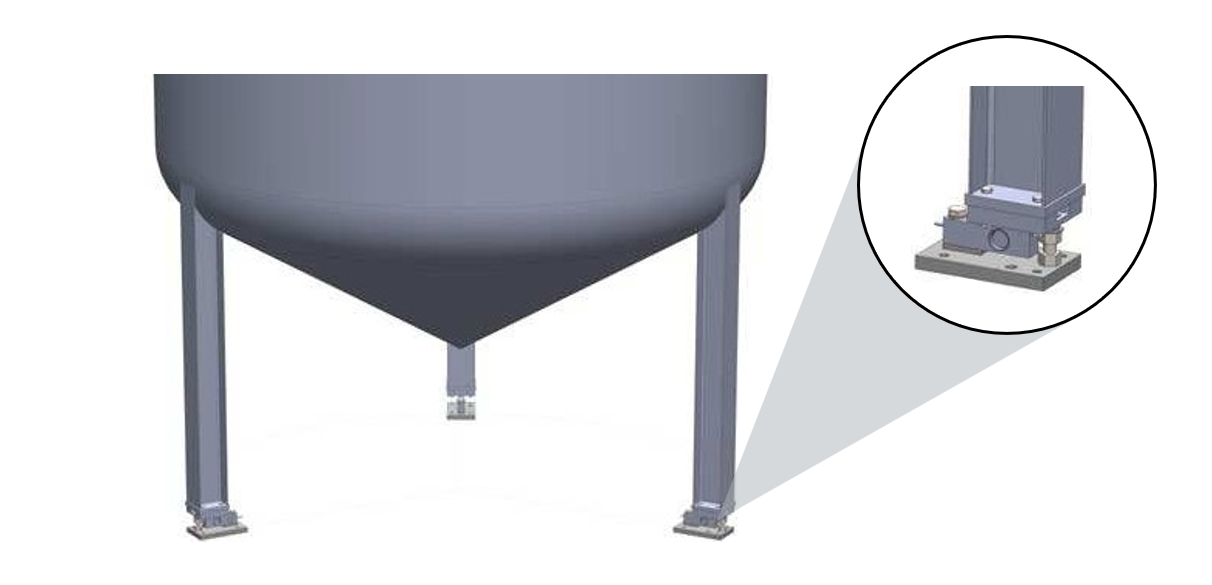

• Storage tank weighing
• Bin/hopper scale conversion
• Level system measurement
• Platform scales
CONFIGURATION
Load Cell Weigh Modules
SEMI FLOATING MODULE
Semi-Floating Modules
The semi-loating module design restricts lateral horizontal movement, but allows radial horizontal movement and a moderate degree of mounting plate angular movement to accommodate construction variances.

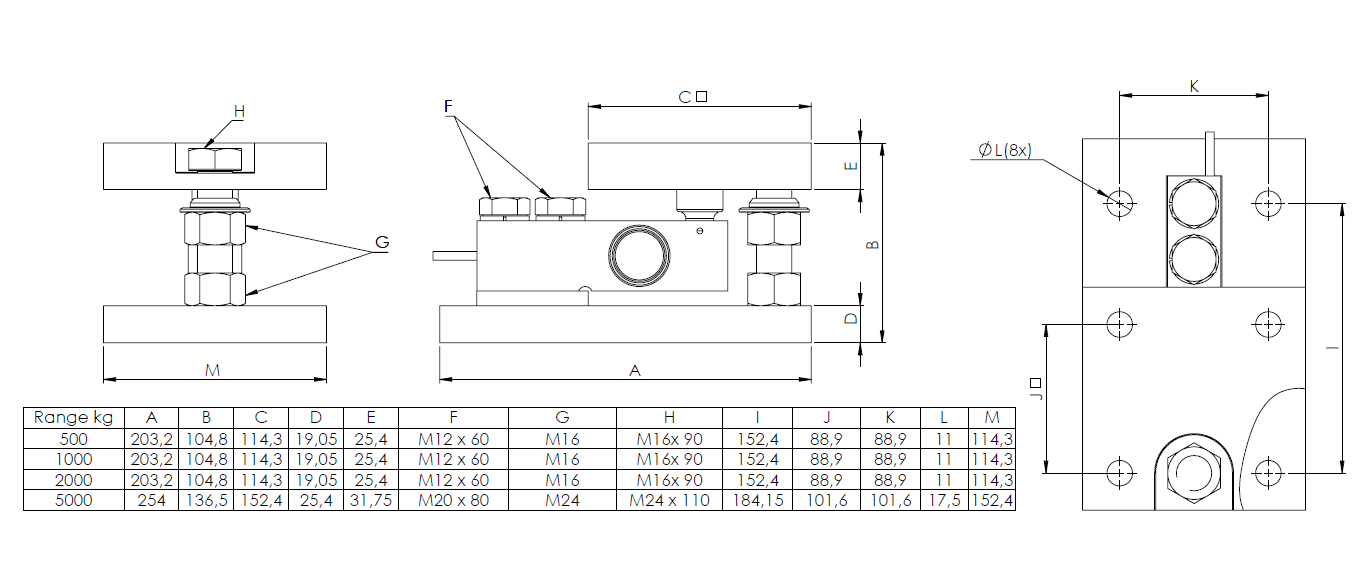

OUTLINE DIMENSIONS
Load Cell Weigh Modules
| Parameter | Value |
|---|---|
| PERFORMANCE | |
| Capacities | 500, 1000, 2000, 5000 |
| Rated output (RO) | 2.0 mV/V (±1%) |
| Repeatability | 0.01% RO |
| Combined error | 0.02% RO (beam only), 0.10% module assembly |
| Zero balance | 2.0% RO |
| Creep (30 minutes) | 0.03% RO |
| Temperature effects on zero balance | 0.0023% RO / °C |
| Temperature effects on rated output | 0.0010% RO / °C |
| ELECTRICAL | |
| Recommended excitation | 10 VDC (15 VDC max.) |
| Input resistance | 380 Ω (±10) |
| Output resistance | 355 Ω (±5) |
| Cable length | 5 m, 6 conductor cable |
| ADVERSE LOAD RATINGS | |
| Safe overload | 150% rated capacity |
| Safe sideload | 100% rated capacity |
| Ultimate overload | 300% rated capacity |
| MATERIAL | |
| Load beam (Plated) | 17-4 PH stainless steel |
| Load beam (Stainless) | 17-4 PH stainless steel |
| Load button (Plated) | 17-4 PH stainless steel |
| Load button (Stainless) | 17-4 PH stainless steel |
| Bases and load plates (Plated) | Zinc plated steel |
| Bases and load plates (Stainless) | 304 stainless steel |
| Beam spacer (Plated) | Zinc plated steel |
| Beam spacer (Stainless) | 304 stainless steel |
| Locating washer | 304 stainless steel |
| SEALING | |
| Load beam | IP68 and IP69K |
| TEMPERATURE | |
| Safe temperature | -30 to +80 °C |
| Compensated range | -10 to +40 °C |
BLH Nobel is continually seeking to improve product quality and performance. Speciications may change accordingly.
