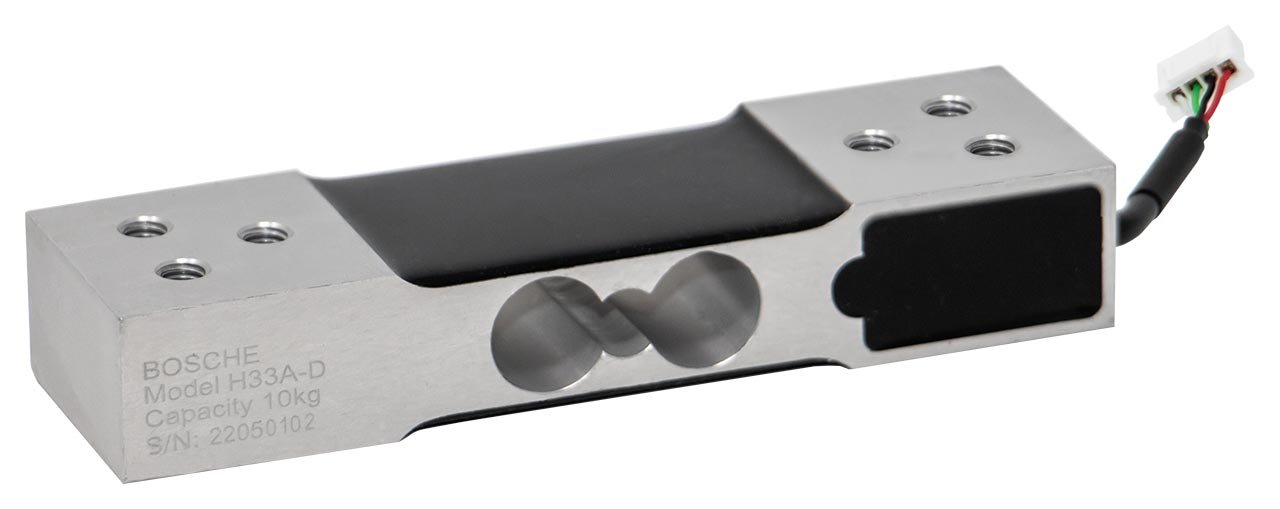

Digital Single point load cell H33A-D

The H33A-D is a digital load cell made of aluminum. An integrated 24-bit signal amplifier in the cell directly converts incoming analog measurement values (mV/V) into a digital signal and outputs it. This saves costs for specialized external evaluation electronics for conversion and simplifies integration.

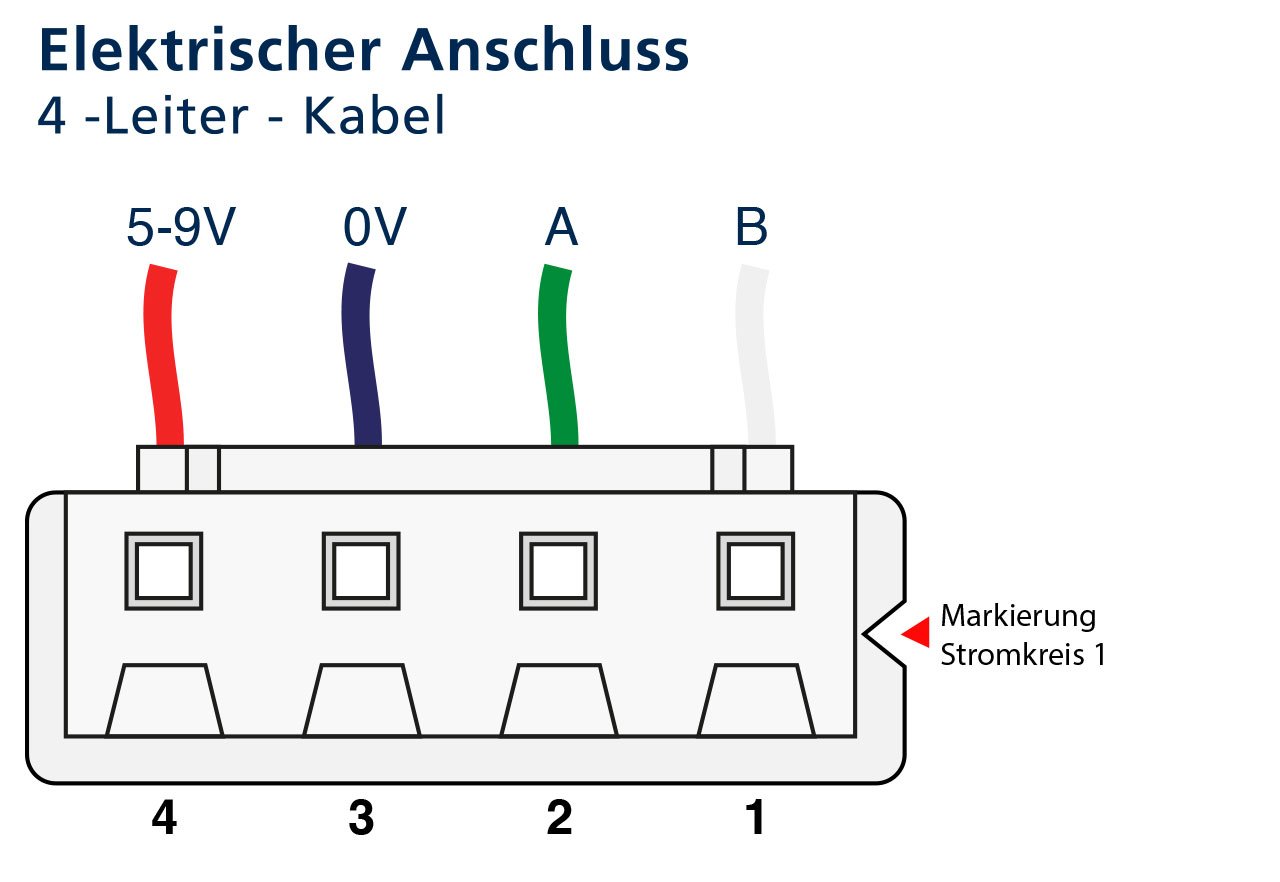

Communication is easily achieved through an RS-485 half-duplex interface. Each load cell can communicate separately and independently with the user through the digital output.

The digital load cell H33A-D also provides highly precise and reproducible measurement results even during long-term use. Thanks to its IP65 protection rating, the aluminum measuring body can be used in humid or dusty environments.

Features

• Material: Aluminum
• Rated Load: 10, 20, 40 kg
• Easy communication via RS-485 half-duplex
• Integrated 24-bit A/D converter in the load cell for precise weight values
• Construction: The measuring element is encapsulated, Protection class: IP65
• Compensated corner load errors
• Max. platform size: 250×400 mm
• Quick integration into existing networks
• Especially robust for tough continuous use in the industrial sector

Application Area

• Shop fitting
• Self-service shelves
• Inventory applications
• Integratable into shelves, racks, or industrial vending machines
• Special machine construction

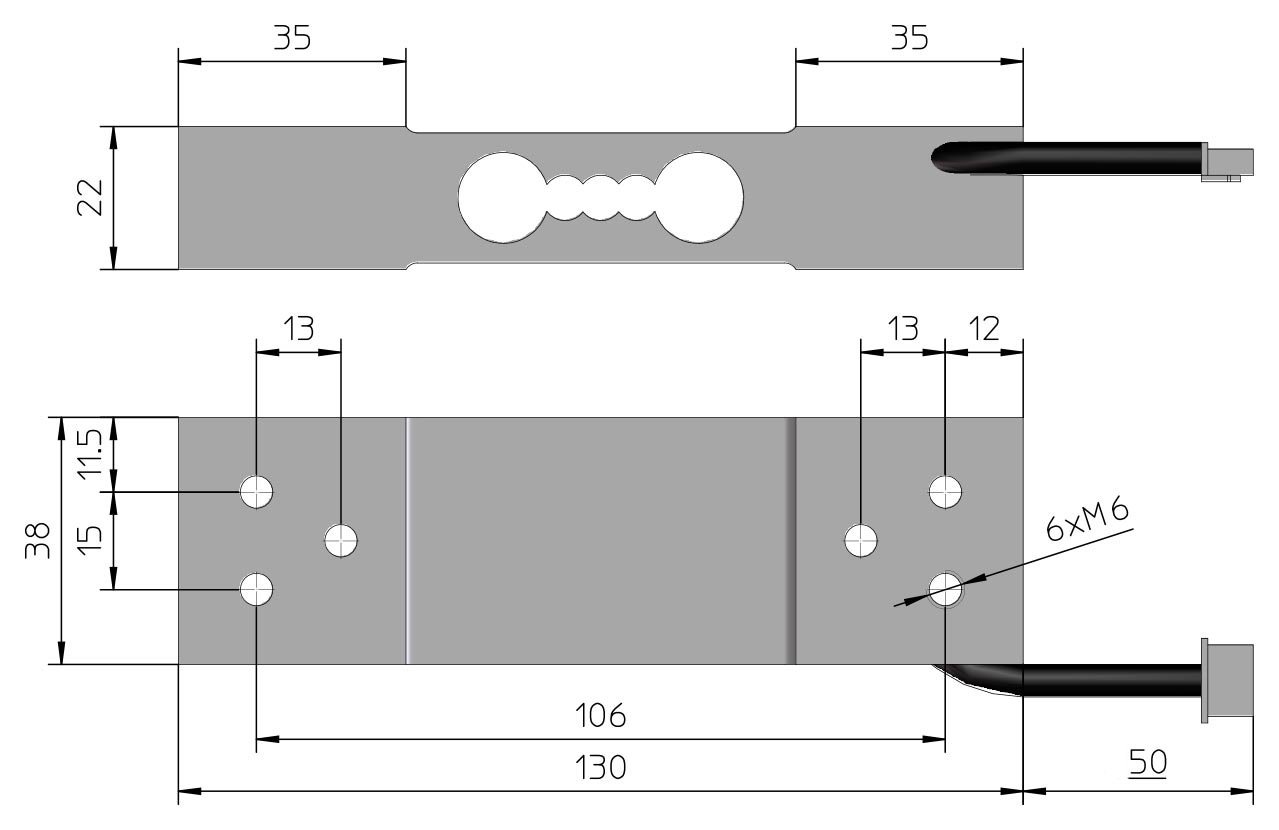

Drawing

Load introduction must not occur on the side of the cable connection, as it leads to a lateral force component.
