Double Shear Beam load cell D51S

The D51S is a double shear beam load cell with parallel load input from high quality alloy tool steel. It is a heavy duty load cell for on board weighing in trucks and vehicles. The load cell D51S is a load cell with a high performance potting for superior environmental protection. It is primer painted for use in harsh industrial applications. The load cell is laser welded and meets the requirements of protection class IP65.

Area of application

On board vehicle weighing systems – On board weighing, such as refuse collection trucks and tipper trucks, both rigid and trailer forms. “On board” weighing system to prevent overloading of vehicles. To accommodate pedestals or for use in test benches.

Features

• Material: alloy steel, nickel-plated
• Capacity: 10.000 – 30.000 kg
• Design: The measuring element is laser-welded
• Protection class: IP65
• Easy to install
• Rugged for off-road use
• Compatible with other manufacturers

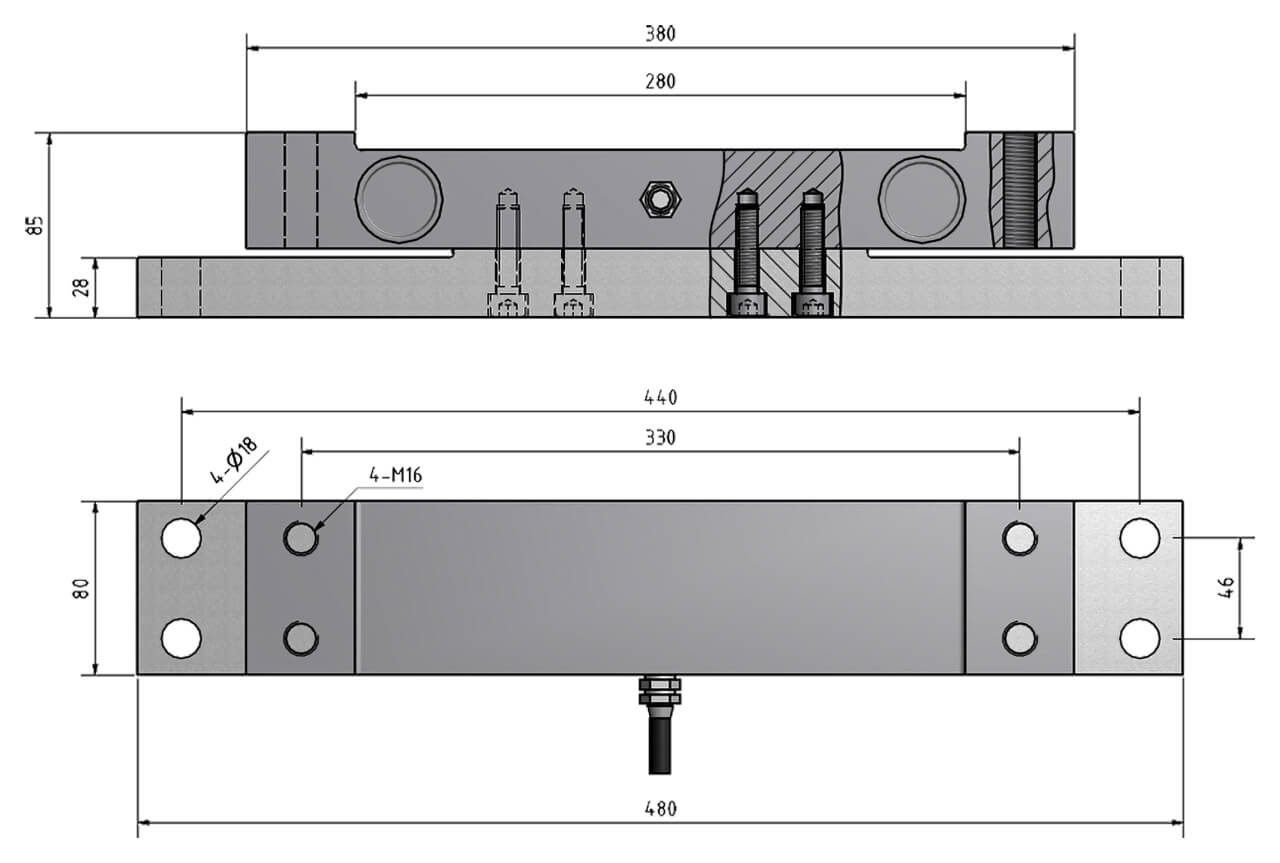

Drawing
