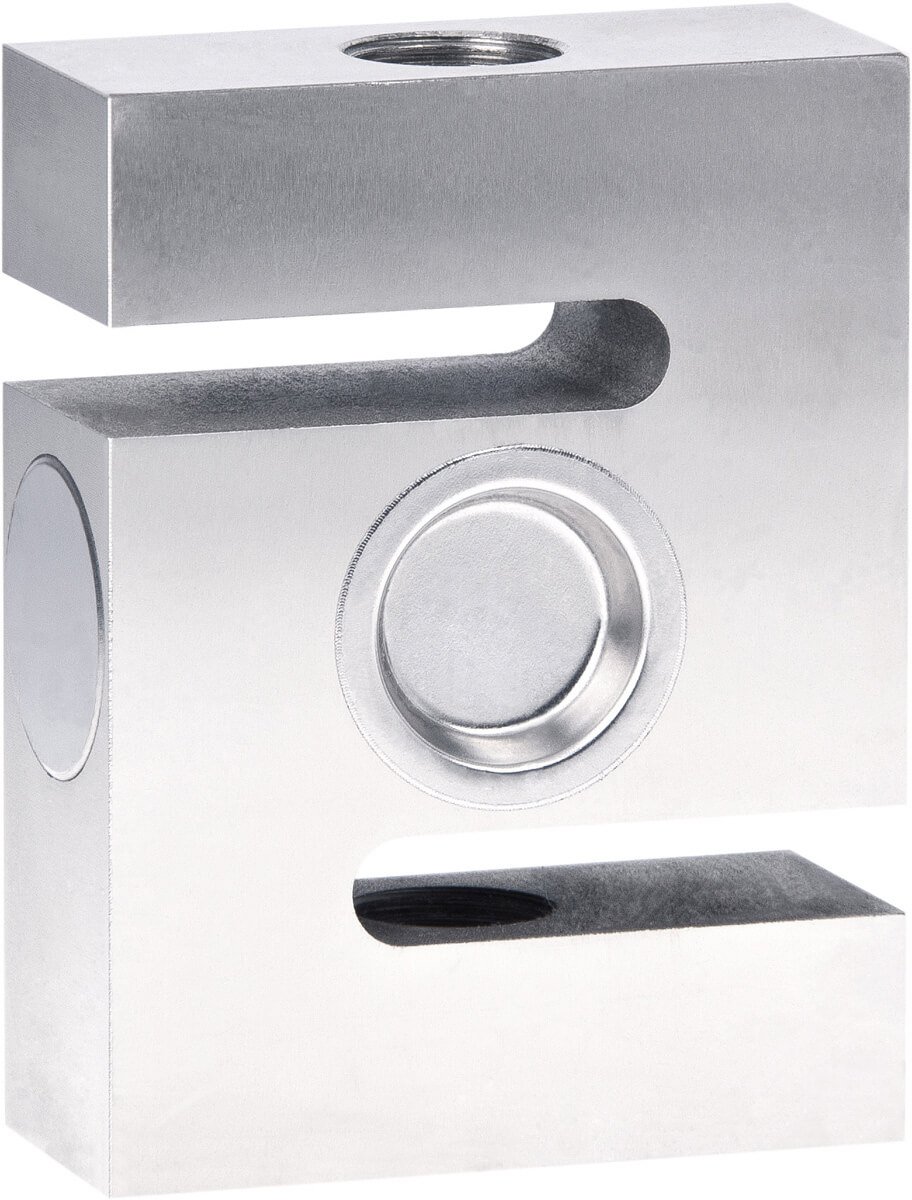

S-Type load cell S21S

The S-type load cell S21S was designed specifically for measuring tensile and pressure forces. A central coil in the upper and lower part of the load cell ensures an optimal transmission of force in the tensile and pressure direction. The S-type load cell is made of alloyed tool steel and is characterized by high accuracy and linearity. The load cell S21S gives extremely accurate reproducible results, over a long term even in harsh industrial environments. The load cell is laser-welded and meets the requirements of protection class IP65. By simple integration options and a good dynamic behavior, these load cells are often offered as force transducers and calibrated in Newtons.

Typical Application

Hybrid scales, overhead track scales, crane scales, Suspended Hoppers- and Tank Scales and weighing systems. Typical application also BIG-BAG Scales and process weighing applications. Force measurements, material testing and the monitoring of cable tension in lift and cranes to prevent overload. The S-cells are also frequently offered as a force transducer in Newtons calibrated

Features

• Material: Nickel plated alloy steel construction
• Capacity: 2.000 – 5.000 kg
• Protection class: IP65
• Design: The measuring element is hermetically sealed and laser-welded
• Robust design for harsh industrial environment
• Particularly robust for heavy duty industrial use

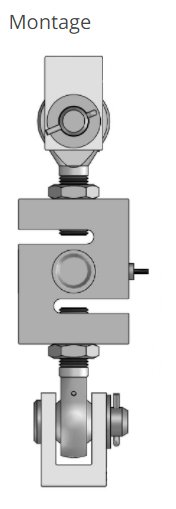

Mounting

Traction accessories with ball joint heads

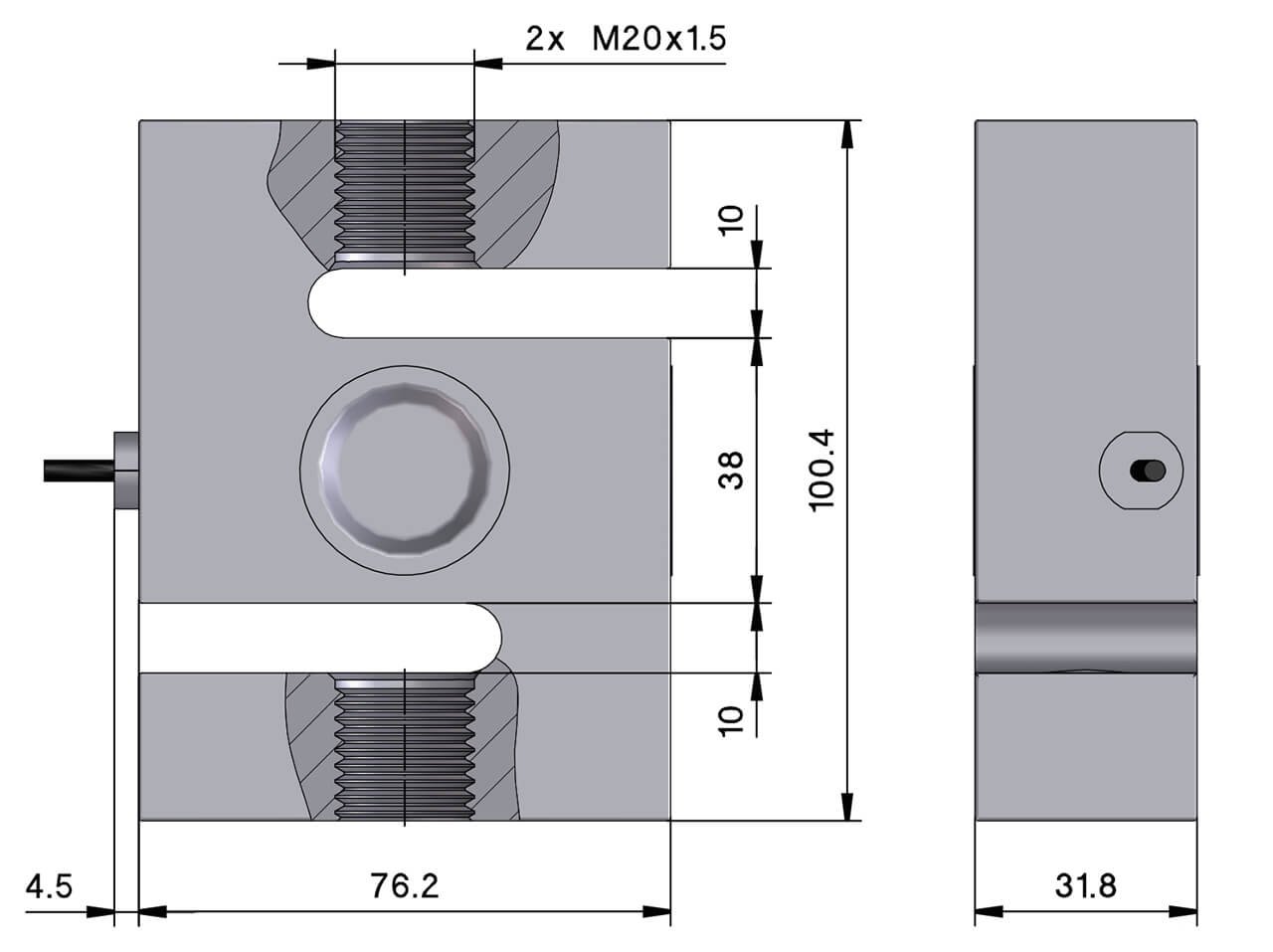

Drawing

All specifications in mm | Subject to technical changes

Versions
