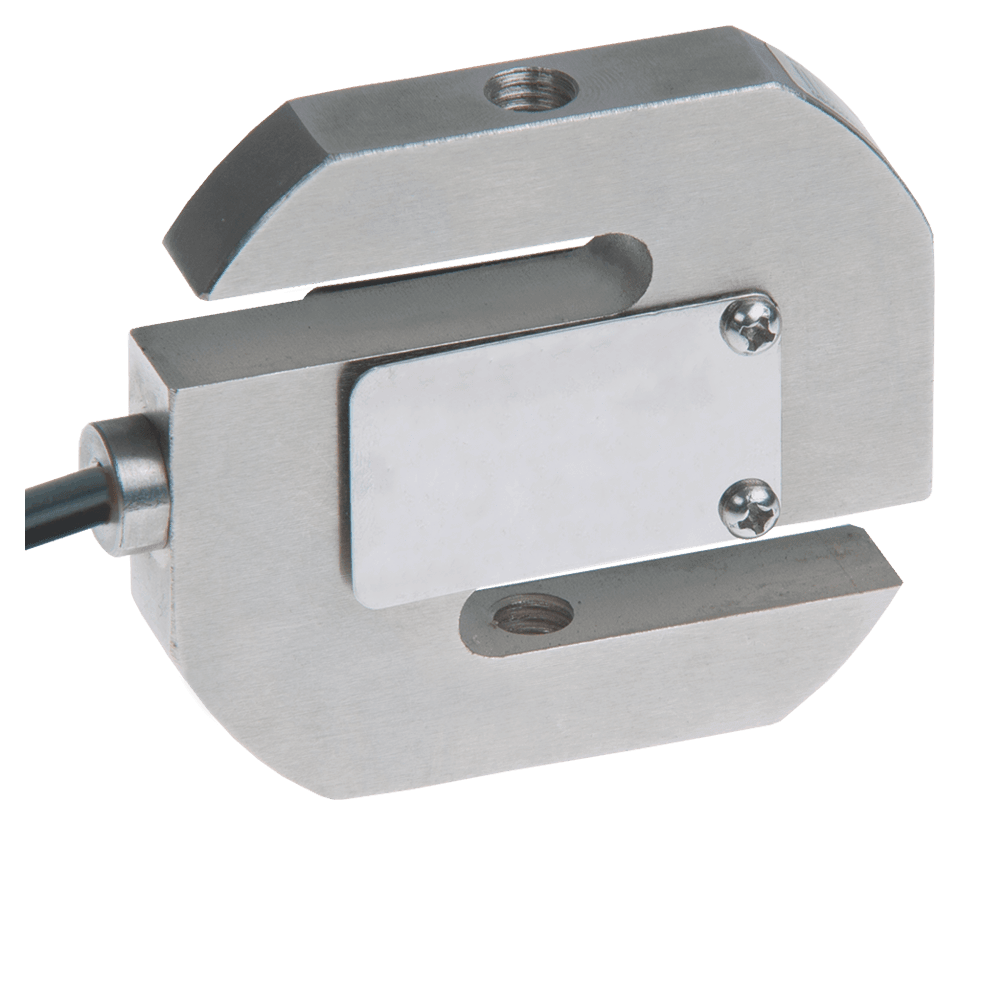

S-Type load cell S40S

The S-type load cell S40S was designed specifically for measuring smaller tensile and pressure forces. A central coil in the upper and lower part of the load cell ensures an optimal transmission of force in the tensile and pressure direction.
The S-type load cell is made of stainless steel and is characterized by high accuracy and linearity.
The load cell S40S gives extremely accurate reproducible results, over a long term even in harsh industrial environments.
The load cell is potted and meets the requirements of protection class IP65. By simple integration options and a good dynamic behavior, these load cells are often offered as force transducers and calibrated in Newtons.

Typical Application

Hybrid scales, hanging scales and process weighing applications. Force measurements, material testing and the monitoring of cable tension in lift and cranes to prevent overload.

Features

• Material: Alloyed steel
• Capacity: 20-75 kg
• Design: The measuring element is potted and has trimmed output
• Protection class: IP65
• Load introduction by symmetrical tapped holes at the top and bottom of the load cell
• Particularly robust for heavy duty industrial use
• Compatib


  Drawing



  Load	L	D
  20 – 75 kg	12 mm	M8

  All specifications in mm | Subject to technical changes

  Versions

  Type	Nominal load, Emax	Accuracy class
  S40S-G3-0020	20 kg	0,03
  S40S-G3-0030	30 kg	0,03
  S40S-G3-0050	50 kg	0,03
  S40S-C3-0075	75 kg	0,03
