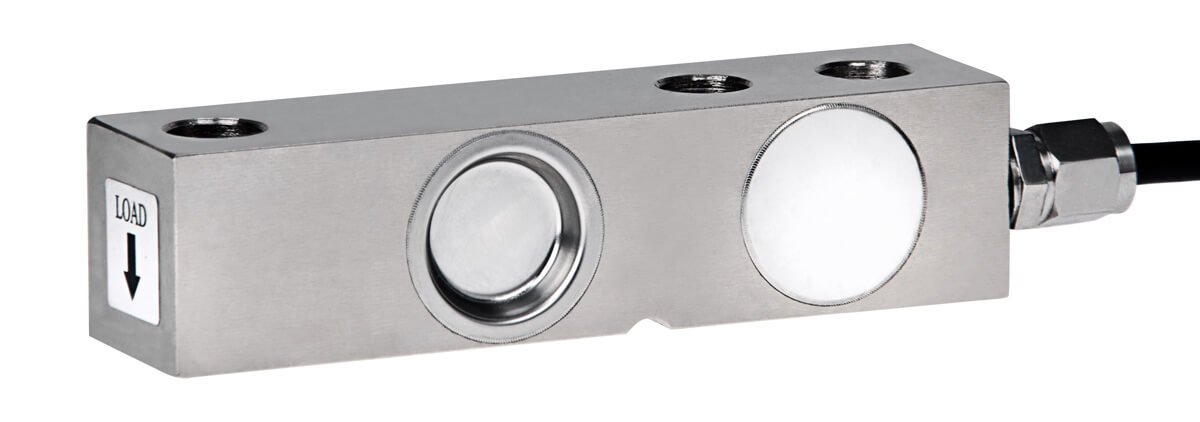

The K30S single ended shear beam type load cells are one of the widely used sensors in the field of weighing technology. The load cells are manufactured from alloy steel nickel plated and characterized with high accuracy and linearity.
These load cells are approved to OIML R60 for 3000 d and guarantee accurate and reproducible results over a long term in harsh industrial environments.
The current calibration output ensures easy and accurate parallel connection of multiple load cells, which removes the need for corner load adjustment.
The K30S load cells are laser-welded and meets the requirements of protection class IP65. The hermetically sealed enclosure allows operation even under harsh operating conditions.

Typical Application

Plattform scales, Floor scales, Overhead track scales, Silo, Hopper and Tank Scales and weighing systems, Pallet truck weighing, Big-Bag Scales, Filling and Bagging Machines, Force and Torque Measurements in the test machines and Industrial Automation.

Features

• Material: alloy steel nickel plated
• Capacity: 500 – 10.000 kg
• Accuracy class C3, Y= 10.000
• Approved to OIML R60 up to 3000 d
• Protection class: IP65
• Design: The measuring element is hermetically sealed and has a calibrated output current
• Robust design for harsh industrial environment
• Low profile with load introduction by partially threaded through hole
• Compatible with other sources

Mounting

Load application / modules / installation aids for the load cells

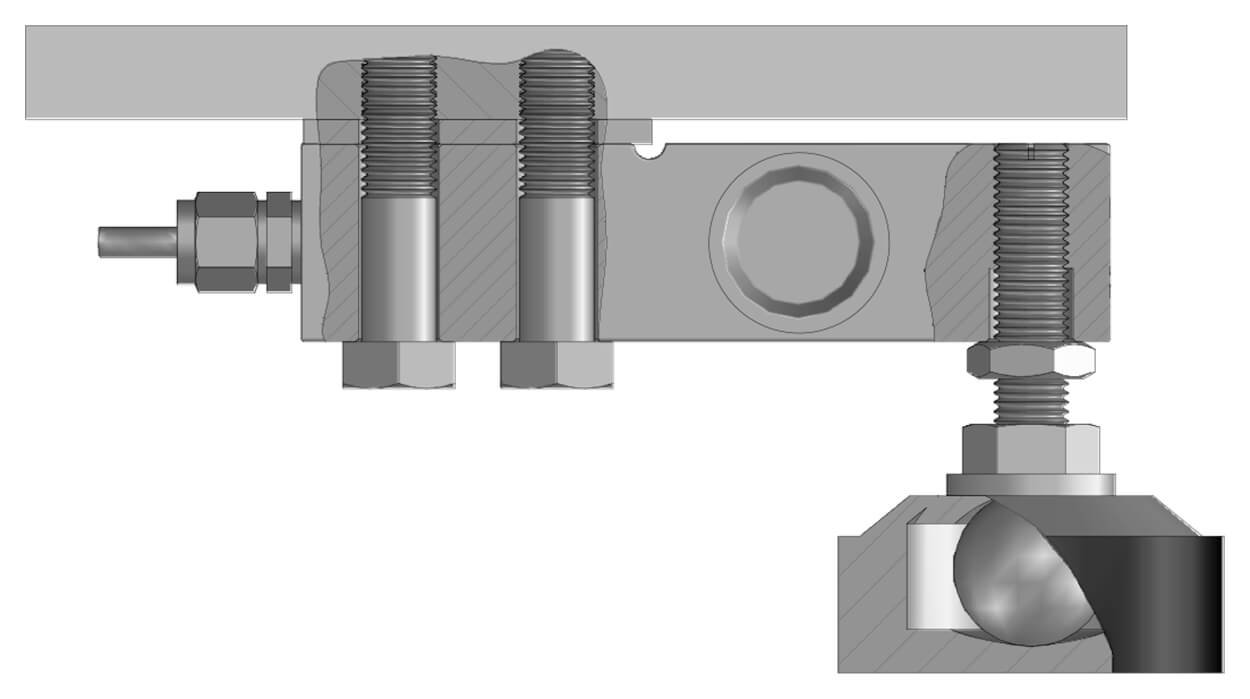

Simple installation of the shear force sensor through a semi-continuous thread in the load bore, where the force is introduced via a height-adjustable rubber-metal base with a ball head..

Drawing

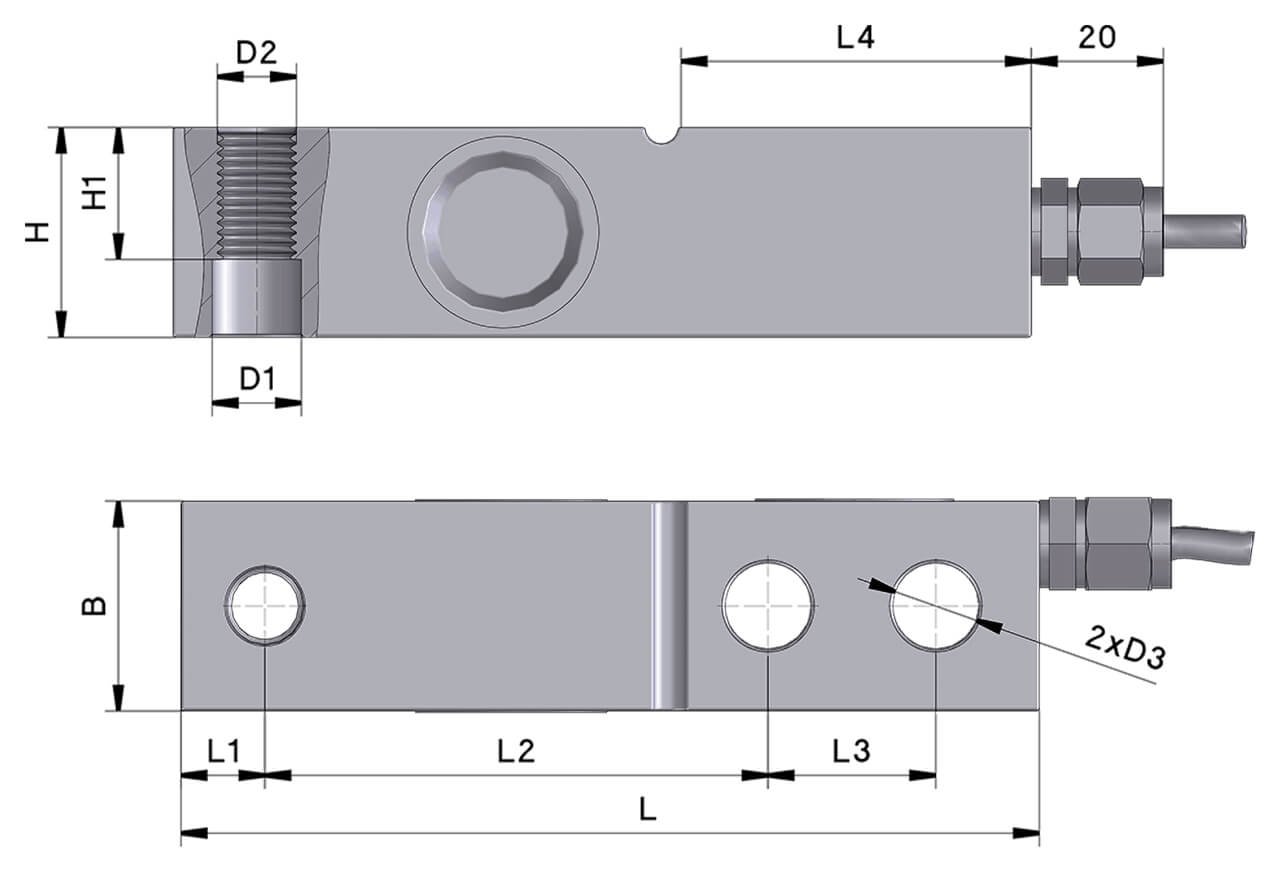

0,5 – 2 t:

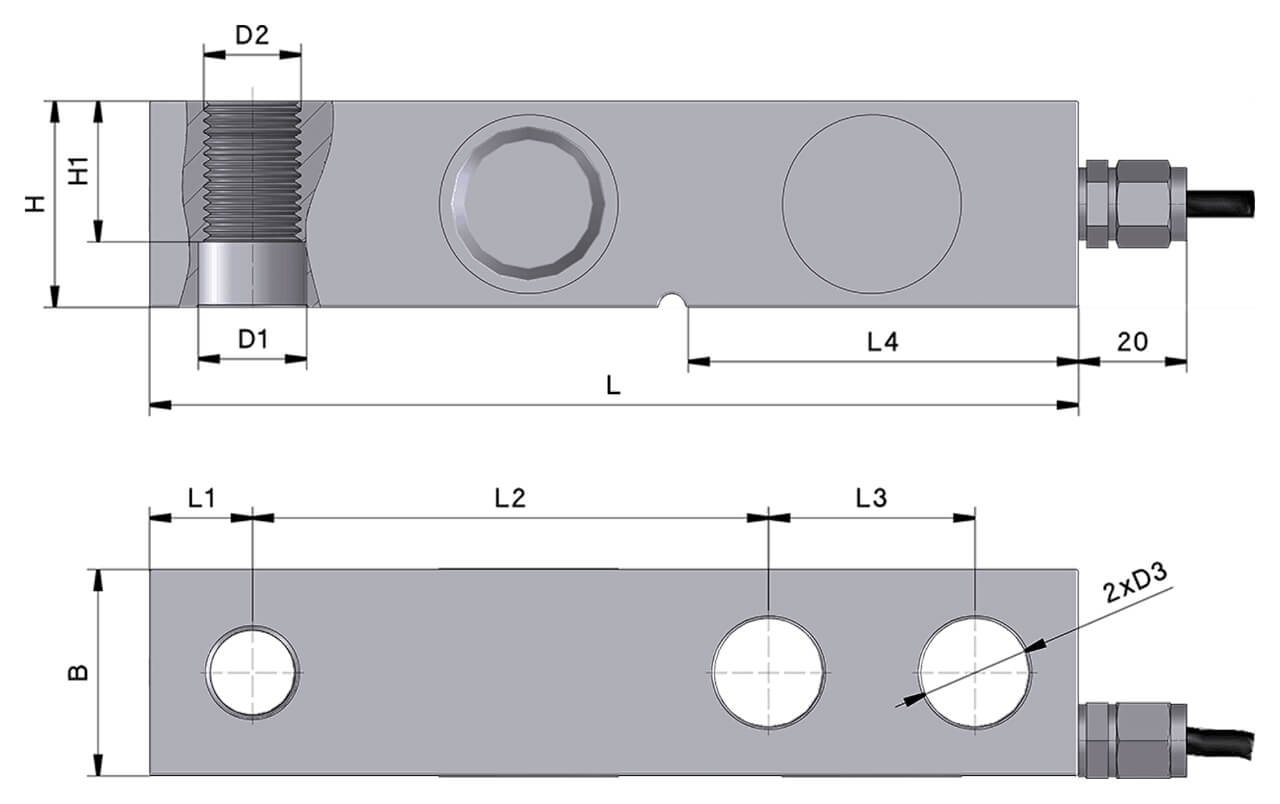

3 – 10 t:

Easy installation of the shear force sensor by a semi-continuous thread in the last hole, where the force is on a height-adjustable foot with ball head.

Versions
