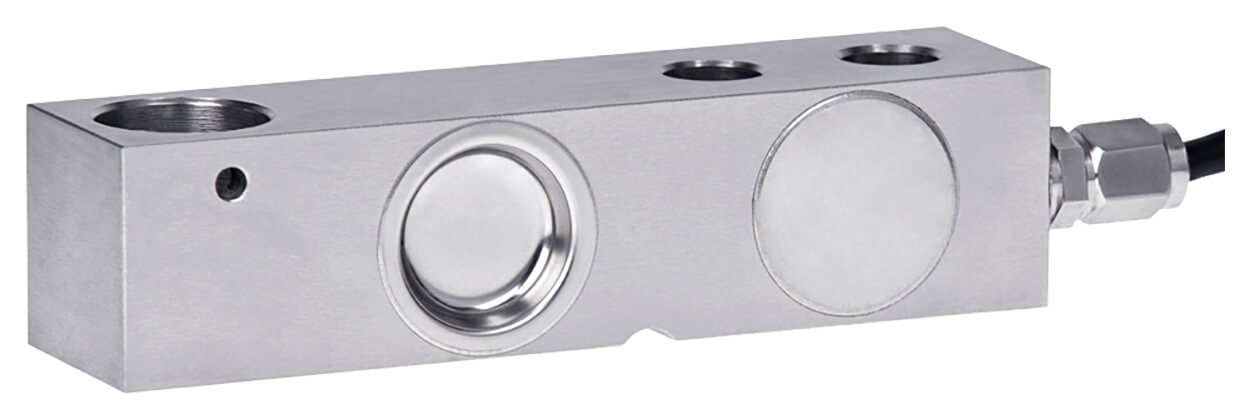

Shear beam load cell K40N

The K40N Shear Beam Load Cells are one of the most widely used sensors in the field of weighing technology. The load cells are manufactured from stainless steel and characterized with high accuracy and linearity. These load cells are approved to OIML R60 for 3000 d and guarantee accurate and reproducible results over a long term in harsh industrial environments. The current calibration output ensures easy and accurate parallel connection of multiple load cells, which removes the need for corner load adjustment. The load cell is laser-welded and meets the requirements of protection class IP65. The hermetically sealed enclosure allows operation even under harsh operating conditions.

Typical Application

Platform scales, Floor scales, Silo, Hopper and Tank Scales and weighing systems, Big-Bag Scales, Filling and Bagging Machines, Force and Torque Measurements in the test machines and Industrial Automation

Features

• Stainless steel construction
• Capacity: 500-2500 kg
• Accuracy class C3, Y=10.000
• Approved to OIML R60 up to 3000 d
• Protection class: IP65
• Design: The measuring element is hermetically sealed and has a calibrated output current
• Robust design for harsh industrial environment
• Low profile with unique load introduction by blind loading hole
• Compatible with other sources

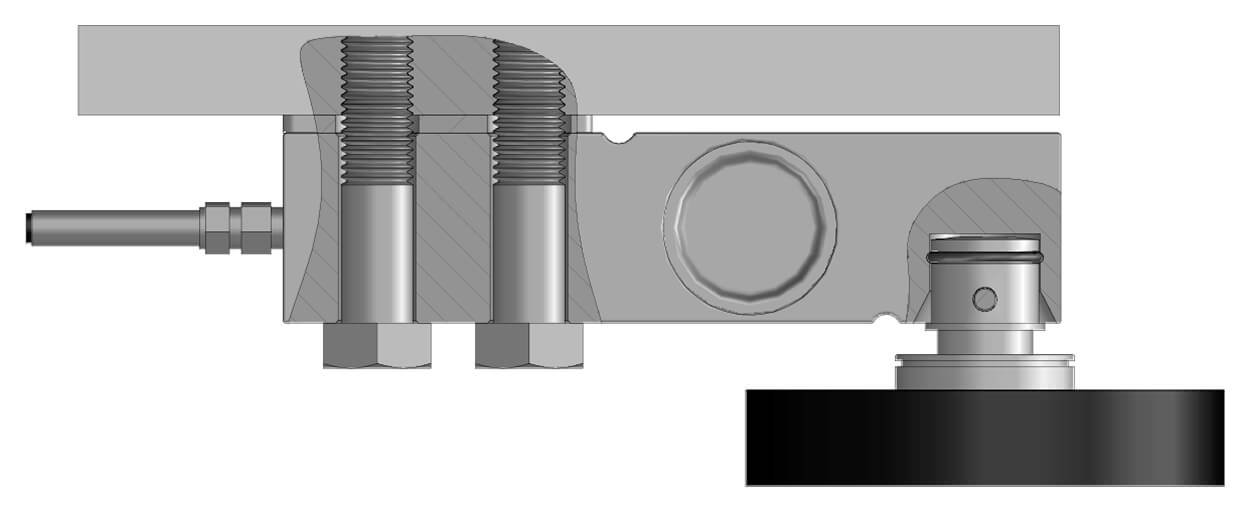

Mounting

Load application / modules / installation aids for the load cells

Easy installation of the shear force sensor by an optimal power transmission by means of a blind hole.

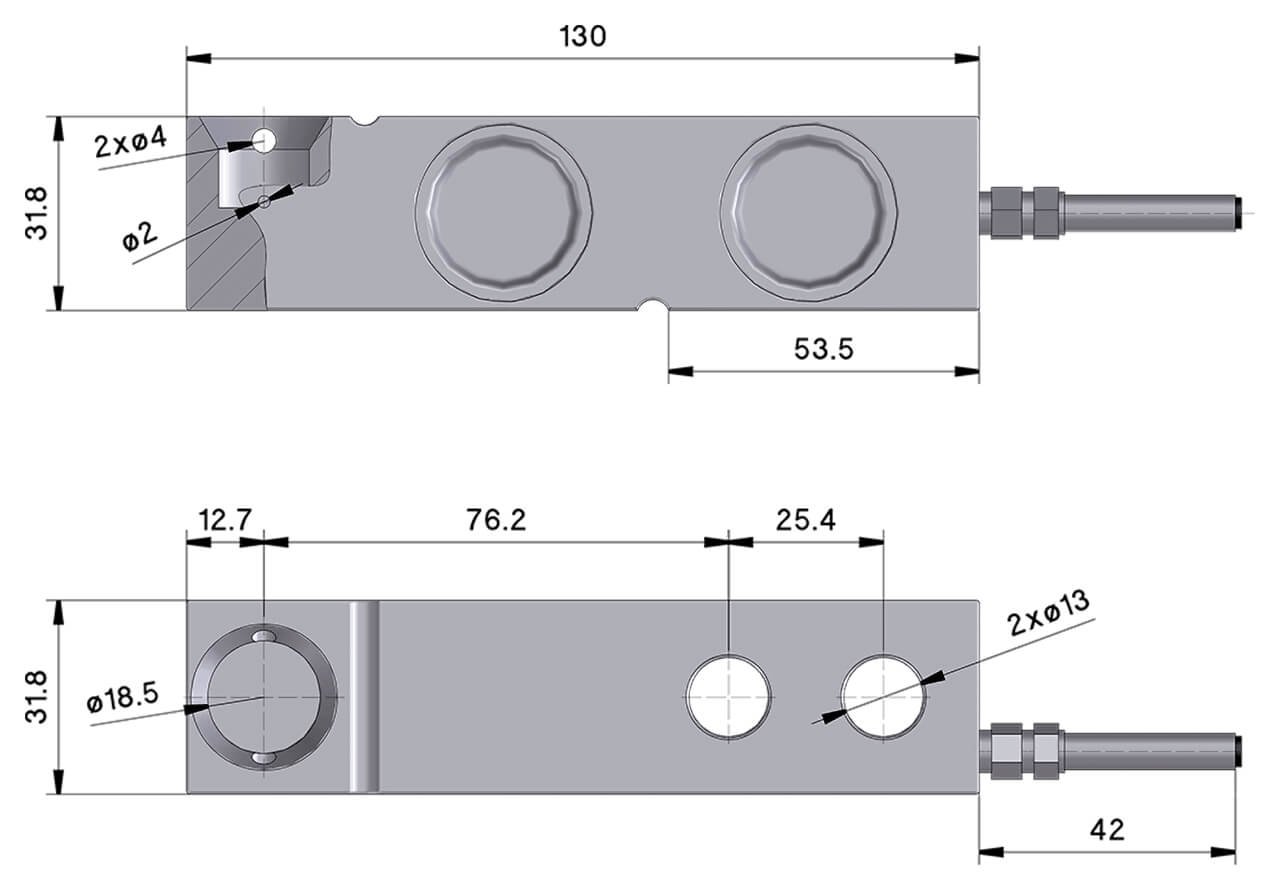

Drawing

Versions
