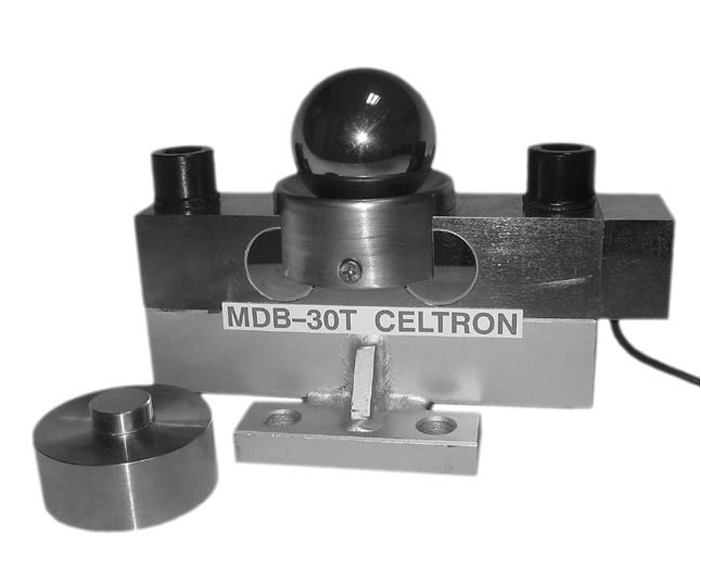

MDBD Digital Miniature Double-Ended Beam

FEATURES

  • Easy corner compensation of the weighbridge
  • Capacities: 10–30T
  • Digital output via RS485 or RS422 interface
  • High side load tolerance
  • Electroless nickel-plated alloy tool steel
  • Surge protection optional
  • Extensive internal diagnostics
  • External resolution: 240,000 counts
  • Internal resolution: 1,000,000 counts
  • Maximum transmission distance: 1200 m

APPLICATIONS

  • Truck / Rail scales
  • Silo / Hopper / Tank weighing

OUTLINE DIMENSIONS in millimeters

SPECIFICATIONS

PARAMETER VALUE UNIT
Standard capacities (Emax) 10, 20, 25, 30 ton
Rated output — R.O. 240,000 counts
Rated output tolerance 200 ±counts
Zero balance 200 ±counts
Combined error 0.0200 ±% of rated output
Non-repeatability 0.0200 ±% of rated output
Creep error (30 minutes) 0.03 ±% of rated output
Creep error (20–30 minutes) 0.01 ±% of rated output
Zero return (30 minutes) 0.03 ±% of rated output
Temperature effect on span 0.015 ±% of rated output / 10°C
Temperature effect on zero 0.026 ±% of rated output / 10°C
Compensated temperature range –10 to +40 °C
Operating temperature range –40 to +80 °C
Storage temperature range –40 to +90 °C
Minimum dead load 0 % of Emax
Safe dead load 150 % of Emax
Ultimate load 300 % of Emax
Excitation voltage 12.5 to 18 VDC
Recommended excitation voltage 15 VDC
Maximum current consumption 80 mA
Start up current 150 mA
Insulation resistance >5000 MΩ
Element material Alloy steel –
Sealing (DIN 40.050/EN60.529/IEC 529) IP67 –
Signal update per second 25 –
Baudrate 9600 Bits/s
Transmission type Asynchronous serial –
Start bits 1 –
Data bits 7 –
Stop bits 1 –
Parity Odd –
Maximum transmission cable length 1200 m
Data transmission interface RS422 (4 wires) / RS485 (2 wires) –

All specifications subject to change without notice.
