CELTRON / SQB Single-Ended Beam

CELTRON / SQB Single-Ended Beam

The Model SQB is a single-ended shear beam load cell designed for multiple cell applications, such as low proile platform or small tank scales, when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading. The Models SQB and SQB-F are constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage.

Category:
Tag:
브랜드:

설명

SQB Single-Ended Beam

FEATURES

  • Capacities: 500 to 20k lbs, 250 to 5000 kg
  • High side-load tolerance
  • Electroless nickel-plated-alloy tool steel
  • NTEP Class III 5000M for SQB, SQB-F and SQB-SS (available from 1k to 10k lbs)
  • SQB-SS stainless steel construction
  • Optional – FM approval available
  • EDOC option available; product appearance may differ from photograph due to coating

APPLICATIONS

  • Truck / Rail scales
  • Silo / Hopper / Tank weighing
  • Platform scales (multiple load cells)
  • Pallet truck scales
  • Packaging machines

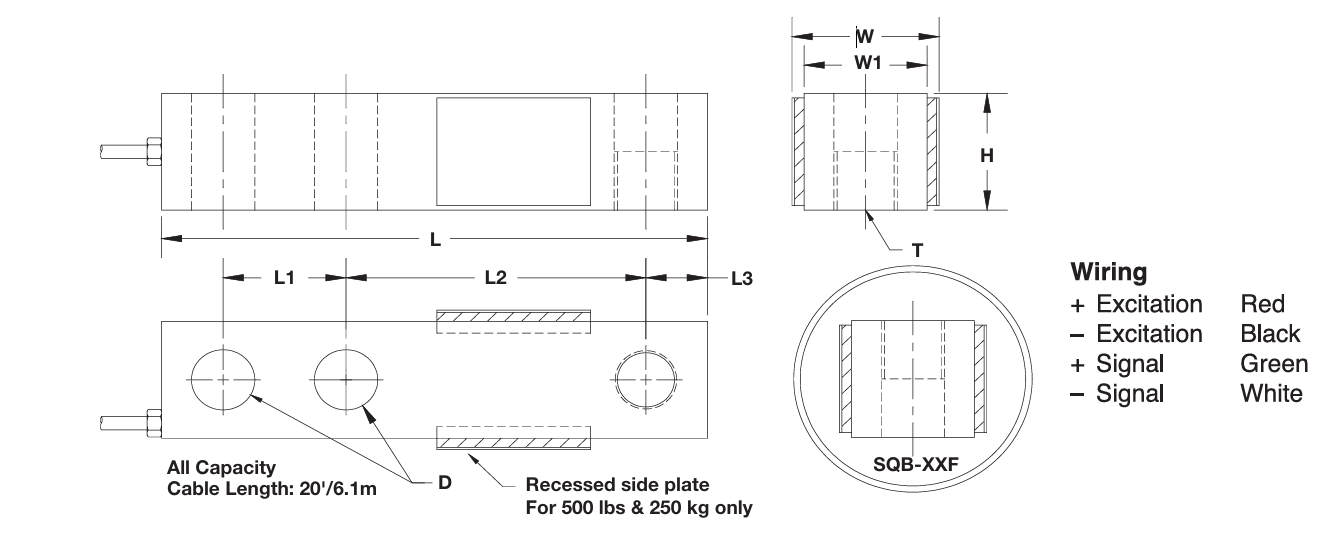

OUTLINE DIMENSIONS

CAPACITY L (mm/in) L1 (mm/in) L2 (mm/in) L3 (mm/in) W (mm/in) W1 (mm/in) H (mm/in) D (mm/in) T
250 kg 130.2 / 5.12 25.4 / 1.00 76.2 / 3.00 12.7 / 0.50 31.7 / 1.23 31.7 / 1.23 24.8 / 0.98 13.5 / 0.53 M12 × 1.75
500 lbs 130.2 / 5.12 25.4 / 1.00 76.2 / 3.00 12.7 / 0.50 37.2 / 1.46 31.2 / 1.23 31.2 / 1.23 13.5 / 0.53 1/2-20UNF
500/1000/1500/2000 kg 130.2 / 5.12 25.4 / 1.00 76.2 / 3.00 12.7 / 0.50 37.2 / 1.46 31.2 / 1.23 31.2 / 1.23 13.5 / 0.53 M12 × 1.75
1k/2k/2.5k/3k/4k/5kSE lbs 130.2 / 5.12 25.4 / 1.00 76.2 / 3.00 12.7 / 0.50 37.2 / 1.46 31.2 / 1.23 31.2 / 1.23 13.5 / 0.53 1/2-20UNF
2500/5000 kg 171.5 / 6.75 38.1 / 1.50 95.3 / 3.75 19.0 / 0.75 43.6 / 1.74 37.6 / 1.48 37.6 / 1.48 19.8 / 0.78 M20 × 1.5
5k/10k lbs 171.5 / 6.75 38.1 / 1.50 95.3 / 3.75 19.0 / 0.75 43.6 / 1.74 37.6 / 1.48 37.6 / 1.48 19.8 / 0.78 3/4-16UNF
15k/20k lbs 225.6 / 8.88 50.8 / 2.00 123.9 / 4.88 25.4 / 1.00 56.9 / 2.24 50.8 / 2.00 50.8 / 2.00 26.2 / 1.02 1-14UNS

Above dimensions apply to non-EDOC-coated load cells.

SPECIFICATIONS

CAPACITY L (mm/in) L1 (mm/in) L2 (mm/in) L3 (mm/in) W (mm/in) W1 (mm/in) H (mm/in) D (mm/in) T Rated output (R.O.) Tolerance Zero balance Non-linearity Hysteresis Non-repeatability Creep error Zero return Temp effect min dead load Temp effect sensitivity Safe overload Ultimate overload Input Impedance Output Impedance Insulation Construction Env. Protection
250 kg 130.2 / 5.12 25.4 / 1.00 76.2 / 3.00 12.7 / 0.50 31.7 / 1.23 31.7 / 1.23 24.8 / 0.98 13.5 / 0.53 M12 × 1.75 3.0 mV/V ±0.25% ±1% 0.025 0.025 0.020 0.025 0.025 0.0017% / °C 0.0010% / °C 150% R.C. 300% R.C. 385±5 Ω 350±3 Ω >5000 MΩ Nickel-plated alloy steel IP67
500 kg 130.2 / 5.12 25.4 / 1.00 76.2 / 3.00 12.7 / 0.50 37.2 / 1.46 31.2 / 1.23 31.2 / 1.23 13.5 / 0.53 M12 × 1.75 3.0 mV/V ±0.25% ±1% 0.025 0.025 0.020 0.025 0.025 0.0017% / °C 0.0010% / °C 150% R.C. 300% R.C. 385±5 Ω 350±3 Ω >5000 MΩ Nickel-plated alloy steel IP67
1000 kg 130.2 / 5.12 25.4 / 1.00 76.2 / 3.00 12.7 / 0.50 37.2 / 1.46 31.2 / 1.23 31.2 / 1.23 13.5 / 0.53 M12 × 1.75 3.0 mV/V ±0.25% ±1% 0.025 0.025 0.020 0.025 0.025 0.0017% / °C 0.0010% / °C 150% R.C. 300% R.C. 385±5 Ω 350±3 Ω >5000 MΩ Nickel-plated alloy steel IP67
2500 kg 171.5 / 6.75 38.1 / 1.50 95.3 / 3.75 19.0 / 0.75 43.6 / 1.74 37.6 / 1.48 37.6 / 1.48 19.8 / 0.78 M20 × 1.5 3.0 mV/V ±0.25% ±1% 0.030 0.030 0.020 0.030 0.030 0.0026% / °C 0.0015% / °C 150% R.C. 300% R.C. 385±5 Ω 350±3 Ω >5000 MΩ Nickel-plated alloy steel IP67
5000 kg 171.5 / 6.75 38.1 / 1.50 95.3 / 3.75 19.0 / 0.75 43.6 / 1.74 37.6 / 1.48 37.6 / 1.48 19.8 / 0.78 M20 × 1.5 3.0 mV/V ±0.25% ±1% 0.030 0.030 0.020 0.030 0.030 0.0026% / °C 0.0015% / °C 150% R.C. 300% R.C. 385±5 Ω 350±3 Ω >5000 MΩ Nickel-plated alloy steel IP67

NOTES

    • (1) Capacities: 1k–10k lbs
    • (2) Stainless steel available
    • All specifications subject to change without notice.

FM APPROVAL

  • Intrinsically Safe: Class I, II, III; Div. 1 Groups A–G
  • Non-Incendive: Class I; Div. 2 Groups A–D
