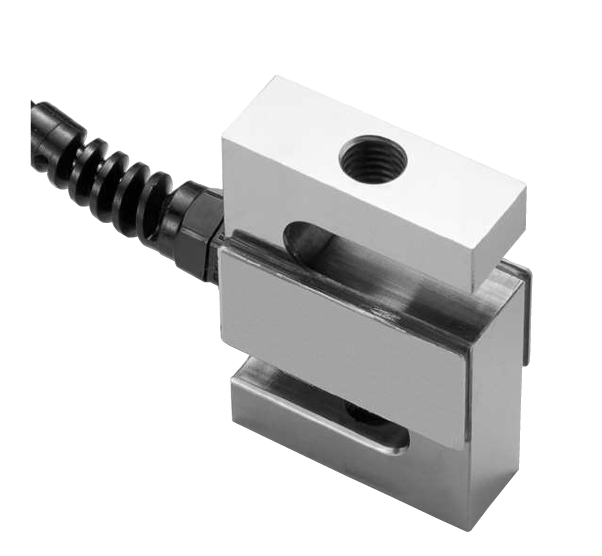

CELTRON / STC S-Type Load Cell

CELTRON / STC S-Type Load Cell

The Model STC is made of Aluminum, Alloy Steel or Stainless Steel, sealed to IP67 providing excellent protection against moisture and humidity. The S-type load cell, as the name indicates, can be easily identiied by its S-shaped body. They can be loaded either in tension or compression, and used for single or multiple-cell application if the output is rationalized.

Category:
Tag:
브랜드:

설명

STC S-Type Load Cell

FEATURES

  • Capacities:
    • Aluminum construction: 5, 10, 20 kg
    • Alloy steel construction: 25 to 5000 kg, 250 to 40k lbs
  • Bi-directional (tension/compression)
  • Rationalized output
  • NTEP Class III 5000S, III L 10000 approval (250 lbs to 20k lbs)
  • Optional – Stainless steel available
  • Optional – FM approval available
  • EDOC option available; product appearance may differ from photograph due to coating

APPLICATIONS

  • Electro-mechanical conversion scales
  • Silo / Hopper / Tank weighing
  • Crane scales
  • Fork-lift scales
  • Dosing / Filling
  • Universal material tester
  • Tensile / Pulling force measurement

OUTLINE DIMENSIONS—ALUMINUM in inches (millimeters)

CAPACITY   L W W1 H T
5 / 10 / 20 kg mm 50.8 16.6 16.6 63.5 M6 x 1.0
(inch) 0.65 1.05 0.65 2.50
Above dimensions apply to non-EDOC-coated load cells.

OUTLINE DIMENSIONS—ALLOY STEEL in inches [millimeters]

CAPACITY   L W W1 H T
25 / 50 / 75 kg mm 50.8 26.7 12.7 63.5 M6 x 1.0
(inch) 2.00 1.05 0.50 2.50
100 / 150 kg mm 50.8 22.92 19.1 76.2 M10 x 1.5
(inch) 2.00 0.9 0.75 3.00
250 / 300 lbs mm 50.8 26.7 12.7 76.2 3/8-24UNF
(inch) 2.00 1.05 0.50 3.00
250 kg

500 / 750 lbs

 mm 50.8 30.4 19.1 76.2 M12 x 1.75

1/2-20UNF
(inch) 2.00 1.2 0.75 3.00
500 / 750 kg mm 50.8 25.4 19.1 76.2 M12 x 1.75
(inch) 2.00 1.00 0.75 3.00
1k / 1.5k lbs mm 50.8 26.1 19.1 76.2 1/2-20UNF
(inch) 2.00 1.03 0.75 3.00
1000 / 1500 kg

2k / 2.5k / 3k lbs

 mm 50.8 31.8 25.4 76.2 M12 x 1.75

1/2-20UNF
(inch) 2.00 1.25 1.00 3.00
5k / 7.5k lbs mm 76.2 31.8 25.4 107.9 3/4-16UNF
(inch) 3.00 1.25 1.00 4.25
2000 / 2500 / 5000 kg mm 76.2 38.1 31.8 100.4 M20 x 1.5
(inch) 3.00 1.50 1.25 3.95
10k lbs mm 88.9 31.8 25.4 120.7 3/4-16UNF
(inch) 3.50 1.25 1.00 4.75
15k lbs mm 101.6 38.1 31.8 139.7 1-14UNS
(inch) 4 1.50 1.25 5.50
20k lbs mm 127 55.7 50.8 177.8 11/4-12UNF
(inch) 5 2.19 2 7.00
40k lbs mm 152.4 69.9 63.5 254.0 11/2-12UNF
(inch) 6.00 2.75 2.50 10.00
Above dimensions apply to non-EDOC-coated load cells.



SPECIFICATIONS

PARAMETER VALUE UNIT
NTEP/OIML accuracy class NTEP III & IIIL –
Maximum no. of intervals (n) III: 5000 single* IIIL: 10000 single* 2000
Y = Emax/Vmin 10000 (III) 5000 (IIIL) –
Maximum available Standard capacities (Emax) Aluminum: 5, 10, 20 kg Steel: 25, 50, 75, 100, 250, 500, 750, 1000, 1500, 2000, 2500, 5000 kg Steel (lbs): 250, 300, 500, 750, 1k, 1.5k, 2k, 2.5k, 3k, 5k, 7.5k, 10k, 15k, 20k, 40k kg / lbs
Rated output—R.O. Aluminum: 2.0 Steel: 3.0 mV/V
Rated output tolerance 0.25 ±% of rated output
Zero balance 1 ±% of rated output
Non-linearity Aluminum: 0.020 Steel: 0.020 (SS: 0.05) ±% of rated output
Hysteresis Aluminum: 0.020 Steel: 0.020 (SS: 0.05) ±% of rated output
Non-repeatability 0.020 ±% of rated output
Creep error (20 minutes) 0.030 ±% of rated output
Zero return (20 minutes) 0.030 ±% of rated output
Temperature effect on min. dead load output Aluminum: 0.0015 Steel: 0.0026 ±% of rated output/°C
Temperature effect on sensitivity Aluminum: 0.0010 Steel: 0.0015 ±% of applied load/°C
Compensated temperature range –10 to +40 °C
Operating temperature range –20 to +60 °C
Safe overload 150 % of R.C.
Ultimate overload Aluminum: 200 Steel: 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance Aluminum: 410±5 Steel: 385±5 Ω
Output impedance 350±3 Ω
Insulation resistance >5000 MΩ
Construction Aluminium or Nickel-plated alloy steel –
Environmental protection IP67 –
