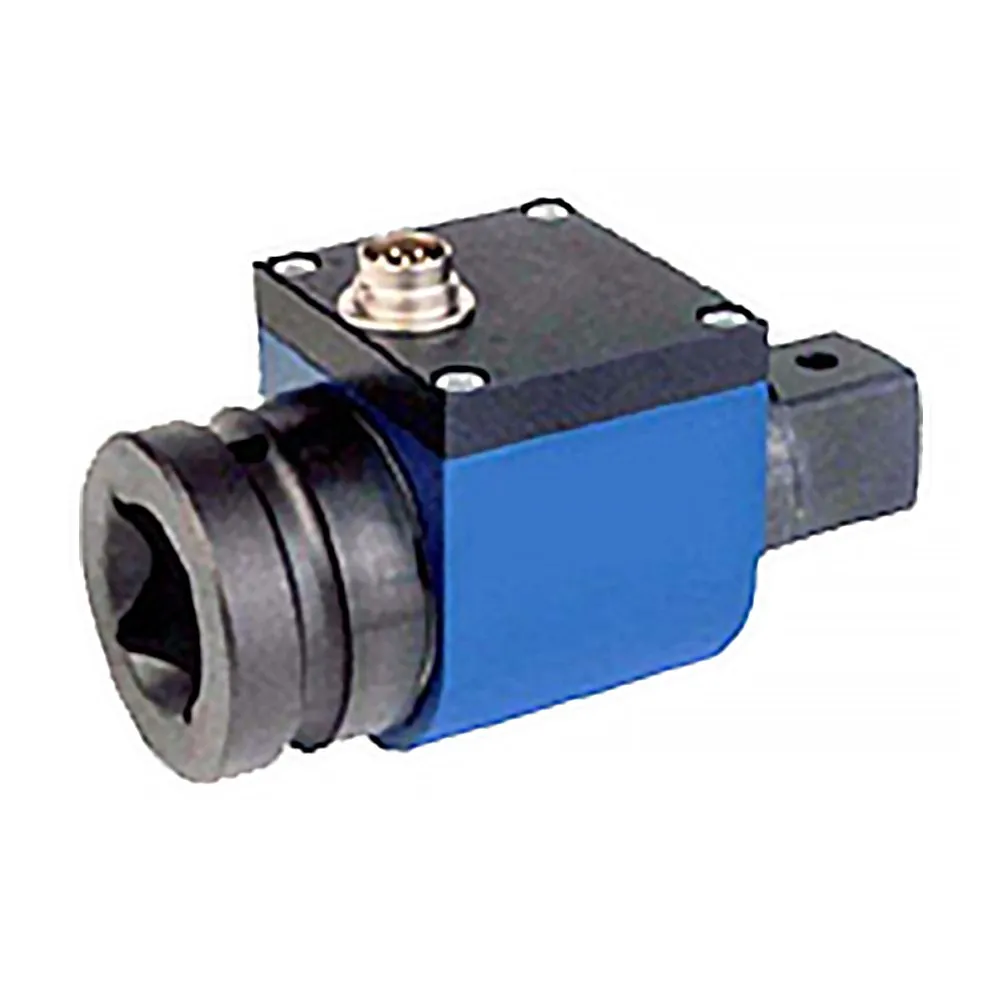

The TLQ and TLQA series of rotary torque transducers provide accurate and cost-effective in-line torque measurement, with a square drive input and output.

Accuracy class 0,1
Sensitivity (1 Nm) 0.5 mV/V
Sensitivity – other ratings 1 mV/V
Repeatability ±0.05% fs
Excitation voltage 2 to 12V
Excitation voltage (angle) 5 Vdc
Bridge resistance 350 ohms
Nominal Temp -10 to +60°C
Overload Capacity 150% fs
Durability of Brushes 5 x 107.rev
Protection IP50
