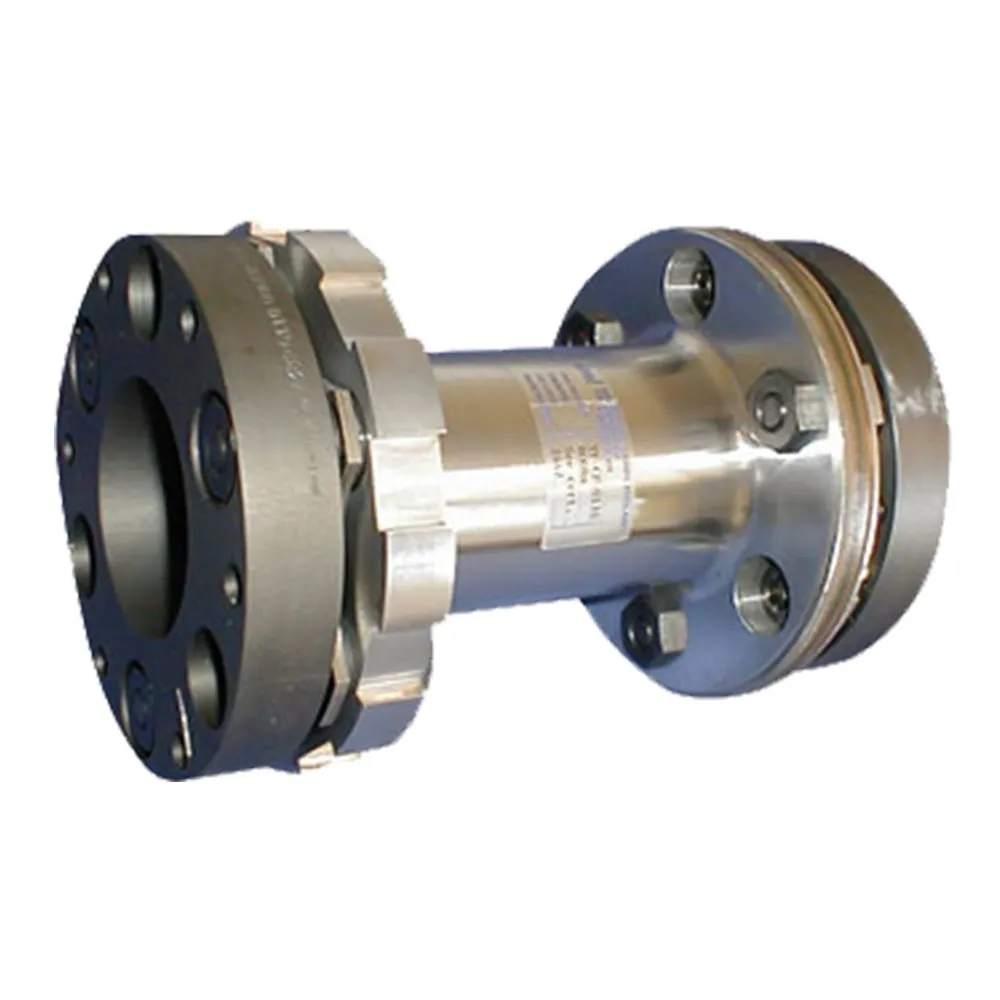

The TF series are engineered for specialised units that integrate any proprietary coupling manufacturer’s spacer. These couplings are versatile, accommodating a wide range of torques and speeds. All of the TF series are rated for operation up to 65°C, with an optional 100°C rating for more demanding applications.

Featuring a sealed data transmission system, the TF series couplings are ideal for environments exposed to water, oil, grease, and dust. This makes them robust and durable even in the harshest conditions. The TF, TFC, and TFD couplings are also ATEX certified, ensuring they are safe to use in environments with explosive substances.

Calibration level: Specified on certificate
Operating temp. range: +5 to +65°C
Optional temp range: 0 to +100°C
Zero shift: <±0.01% FS/°C
Span shift: <±0.02%FS/°C
Nominal output at -FS torque: 5kHz
Output signal at zero torque: 10kHz
Nominal output at +FS torque: 15kHz
Nominal output at -FS torque: 5kHz
Non-linearity: ±0.2% FS
Span shift : ±0.02%FS/°C
Repeatability: ±0.05% FS
Hysteresis: ±0.1%FS
