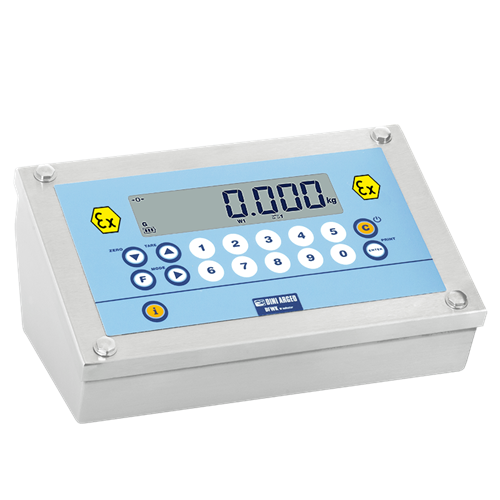

DINI ARGEO / DFWATEX2GDF Weight Indicator for Dosage in ATEX 1 & 21 Zones

DINI ARGEO / DFWATEX2GDF Weight Indicator for Dosage in ATEX 1 & 21 Zones

  • Waterproof 17-key numerical and functional keyboard.
  • LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures, and icons for showing the active functions.
  • AISI 304 stainless steel casing, with IP65 certified protection and IP68 performance.
  • Dimensions: 264x174x115mm.
  • May be angled either to be set on a table or a wall.
  • A/D 24-bit sigma-delta conversion with 4 channels, up to 200 conv./sec. autoselect.
  • Management of a weighing system from 1 to 4 channels (cells) with digital equalization.
  • Connectable with up to 4 analogue load cells with 350 Ohm input resistance.
  • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
  • Up to 10.000e or multirange 2 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
  • Calibration, Set-Up parameters, configurable from keyboard or PC with Dinitools.
  • Up to 8 signal linearization points with DINITOOLS (3 from keypad).
  • Memory back-up for recording dosage data in case it’s accidentally turned off.
  • Printing the dosage and consumption data, en sure zone through fiber optic.
  • Power supply through external power adapter PW200XRD, with PW200IO option.
Category:
Tag:
브랜드:

설명

DFWATEX2GDF Weight Indicator for Dosage in ATEX 1 & 21 Zones

Weight indicator for areas classified as hazardous with protection methods according to:
ATEX II 2(2)G Ex ib [ib Gb] IIC T4 Gb for gases and ATEX II 2(2)D Ex tb [ib Db] IIIC T197°C IP65 Db for dust. Ideal for creating automatic or semiautomatic dosage systems in loading or in unloading, or multiproduct dosages and mixtures. EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501).

DFWATEX2GDF Indicator For Dosage in ATEX 1 & 21 Zones
