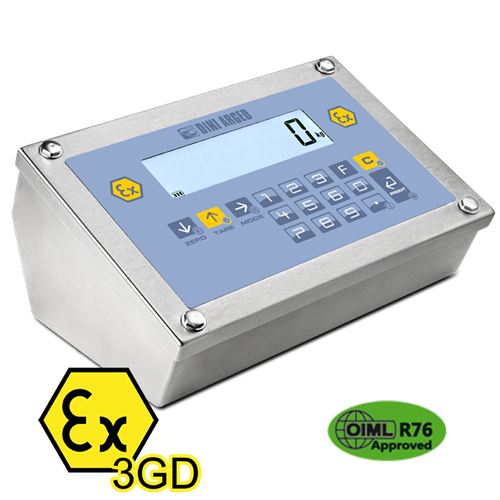

DINI ARGEO / DFWATEX3GD Weight Indicator for ATEX 2 & 22 Zones

DINI ARGEO / DFWATEX3GD Weight Indicator for ATEX 2 & 22 Zones

  • Waterproof 17-key functional keypad.
  • Backlit LCD display with 6 25-mm high contrast digits and with indication of active functions.
  • IP68 Satin finish stainless steel case.
  • Suitable for use on the table, or wall.
  • Dimensions: 264x174x115mm.
  • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
  • Up to 1.000.000 displayable divisions for internal factory use.
  • Up to 8 signal linearization points with DINITOOLS (3 from keypad).
  • Internal resolution up to 3.000.000 points.
  • A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.
  • Board protection case inside the box.
  • Digital calibration and set-up from keyboard.
  • Instrument management & configuration from PC with DINITOOLS.
  • 4 channels (for single weighing system).
  • Power supply:DFWATEX3GD: through 110-240Vac internal power adapter (optional power supply cable);DFWATEX3GDB: through optional external battery (BP6ESTATEX3GD code), rechargeable in safe area. Battery charger not included.
  • Connection with up to 8 load cells with 350 Ohm input resistance.
Category:
Tag:
브랜드:

설명

DFWATEX3GD Weight Indicator for ATEX 2 & 22 Zones

Weight indicator for areas classified as hazardous with protection methods according to:

  • ATEX II 3G Ex nR IIC T6 Gc X for gases
  • ATEX II 3D Ex tc IIIC T85°C Dc IP68 X for dust.
  • Ideal for creating weighing systems, batching, and automation systems. CE-M approvable (OIML R-76 / EN 45501).
DFW ATEX3GD Weight Indicator for ATEX 2 & 22 Zones
