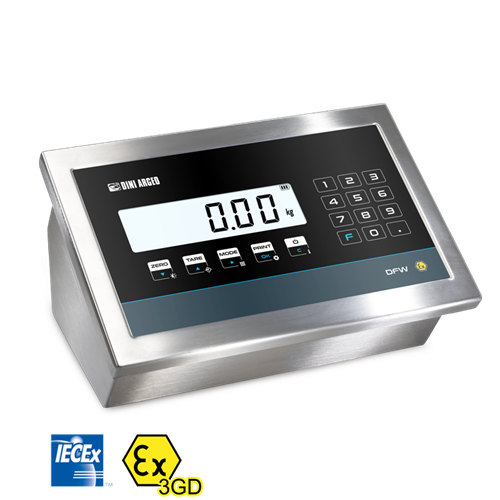

DINI ARGEO / DFWIECEX3GD: IECEx Weight Indicator For Ex 2 & 22 Zones

IECEx certification.
New enclosure with screwless front closure for easy cleaning of the indicator.
PG7 and PG9 cable glands with adapters for 4 to 7 mm and 7 to 10 mm cable routing. Equipped with anti-friction system that does not require additional external cable fixing, as required by the IECEx scheme and ATEX directives.
Available in specific version for direct connection to load cells installed in zone 1/21 and 0/20.
17-key high thickness waterproof keyboard.
LCD display with backlight as standard with 6 25 mm digits.
AISI 304 stainless steel casing, with IP65 certified protection and IP68 performance.
Suitable for use on the table.
Dimensions: 280x143x185mm.
Up to 10.000e or 3 x 3000e @ 0,3 µV/d OIML approved version and CE-M legal for trade.
Up to 1.000.000 displayable divisions for internal factory use.
Up to 8 signal linearisation points with DINITOOLS (3 from the keyboard).
Internal resolution up to 3.000.000 points.
24-bit sigma-delta A/D converter, up to 200 conv./sec. with automatic frequency selection.
Board protection case inside the box.
Calibration and digital Set-Up from the keyboard.
Instrument management and configuration from PC with DINITOOLS.
4 channels (for single weighing system).
Power supply from 110-240Vac.
Connection with up to 8 load cells of 350 Ohm.

설명

Weight indicator for Ex areas classified as hazardous. ATEX/IECEx marking:

II 3G Ex nR IIC T6 Gc X (0°C<= Ta <=50°C) for gas
II 3D Ex tc IIIC T85°C Dc IP65 X (0°C<= Ta <=50°C) for dust.
ATEX/IECEx marking with intrinsically safe connection for load cells:
II 3G Ex nR [ia] IIC T6 Gc X (0°C<= Ta <=50°C) for gas
II 3D Ex tc [ia] IIIC T85°C Dc IP65 X (0°C<= Ta <=50°C) for dust.
Suitable to realize weighing, dosing and automation systems. CE-M approvable (OIML R-76 / EN 45501).
