Eilersen / Beam Load Cell BM (BM-Ex) 70

Eilersen / Beam Load Cell BM (BM-Ex) 70

Robust digital heavy duty ATEX certified beam load cell produced in stainless steel and hermetically sealed to IP68 for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. The BM-Ex 70 load cell can be used in ATEX (Ex) IECEx and non-ATEX applications.

Type:BM 70 (Non-ATEX) BM-Ex 70 (ATEX)
Capacity (Emax):1000, 1500, 2000, 3000 kg
Accuracy:Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload Tolerance:Up to 500% of rated capacity
Category:
Tags: ,
브랜드:

설명

Beam Load Cell BL (BL-Ex)

Special Features

  • Made in Denmark
  • ATEX and IECEx certified (Zone 1, 2, 21, 22)
  • Stainless steel 1.4542 (17-4 PH)
  • Robust capacitive technology
  • High tolerance of up to 500% overload
  • Hermetically sealed to IP68
  • Laser welded with Duplex 1.4462 stainless steel
  • High accuracy, High resolution
  • Can be supplied with Mud resistant and Halogen free cables for offshore installation
  • Digital filters
  • Cable length up to 100 meters
  • Capacity (Emax): 1000, 1500, 2000, 3000 kg
  • Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
  • Calibration independent of cable length
  • Replaceable load cell cable
  • Easy mechanical and electrical installation
  • Withstands welding voltages and ESD
  • Can be used in both ATEX / IECEx and non-ATEX installations
  • Examples Heavy Duty Digital Beam Load Cells

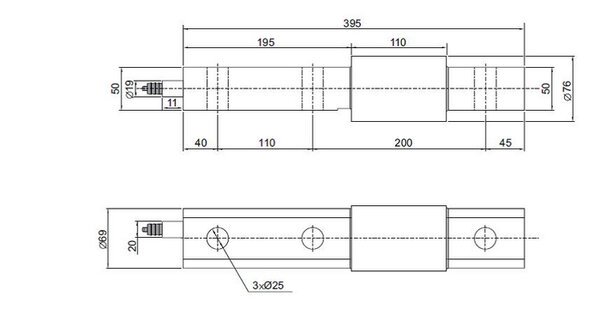

Dimensions (mm)


Specifications

Parameter Unit 0.10% 0.05% 0.025%
Rated capacity (Emax) kg 1000, 2000, 3000
Safe overload limit % of Emax 300 to 500
Safe sideload limit % of Emax 500 to 1000
Minimum dead load % of Emax 0
Combined accuracy % of Emax 0.100 0.050 0.025
Repeatability % of Emax 0.030 0.025 0.015
Hysteresis % of Emax 0.050 0.030 0.018
Creep 30 min. % of Emax 0.040 0.030 0.030
Temperature effect on zero % /10°C 0.060 0.055 0.040
Temperature effect on sensitivity % /10°C 0.060 0.055 0.040
Compensated temperature range °C -10 to 50
Operating temperature range °C -40 to +70 (100*)
Deflection at Emax mm 0.10
Measuring rate Hz 500
Supply Vdc 24Vdc ±5%
Internal resolution Bit 24
Material   Stainless Steel 17-4 PH and AISI 316
Protection   IP68
Cable   6 meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum load cell cable length m 100
Weight kg 8.95
Output options   EtherNet/IP, PROFINET, EtherCAT, Profibus DP, Modbus TCP/IP, DeviceNet, RS485, 4-20mA, 0-10Vdc

* only for non-ATEX and with Teflon load cell cable

Applications

  • Dynamic weighing
  • Process weighing
  • Mobile weighing
  • Vibration feeders
  • Big-bag equipment
  • Hopper scales
  • Conveyor scales
  • Heavy duty platform scales
  • Heavy duty applications
  • Offshore applications

Options

  • ATEX and IECEx (Zone 1, 2, 21, 22) version type BM-Ex
  • ATEX II 2G Ex ia IIC T6 Gb / ATEX II 2D Ex IIIC T85°C Db
  • Mounting kits available
  • Customized versions available
  • Load cell cable length 10, 20, 50 or 100 meters
  • Mud resistant and Halogen free cables for offshore installation
  • Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
  • Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
