Eilersen / Compression Load Cell CM (CM-Ex) 150

Eilersen / Compression Load Cell CM (CM-Ex) 150

NEW hygienic (aseptic) compression load cell types CM and CM-Ex with 150mm diameter in EHEDG compliant design. These robust digital compression load cells are available in capacities up to 50 tons and produced in electropolished stainless steel and hermetically sealed to IP68 for hygienic weighing installations, installations in tough environments and general process weighing. The load cells can be supplied with a hygienic base plate in AISI316. The compression load cell type CM-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22).

Type:CM 150 (Non-ATEX) CM-EX 150 (ATEX)
Capacity (Emax):25000, 30000, 40000, 50000 kg
Accuracy:Industrial 0.10%
Overload Tolerance:Up to 300% of rated capacity
Category:
Tags: ,
브랜드:

설명

Compression Load Cell CM (CM-Ex) 150

Special Features

  • EHEDG compliant hygienic (aseptic) design without gaps or edges for easy cleaning to minimize the risk of bacteria growth
  • Developed and manufactured in Denmark
  • Low profile and hygienic design
  • High tolerance of up to 300% overload
  • Robust capacitive technology
  • Hermetically sealed to IP68
  • Electropolished stainless steel 1.4542 (17-4 PH)
  • Laser welded with Duplex 1.4462 stainless steel
  • ATEX and IECEx certified (Zone 1, 2, 21, 22)
  • Easy mechanical and electrical installation
  • High accuracy, High resolution
  • Capacity (Emax): 25000, 30000, 40000, 50000 kg
  • Accuracy: Industrial 0.10%
  • Load cell cable length up to 100 meters
  • Load cell calibration independent of cable length
  • Load cell cable replaceable on-site
  • Withstands welding voltages and ESD
  • Can be used in both ATEX / IECEx and non-ATEX installations

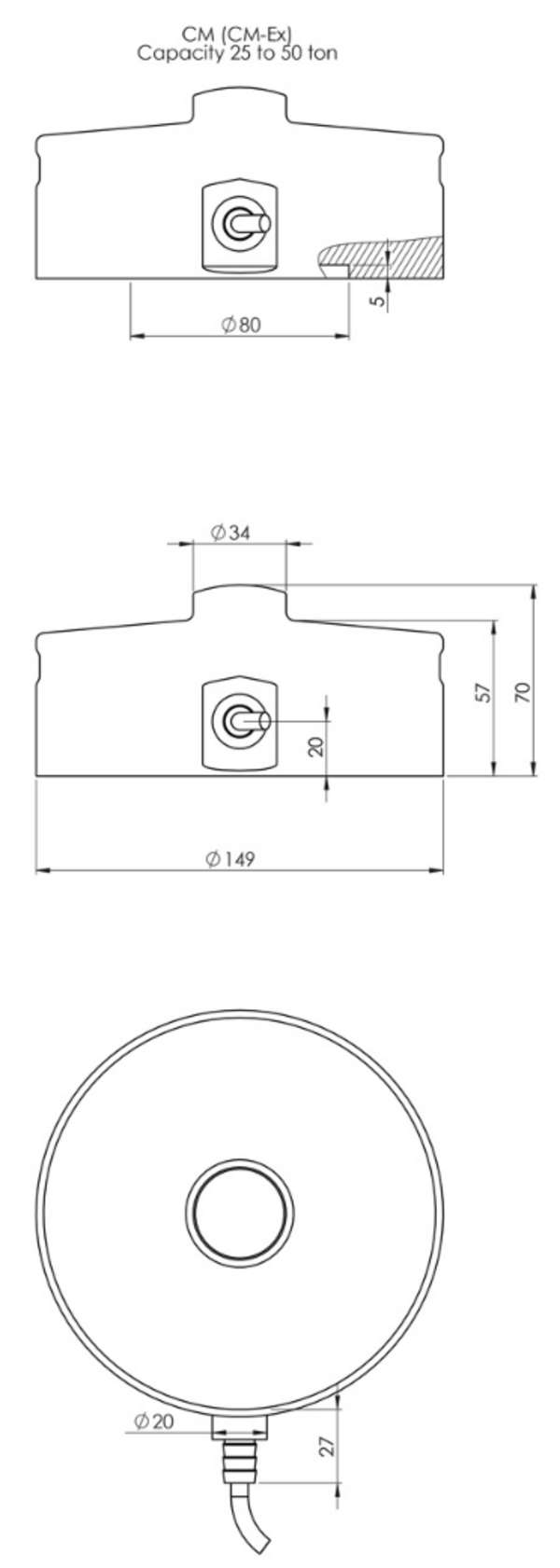

Dimensions (mm)


Specifications

Parameter Unit 0.10%
Rated capacity (Emax) kg 25000, 30000, 40000, 50000
Safe overload limit % of Emax up to 300
Safe sideload limit % of Emax up to 300
Minimum dead load % of Emax 0
Accuracy % of Emax 0.100
Repeatability % of Emax 0.030
Hysteresis % of Emax 0.055
Creep 30 min. % of Emax 0.060
Temperature effect on zero % /10°C 0.060
Temperature effect on sensitivity % /10°C 0.060
Compensated temperature range °C -10 to 50
Operating temperature range °C -40 to +70 (*100)
Deflection at Emax mm max 0.10
Measuring rate Hz 500
Supply Vdc 24Vdc ±5%
Internal resolution Bit 24
Material   Stainless Steel 17-4 PH and AISI 316
Protection   IP68
Cable   6 meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum load cell cable length m 100
Weight kg 6.5
Output options   EtherNet/IP, PROFINET, EtherCAT, Modbus TCP/IP, Profibus DP, DeviceNet, RS485, 4-20mA, 0-10Vdc

* Only for non-ATEX and with Teflon load cell cable

Applications

  • Tank weighing
  • Process weighing
  • Level measurement
  • Filling and dosing
  • Large Vessels
  • Offshore applications
  • Heavy duty applications

Options

  • ATEX and IECEx (Zone 1, 2, 21, 22) version type CM-Ex
  • ATEX II 2G Ex ia IIC T6 Gb / ATEX II 2D Ex IIIC T85°C Db
  • Hygienic and Standard Base Plate available
  • Load cell cable length 10, 20, 50 or 100 meters
  • Mud resistant and Halogen free cables for offshore installation
  • Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
  • Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
