Eilersen / Single Point Load Cell XBL (XBL-Ex)

Eilersen / Single Point Load Cell XBL (XBL-Ex)

The robust digital single point load cell type XBL in stainless steel is hermetically sealed to IP68K. The load cell is developed for machine builders who have tasks within dynamic weighing, multihead weighers, factory automation, packaging machines, filing and dosing, flow measurement, bench and platform scales, conveyor scales, process weighing and check weighers. ATEX (Ex) and IECEx versions are available.

Type:XBL (Non-ATEX) XBL-Ex (ATEX)
Capacity (Emax):3, 5, 10, 15, 20, 30, 50, 100 kg
Accuracy:Industrial 0.025%, Precision 0.015%, High Precision 0.010%
Overload Tolerance:Up to 1000% of rated capacity
Category:
Tags: ,
브랜드:

설명

Single Point Load Cell SPSXL (SPSXL-Ex)

Special Features

  • Made in Denmark
  • Patented load cell design
  • Electropolished stainless steel 1.4542 (17-4 PH)
  • Laser welded with Duplex 1.4462 stainless steel
  • ATEX and IECEx certified (Zone 1, 2, 21, 22)
  • Robust capacitive technology
  • High tolerance of up to 1000% overload
  • High accuracy, High resolution
  • Laser welded (IP68)
  • Replaceable load cell cable
  • Capacity (Emax): 3, 5, 10, 20, 30, 50, 100 kg
  • Accuracy: Industrial 0.025%, Precision 0.015%, High Precision 0.010%
  • Small deflection at rated capacity
  • High resonance frequency (spring rate) for rapid dynamic weighing
  • Easy mechanical and electrical installation
  • Digital filters
  • Can be used in both ATEX / IECEx and non-ATEX installations

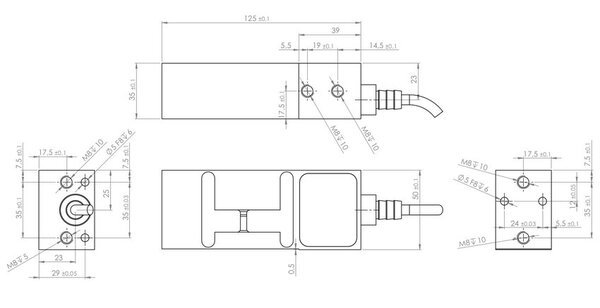

Dimensions (mm)

XBL dimensions
Specifications

Parameter Unit 0.025% 0.015%
Rated capacity (Emax) kg 3, 5, 10, 15, 20, 30, 50, 100*
Safe overload limit % of Emax 300 to 1000
Safe siderload limit % of Emax 500 to 2000
Minimum dead load % of Emax 0
Combined Accuracy % of Emax 0.025 0.015
Repeatability % of Emax 0.012 0.010
Hysteresis % of Emax 0.013 0.008
Creep 30 min. % of Emax 0.015 0.012
Temperature effect on zero % /10°C 0.050 0.035
Temperature effect on sensitivity % /10°C 0.050 0.050
Compensated temperature range °C -10 to 50
Operating temperature range °C -40 to +70 (100**)
Deflection at Emax mm max 0.10
Measuring rate Hz 500
Supply Vdc 24Vdc ±5%
Internal resolution Bit 24
Material   Stainless steel 17-4PH and AISI316
Protection   IP68
Cable   6 meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum cable length m 100
Weight kg 1.5
Output options   EtherNet/IP, PROFINET, EtherCat, Profibus DP, Modbus TCP/IP, RS485, 4-20mA, 0-10Vdc

* available in other capacities upon request

** only for non-ATEX users and with Teflon load cell cable

Applications

  • Dynamic weighing
  • Multihead weighers
  • Factory Automation
  • Packaging machines
  • Filling and dosing
  • Flow measurement
  • Bench and platform scales
  • Conveyor scales
  • Process weighing
  • Check weighers
  •

Options

  • ATEX and IECEx (Zone 1, 2, 21, 22) version type XBL-Ex
  • ATEX II 2G Ex ia IIC T6 / ATEX II 2D Ex iaD 21 T85°C
  • Customized versions available
  • Load cell cable length 10, 20, 50 or 100 meters
  • Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
  • Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
  •
