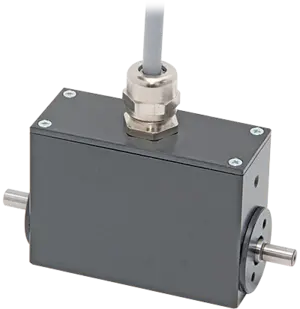

Waterproof torque transducer DRWPL
DRWPL series torque transducers are fitted with a number of gaskets in compliance with international protection IP67.
The devices are also available with optional speed or angle detection for a host of applications. The integrated signal amplifier is powered with 12 V DC and outputs an electrically isolated analog signal of 0 to ± 10 V.
Features
- waterproof (IP67)
- contactless
- integral torque amplifier
- single supply voltage
- wide range of application
- small form
- low moment of inertia
- speed measurement (option)
- angle measurement (option)
Technical specifications
| Supply voltage | 12V DC ± 10 % |
| Power consumption | approx. 200 mA |
| Rise time 10 – 90 % | 2 ms |
| Limit frequency -3 dB | 200 Hz (option 1 kHz) |
| Voltage output | 0 to ± 10 V |
| Internal resistance | 100 Ω |
| Ripple | < 100 mVss |
| Nonlinearity | 0,1 % |
| Hysteresis | 0,1 % |
| Deviation at zero point | ≤ ± 100 mV |
| Max. measurement Error | 0,1 % (of full scale) |
| Operating temperature | 0 – 60 °C |
| Compensated temperature range | 5 – 45 °C |
| Temperature error zero point sensitivity |
0,02 %/K 0,01 %/K |
| Mechanical overload | 100 % |
| Internal protection | IP67 |
| Connection | flying leads |
| Cable length | 2,5 m (standard) |
| EMV Immunity for interference (DIN EN 50082-2 ) *1 | |
| Enclosure HF line interference 150 kHz – 80 MHz (AM) ESD (Electrostatic discharge) |
Severity 10 V Air 8 kV / Contakt 4 kV |
| Enclosure Electromagnetic field 80 Mhz – 1000 MHz (AM) 150 kHz – 80 MHz (AM) |
10 V/m 20 V/m |
| Leads – Connection Cable Burst (fast transients) 2 kV |
|
| *1 Severity / criterion: industrial environment; Cable lenght ≤ 30 m. Application not outside buildings. | |
| Interference Emission (EN 55011) Disturbance Voltage (electromagnetic disturbances) Radiated Emission (electromagnetic disruption axis) |
Class B (150 kHz – 30 MHz) Class B ( 30 MHz – 1000 MHz) |
Options
| Speed Option (n) | Angle Option (w) | |
| Speed | ≤ 10.000 1/min * | ≤ 3000 1/min ** |
| Output | Open-Collector | Open-Collector |
| Internal pull up | 10 kΩ (5 V level) | 10 kΩ (5 V level) |
| External pull up | 24 V max./ 20 mA | 24 V max./ 20 mA |
| Pulses/rev | 60 | 360 |
| Resolution | — | 1° |
| Phase shift | — | Channel A 90° at right spin of propulsion side |
| * with suitable external wiring 20.000 min⁻¹ (or speed max.) | ** with suitable external wiring 15.000 min⁻¹ (or speed max.) |
| Angle Option (w) | |
| max. rev.: | up to 3 000 min -1 *3 |
| Output: | open-collector |
| Internal pull up: | 10 kΩ (5 V level) |
| External pull up: | 24 V max |
| Pulses / rev.: | 360 |
| Resolution: | 1° |
| Phase shift | Channel A 90° at right spin of propulsion side. |
| *3 with suitable external wiring 15.000 min⁻¹ (or speed max. ) | |

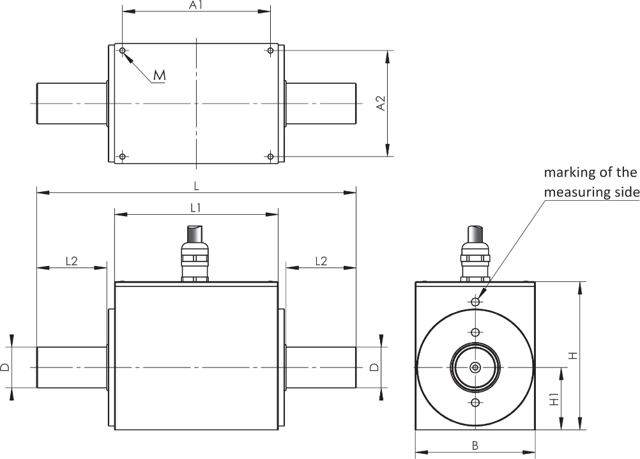

Technical Specifications DRWPL
| DRWPL-I | DRWPL-II | DRWPL-III | DRWPL-IV | |
| Torque range | | 0,1| 0,2| 0,5 | 1 | 2| | | 5 | 10 | 20 | 50 | | | 50|100 |200 |300| | | 500| 1000 |1500 | |
| L (mm) | 103 | 160 | 205 | 310 |
| L1 (mm) | 74 | 92 | 105 | 126 |
| L2 (mm) | 11 | 30 | 45 | 85 |
| B (mm) | 30 | 50 | 77 | 120 |
| H (mm) | 53 | 68 | 95 | 112 |
| H1 (mm) | 15 | 25 | 40 | 52 |
| D g6 (Ø mm) | 6 | 15 | 26 | 45 |
| A1 (mm) | 68 | 82 | 95 | 105 |
| A2 (mm) | 24 | 40 | 68 | 105 |
| M | M3 x 5 deep | M4 x 8 deep | M4 x 8 deep | M6 x 10 deep |
| Weight approx. (g) | 280 | 920 | 4925 | 8000 |
| Speed max. (1/min) | 20.000 | 10.000 | 5000 | 1900 |
General tolerances DIN 2768-m
| Sizes | Torque Range (Nm) | Spring Constant C (Nm/rad) | Mass Moment of Inertia J (g•cm²) | Rated Axial Load (N) * |
Rated Radial Load (N) * |
||
| Total | Drive Side | Measuring Side | |||||
| I |
0,1 | 33 | 7,7 | 6,8 | 0,9 | 140 | 1,5 |
| 0,2 | 33 | 7,7 | 6,8 | 0,9 | 140 | 1,5 | |
| 0,5 | 86 | 7,9 | 6,9 | 0,8 | 160 | 2 | |
| 1 | 86 | 7,9 | 6,9 | 0,8 | 210 | 3,5 | |
| 2 | 173 | 7,9 | 7,0 | 1,0 | 210 | 6,5 | |
| II |
5 | 936 | 111 | 77 | 34 | 930 | 10 |
| 10 | 2017 | 111 | 78 | 33 | 930 | 20 | |
| 20 | 3626 | 112 | 78 | 34 | 930 | 50 | |
| 50 | 5808 | 116 | 80 | 36 | 930 | 110 | |
| III |
50 | 15.471 | 984 | 560 | 424 | 1820 | 60 |
| 100 | 25.696 | 993 | 564 | 429 | 1820 | 130 | |
| 200 | 41.762 | 1020 | 578 | 442 | 1820 | 250 | |
| 300 | 48.872 | 1047 | 591 | 456 | 1820 | 380 | |
| IV |
500 | 205.695 | 11.778 | 6455 | 5323 | 4160 | 522 |
| 1000 | 290.236 | 12.011 | 6572 | 5439 | 4160 | 1019 | |
| 1500 | 327.886 | 12.277 | 6705 | 5572 | 4160 | 1502 | |
*The values for axial and radial load apply to the non-fixed housing

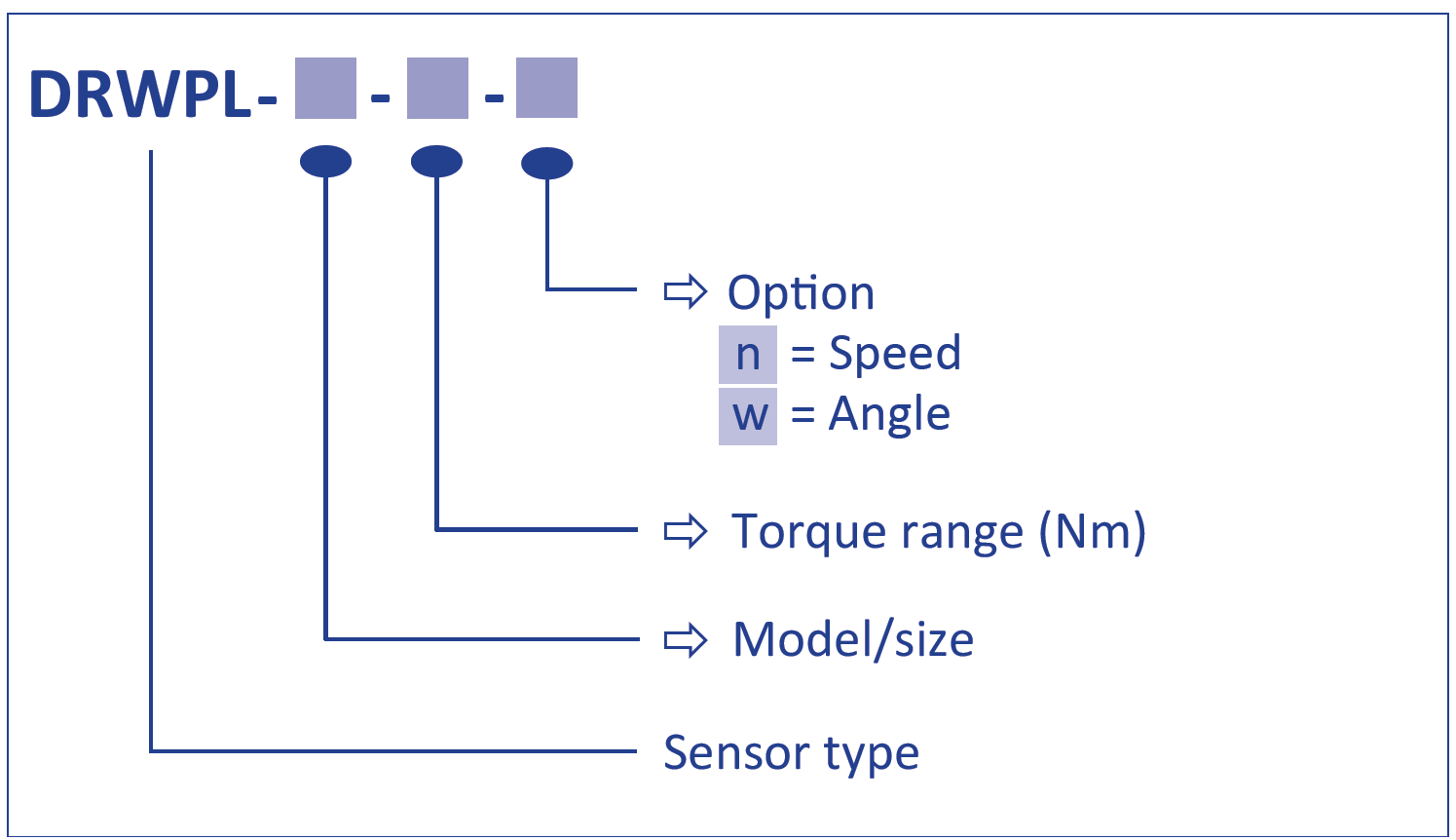

Ordering Code
Available Accessories
Supply and display unit: ValueMasterBase Couplings
