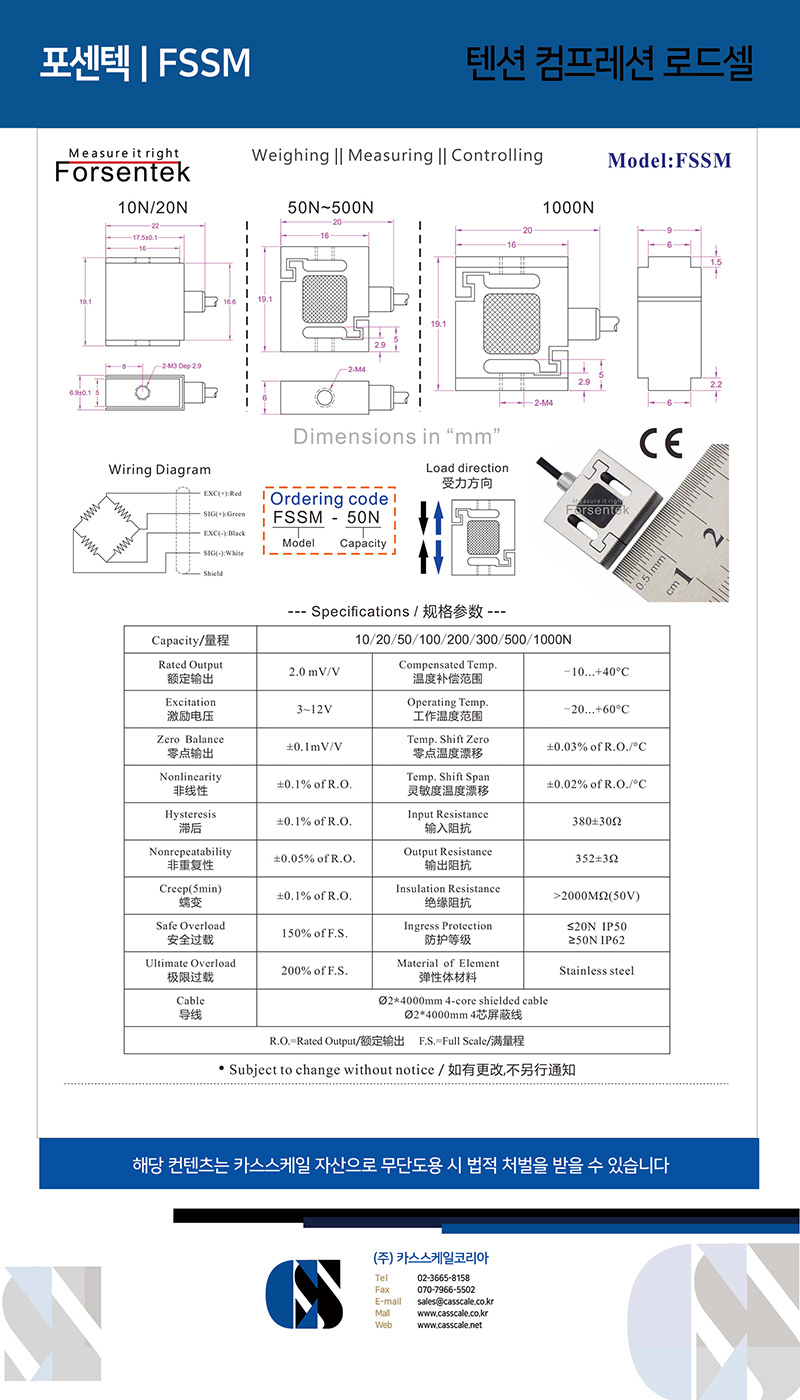

Jr s beam load cell FSSM offers a perfect mixture of size and accuracy, the 19.1x16x6mm compact design enables micro force sensor FSSM to be easily embedded into machinery or test equipment–ideal for packaging machinery, assembly machinery, end-of-line test equipment and other applications with limited space. Maximum 0.1% F.S. non-linearity can meet most measurement requirements in force detecting and auto processing applications. Miniature force transducer FSSM is configured for tension and compression force measurement with 0-10N / 0-20N / 0-50N / 0-100N / 0-200N / 0-300N / 0-500N / 0-1000N eight measuring ranges to choose from. Miniature s-beam Jr. Load cell FSSM is very adaptable thanks to the M3/M4 metric threaded holes located on both ends which can be used to mount attachments to fit various industrial applications. Full-bridge strain gauge technology provides mV/V output proportional to the applied force. Signal amplification may be required for most applications, a load cell signal conditioner can be used to deliver -5-5V, -10-10V or 4-20mA output, the amplified signal then can be easily processed by PLCs and data acquisition software.The force can be displayed through force meter FPT which is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC, up to 960Hz sampling speed makes it suitable for both static and dynamic measurement; digital indicator FPT also supports Modbus RTU protocol with RS485 or RS232 communication interface, 0-5V,0-10V,0-20mV or 4-20mA analog output is also achievable from display unit FPT.
