포센텍 / F3G / 3축 로드셀

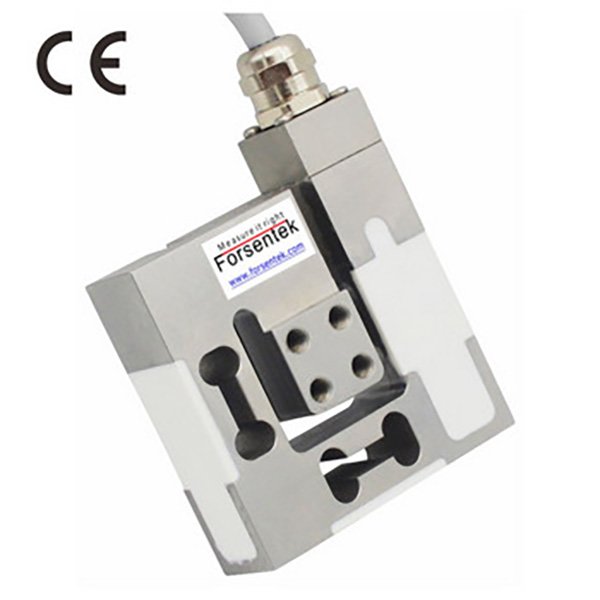

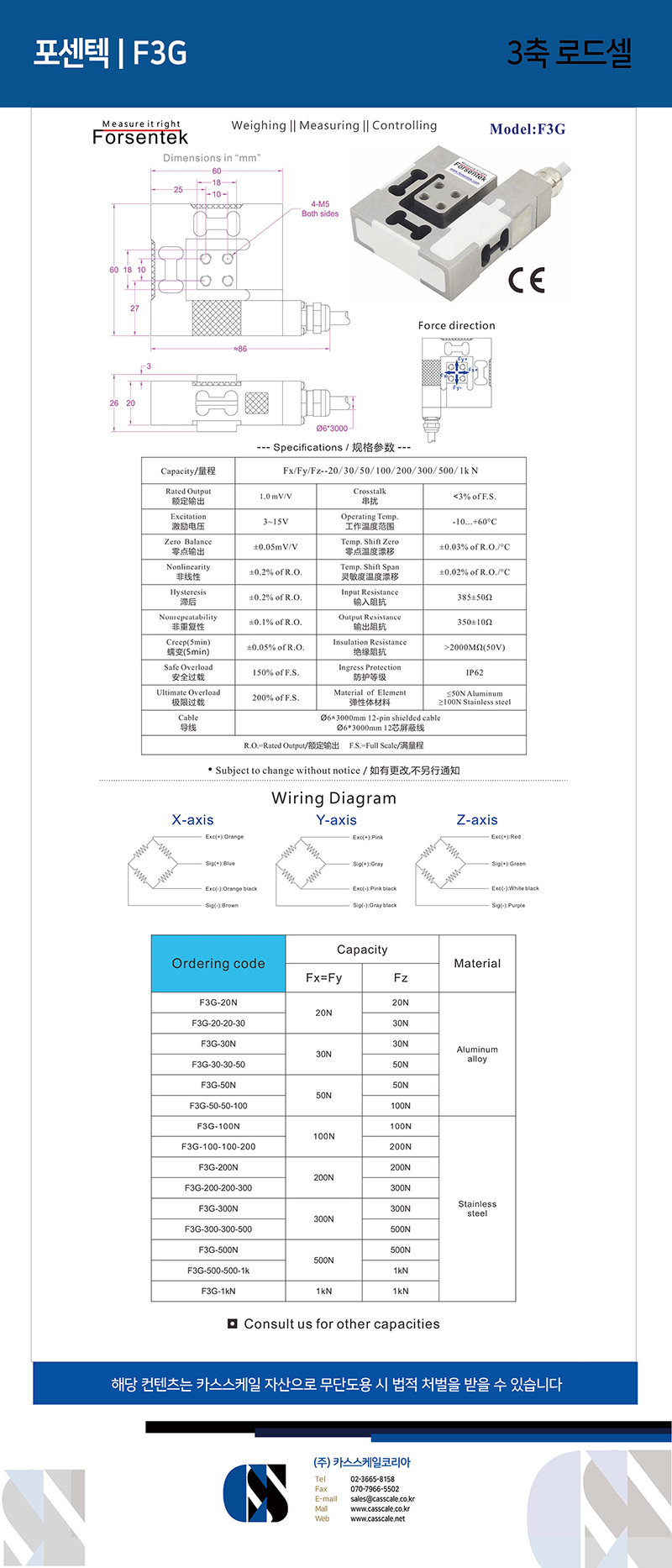

Multi-axis load cell F3G is made of stainless steel based on strain gauge technology,independent wheatstone full bridge for each axis provides mV/V output proportional to the applied force and requires no mathematical manipulation.Triaxial load cell F3G offers 1kN / 500N / 300N / 200N / 100N / 50N / 30N / 20N (225lb / 112lb / 67lb / 45lb / 20lb / 10lb / 6.7lb / 4.5lb) eight rated capacities for all three axes, each axis can measure bidirectional force in tension and compression direction. Compact design makes 3-axis force sensor F3G applicable for multi-axis force measurement where mounting space is limited. Typical applications for this type of transducer are for example force exertion control in robotics, industrial test benches, actuator operating force measurement and so on.
