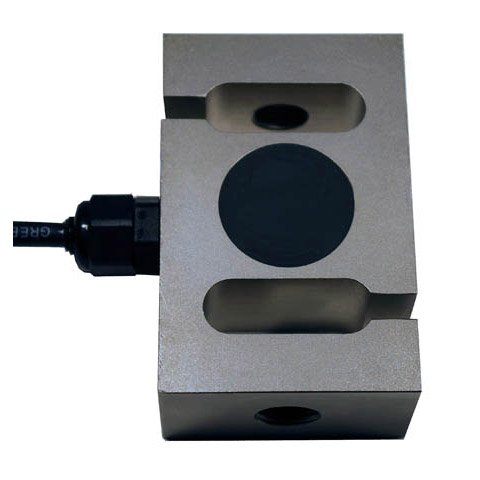

HISTLB – C2® Stainless Steel S-Beam Tension Load Cell (220 lbs – 11,000 lbs)
The Hardy Process Solutions HI STLB Advantage® Lite ‘S’ Type stainless steel sensor is designed for hanging vessels, hoppers, filling machinery and process control. These stainless steel 17-4PH sensors feature IP67 ratings, and allow for tension and compression loading. Improved potting makes it suitable for use in industrial environments. They feature the same accuracy and performance as their Advantage counterparts, but without hermetic sealing.
Sensors come with Hardy C2® electronic datasheets to support weightless calibration capabilities when coupled with a Hardy weighing instrument. They are available in a wide range of capacities from 100 kg to 5000 kg (220 lbs to 11Klb).
The HI STLB sensor can be used standalone using a threaded rod or with the same clevis mount used on the HI HLPT load points. The HI LPTLB tension load cell is available in capacities from 220lb (100kg) to 11Klb (5000kg). The sensor is environmentally protected with a plastic covering to IP67. The tension load cell provides a robust, accurate load cell solution for general tension mounted industrial weighing applications.
A grounding strap and fixed color code wiring label are provided with each load point. The mounting hardware is available in either stainless or galvanized steel. The Load Cell cable is 20 ft.
| SPECIFICATIONS HI STLB | |
| Rated Output (ES) | 2 + 0.1% mV/V |
| Max # Verification Int. | 3000 |
| Min Verification Int. | Emax/12000 |
| Non-Linearity | <±0.0166 % R.O. |
| Hysteresis | <±0.0166 % R.O. |
| Zero Balance | <±5.0 % R.O. |
| Combined Error | <±0.02 % R.O. |
| Creep @ 30 Min. | <±0.0166 % R.O. |
| Temp Effect Output | ±0.0116% RO/10°C |
| Temp Effect Sensitivity | ±0.010 % RO/10°C |
| Input Resistance | 1100±50 ohm |
| Output Resistance | 1000 ± 2 ohm |
| Insulation Resistance | ≥5000 Mohm |
| Excitation | 5 – 15 vdc |
| Safe Load Limit | 200 % Emax |
| Ultimate Load | 300 % Emax |
| Sensor Material | Stainless Steel 17-4PH |
| Sealing | Potted |
| Approvals | CE, IP67 |
| Warranty | Two years |
ORDERING INFORMATION
Shipping Weight 4lbs to 15lbs for Sensors; 6lbs to 20 lbs for mounts. For load points, order 45 for Galvanized Steel, 43 for Stainless Steel * 11Klb mount is available in Galvanized Steel Only
| Capacity | Load Point Model # | Sensor Model# | |
| lbs* | kg | Load Sensor | |
| 220 | 100 | HILPTLB-220LB-4_C | HISTLB-220LB |
| 440 | 200 | HILPTLB-440LB-4_C | HISTLB-440LB |
| 1100 | 500 | HILPTLB-1.1KLB-4_C | HISTLB-1.1KLB |
| 2200 | 1000 | HILPTLB-2.2KLB-4_C | HISTLB-2.2KLB |
| 4400 | 2000 | HILPTLB-4.4KLB-4_C | HISTLB-4.4KLB |
| 6600 | 3000 | HILPTLB-6.6KLB-4_C | HISTLB-6.6KLB |
| 11000 | 5000 | HILPTLB-11KLB-45C | HISTLB-11KLB |
* Lbs calculated from kg conversion.

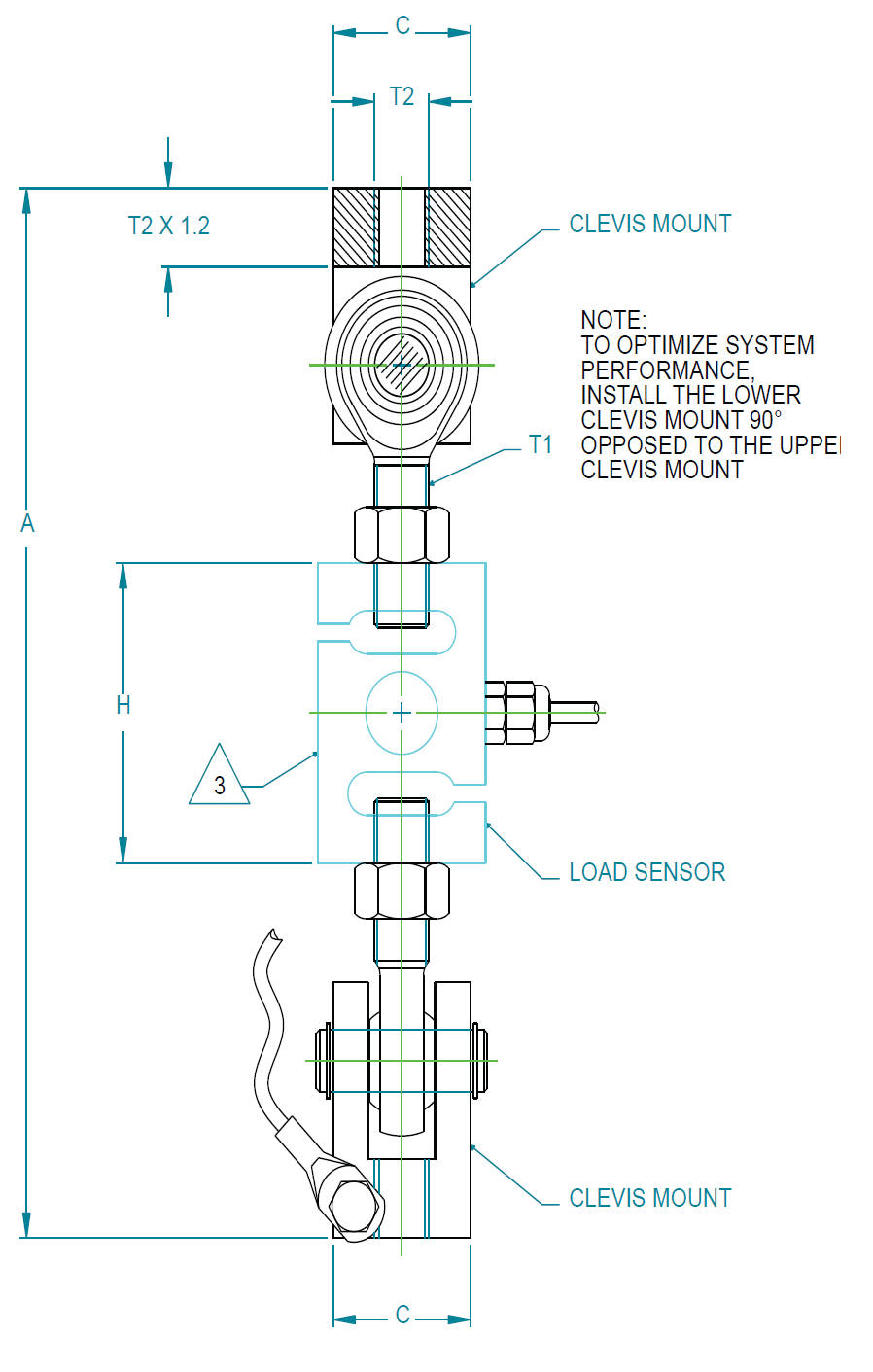

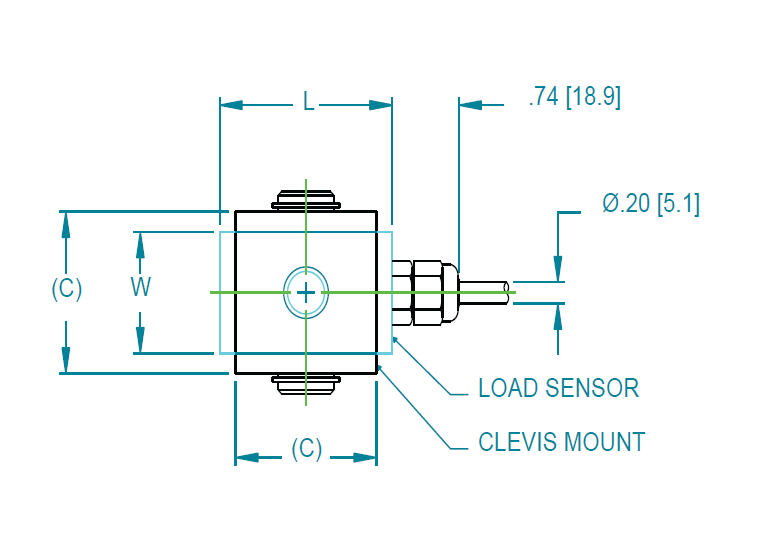

HI STS Mount
DIMENSIONS- INCHES & [mm]
TOLERANCES: ±0.015 [0.38] UNLESS OTHERWISE STATED
| CAPACITY LBS [KG] |
A | C | H | L | W | T1 | T2 | MAXIMUM SAFE STATIC LOAD FORCE-LB [KN] |
| 220 LB [100KG] | 9.25 [235.0] |
1.18 [30.0] |
3.00 [76.2] |
1.93 [49.0] |
1.18 [30.0] |
.500-20 UNC-2B |
.500-13 UNC-2B |
449.62 LB [2KN] |
| 440 LB [200KG] | 9.25 [235.0] |
1.18 [30.0] |
3.00 [76.2] |
1.93 [49.0] |
1.18 [30.0] |
.500-20 UNC-2B |
.500-13 UNC-2B |
899.24 LB [4KN] |
| 1.1 KLB [500KG] | 9.25 [235.0] |
1.18 [30.0] |
3.00 [76.2] |
1.93 [49.0] |
1.18 [30.0] |
.500-20 UNC-2B |
.500-13 UNC-2B |
2.25 KLB [10KN] |
| 2.2 KLB [1000KG] | 9.25 [235.0] |
1.18 [30.0] |
3.00 [76.2] |
1.93 [49.0] |
1.18 [30.0] |
.500-20 UNC-2B |
.500-13 UNC-2B |
3.37 KLB [15KN] |
| 4.4 KLB [2000KG] | 10.50 [266.7] |
1.57 [40.0] |
3.39 [86.1] |
3.00 [76.2] |
1.18 [30.0] |
.625-18 UNC-2B |
.625-11 UNC-2B |
6.74 KLB [30KN] |
| 6.6 KLB [3000KG] | 12.00 [304.8] |
1.97 [50.0] |
3.49 [88.7] |
3.49 [88.7] |
1.57 [40.0] |
.750-16 UNC-2B |
.750-10 UNC-2B |
10.12 KLB [45KN] |
| 11 KLB [5000KG] | 17.00 [431.8] |
2.36 [60.0] |
5.75 [146.1] |
3.59 [91.2] |
2.22 [56.4] |
1.000-12 UNC-2B |
1.000-8 UNC-2B |
16.86 KLB [75KN] |
C2 WIRE COLOR CODE FLAG LABEL IS FOUND APPROX. 10 IN. FROM END OF SENSOR’S CABLE
| EXCITATION + | RED |
| EXCITATION – | BLACK |
| SIGNAL + | GREEN |
| SIGNAL – | WHITE |
| C2+ | GRAY |
| C2 – | VIOLET |
| SHIELD | YELLOW |
WARNING: NEVER cut load sensor cable
CABLE LENGTH 20 FEET
HI STLB Load Sensor
| CAPACITY | H1 | H2 | W | L | -M | -U | -H |
| 100 kg | 3.00 | 1.50 | 1.18 | 1.93 | M12x1.75 | 1/2-20 | N/A |
| 200 kg | 3.00 | 1.50 | 1.18 | 1.93 | M12x1.75 | 1/2-20 | N/A |
| 500 kg | 3.00 | 1.50 | 1.18 | 1.93 | M12x1.75 | 1/2-20 | N/A |
| 1000 kg | 3.00 | 1.50 | 1.18 | 1.93 | M16x2.0 | 1/2-20 | 5/8-18 |
| 2000 kg | 3.39 | 1.69 | 1.18 | 3.00 | M16x2.0 | 5/8-18 | N/A |
| 3000 kg | 3.492 | 1.746 | 1.567 | 3.492 | M20x1.5 | 3/4-16 | N/A |
| 5000 kg | 5.75 | 2.88 | 2.22 | 3.59 | M24x2.0 | 1-12 | N/A |
