HARDY / HI SBHF14, HI SBHC14 and HI HBB01 Footed Hermetic Shear Beam Sensors

Hardy’s HIHBB01 hermetic bending beams are used for many standard industrial manufacturing applications, including platform scales, tank weighing, hoppers, and conveyor systems. With either OneMountTM mounting hardware or height adjustable rubber feet, the HIHBB01 is extremely flexible for a wide variety of installations.

브랜드: HARDY

설명

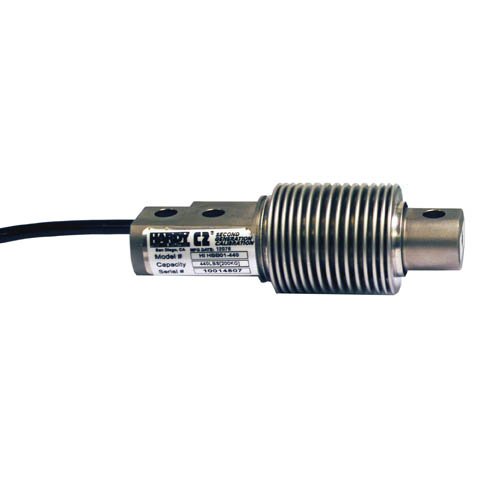

HIHBB01 – C2® Stainless Steel, Hermetically Sealed Bending Beam Load Cell (22 lbs – 1,100 lbs)

Hardy’s HIHBB01 hermetic bending beams are used for many standard industrial manufacturing applications, including platform scales, tank weighing, hoppers, and conveyor systems. With either OneMount^TM mounting hardware or height adjustable rubber feet, the HIHBB01 is extremely flexible for a wide variety of installations.

Each sensor comes matched by mV/V/ohm and includes true hermetic sealing, C2® Electronic Calibration, and on-board electronic certs. With IP68 they provide a high degree of ingress protection.

Features

C2 Electronic Datasheets for EASY Electronic Calibration
Complete Hermetic Sealing
OneMount^TM mounts or optional height adjustable rubber feet
Matched mmV/V/Ω load cells

User Benefits at a Glance

Perfect combination of advanced features and economy for OEMs and System Integrators
C2® Electronic Calibration
Industry Standard Load Cell Form factor allows for easy upgrade of existing systems to utilize C2®
IP68 ingress protection according to EN 60 529

SPECIFICATIONS	Units	HI HBB01
Max Capacity (Emax)	lbs	22 / 44 / 110 / 220 / 440 / 550/1100
Max Capacity (Emax)	kg	10/20/50/100/200/250/500
Max # verification intervals	nmax	3000
Min load cell verification interval	vmin	Emax / 11000
Combined Error	%RO	± 0.0200
Non-Linearity	%RO	± 0.0166
Hysteresis	%RO	± 0.0166
Creep error (30 Min) / DR	%RO	± 0.0166
Temp effect on min dead load ouput	%RO/10°C	± 0.0140
Temperature effect on sensitivity	%RO/10°C	± 0.0100
Non-Repeatability	%RO	Not Specified
Rated Output (RO)	mV/V	2 ± 0.1%
Calibration in mV/V/Ω	Matched
Zero Balance	%RO	± 5
Excitation Voltage	V	15-May
Input Resistance	Ω	380 ± 10
Output Resistance	Ω	350 ± 3
Insulation resistance (100VDC)	MΩ	≥ 5000
Load Cell Safe Load Limit	%Emax	200
Load Cell Ultimate Load Limit	%Emax	300
Load Cell Safe Side Load	%Emax	100
Maximum Platform Size	N/A	N/A
Compensated Temp Range	°C	-10 …±40
Operating Temperature Range	°C	-40…±80
Sealing		Complete Hermetic Sealing – Glass to Metal Header
Protection according to EN 60 529		IP68 (up to 2m water depth)
Load Cell Material		Stainless Steel 17-4PH (1.4548)
Cable Length	ft	10 ft
Hazardous Certification		IS Class 1,2,3 Div 1, NI Class 1,2,3 Div 2
NTEP		NTEP COC 99-057A1

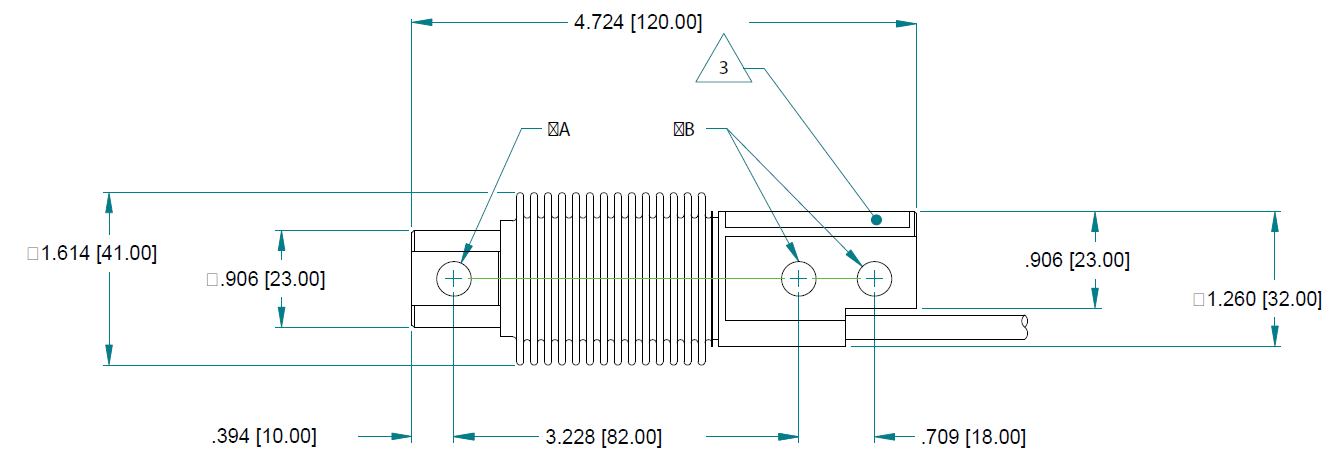

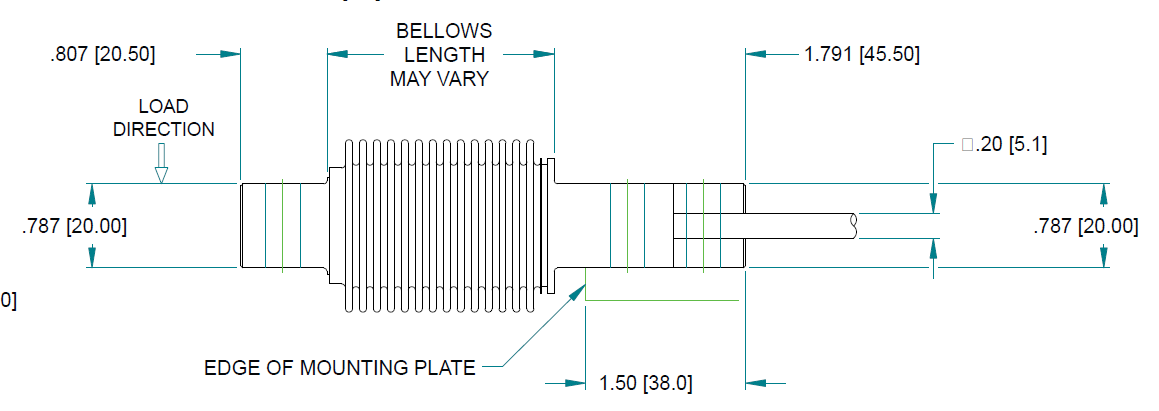

HI HBB01 ADVANTAGE® Footed Load Sensor

MODEL NUMBER	CAPACITY LBS [KG]	ØA	ØB	THD TORQUE	CABLE LENGTH FT [M]
HI HBB01-22	22 LB [10KG]	Ø.320 [8.2MM]	Ø.320 [8.2MM]	18 LB-FT [25NM]	10FT [3M]
HI HBB01-44	44 LB [20KG]
HI HBB01-110	110 LB [50KG]
HI HBB01-220	220 LB [100KG]
HI HBB01-440	440 LB [200KG]
HI HBB01-550	550 LB [250KG]
HI HBB01-1.1K	1.1 KLB [500KG]	Ø.413 [10.5MM]	Ø.320 [8.2MM]	25 LB-FT [35NM]

TOLERANCES: ±0.01 [0.3] UNLESS OTHERWISE STATED

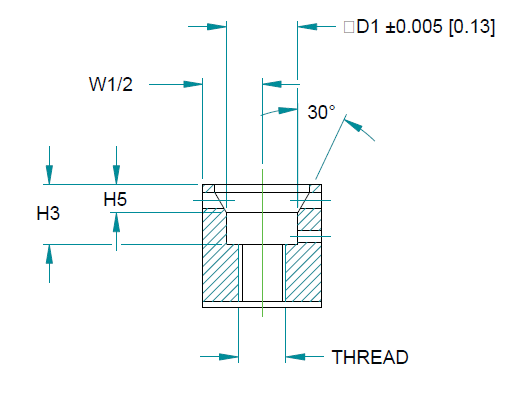

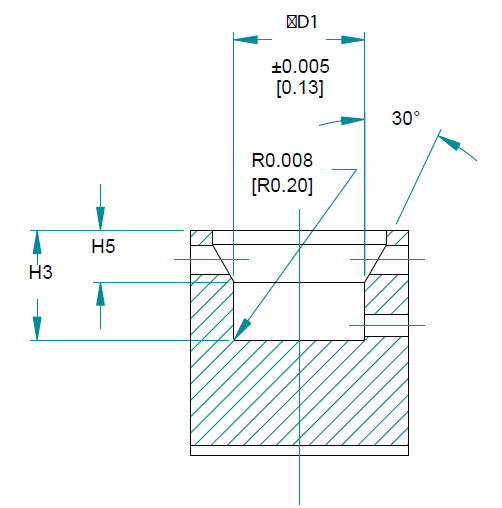

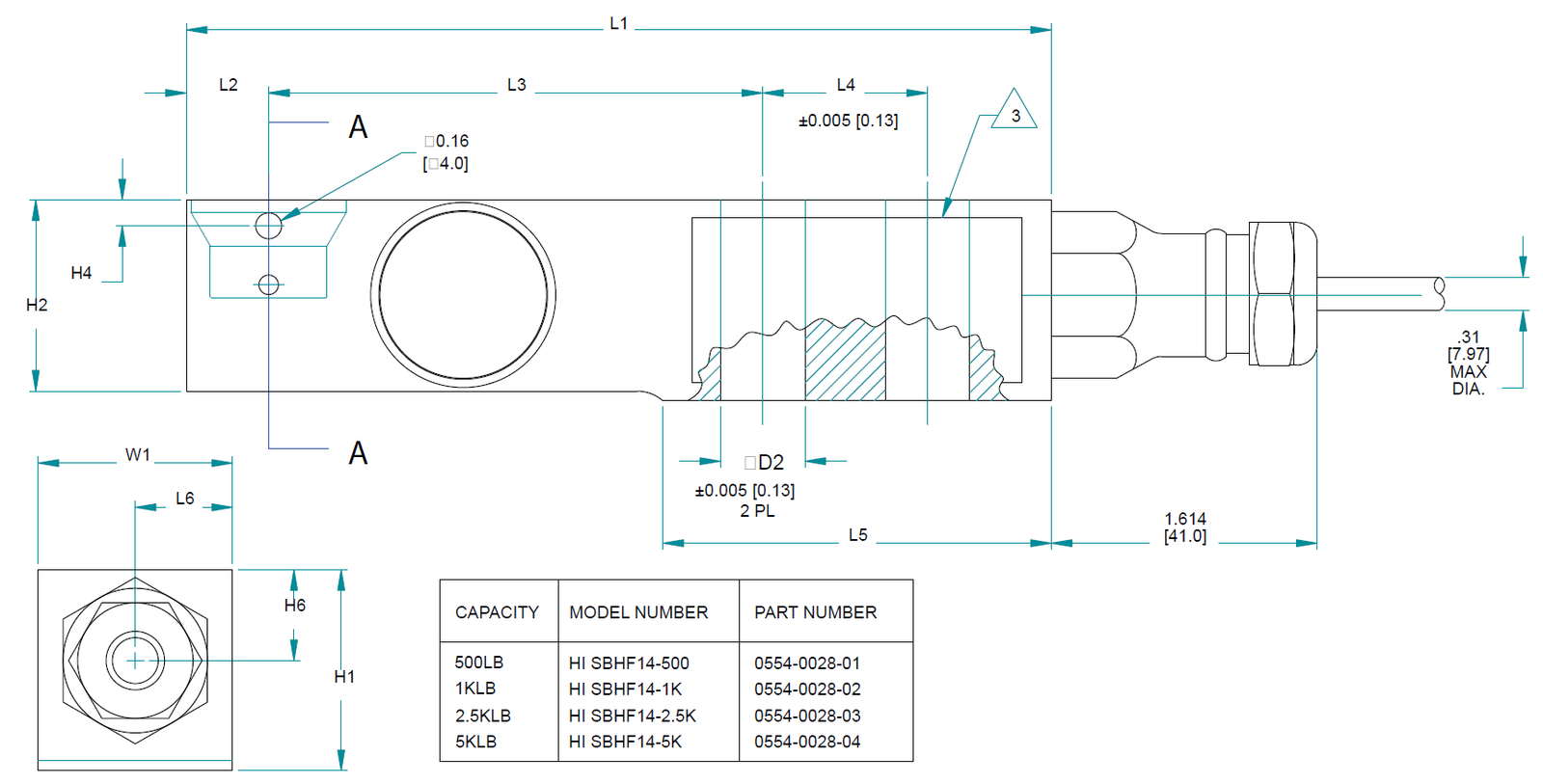

HI SBHF14 ADVANTAGE® Footed Load Sensor]

DIMENSIONS- INCHES & [mm]

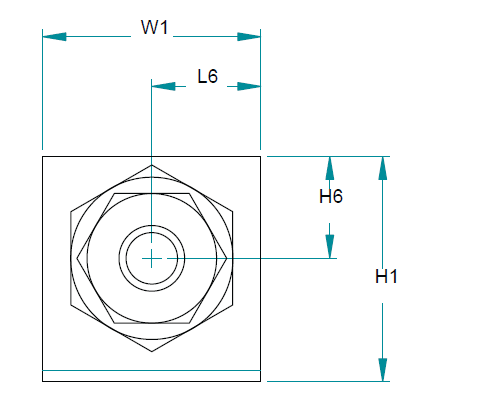

Parameter	500LB / 1KLB	2.5KLB	5KLB
Capacity	500LB / 1KLB	2.5KLB	5KLB
L1	5.25 [133.4]	5.25 [133.4]	5.25 [133.4]
L2	0.50 [12.7]	0.50 [12.7]	0.50 [12.7]
L3	3.00 [76.2]	3.00 [76.2]	3.00 [76.2]
L4	1.00 [25.4]	1.00 [25.4]	1.00 [25.4]
L5	2.36 [59.9]	2.36 [59.9]	2.36 [59.9]
L6	0.59 [15.0]	0.59 [15.0]	0.59 [15.0]
H1	1.22 [31.0]	1.22 [31.0]	1.22 [31.0]
H2	1.02 [28.8]	1.20 [30.5]	1.20 [30.5]
H3	0.59 [15.0]	0.59 [15.0]	0.59 [15.0]
H4	0.16 [4.0]	0.16 [4.0]	0.16 [4.0]
H5	0.28 [7.1]	0.28 [7.1]	0.28 [7.1]
H6	0.58 [14.7]	0.58 [14.7]	0.58 [14.7]
W1	1.181 ± 0.003 [30.0 ± 0.08]	Same	Same
Ø D1	0.709 [18.0]	0.709 [18.0]	0.709 [18.0]
Ø D2	0.51 [13.0]	0.51 [13.0]	0.51 [13.0]
Bolt	.500-20 UNC Grade 5 [M12 8.8]	.500-20 UNC Grade 5 [M12 8.8]	.500-20 UNC Grade 8 [M12 10.9]
Torque	66 ft·lbs [90 Nm]	66 ft·lbs [90 Nm]	88 ft·lbs [120 Nm]

CAPACITY	MODEL NUMBER	PART NUMBER
500LB	HI SBHF14-500	0554-0028-01
1KLB	HI SBHF14-1K	0554-0028-02
2.5KLB	HI SBHF14-2.5K	0554-0028-03
5KLB	HI SBHF14-5K	0554-0028-04

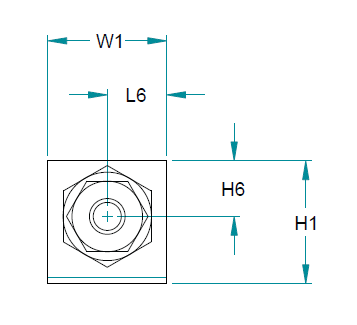

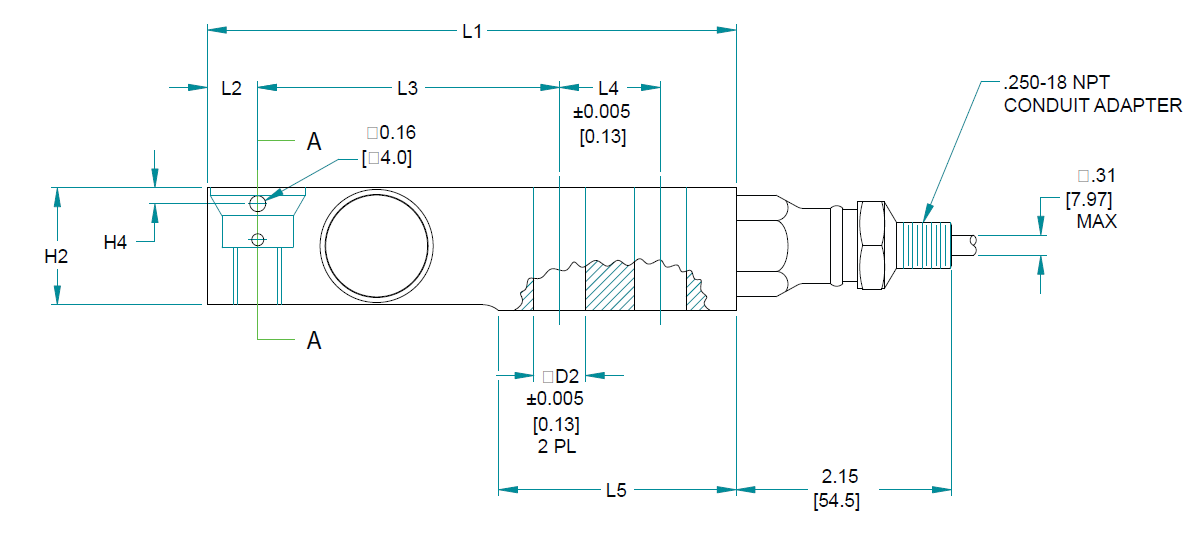

HI SBHC14 ADVANTAGE® Footed Load Sensor

Parameter	500 LB	1 KLB	2.5 KLB	5 KLB
Model	HI SBHC14-500	HI SBHC14-1K	HI SBHC14-2.5K	HI SBHC14-5K
Capacity	500 lb [227 kg]	1K lb [454 kg]	2.5K lb [1.13 MT]	5K lb [2.27 MT]
L1	5.25 [133.4]	5.25 [133.4]	5.25 [133.4]	5.25 [133.4]
L2	0.50 [12.7]	0.50 [12.7]	0.50 [12.7]	0.50 [12.7]
L3	3.00 [76.2]	3.00 [76.2]	3.00 [76.2]	3.00 [76.2]
L4	1.00 [25.4]	1.00 [25.4]	1.00 [25.4]	1.00 [25.4]
L5	2.36 [59.9]	2.36 [59.9]	2.36 [59.9]	2.36 [59.9]
L6	0.59 [15.0]	0.59 [15.0]	0.59 [15.0]	0.59 [15.0]
H1	1.22 [31.0]	1.22 [31.0]	1.22 [31.0]	1.22 [31.0]
H2	1.13 [28.8]	1.13 [28.8]	1.20 [30.5]	1.20 [30.5]
H3	0.59 [15.0]	0.59 [15.0]	0.59 [15.0]	0.59 [15.0]
H4	0.16 [4.0]	0.16 [4.0]	0.16 [4.0]	0.16 [4.0]
H5	0.28 [7.1]	0.28 [7.1]	0.28 [7.1]	0.28 [7.1]
H6	0.59 [15.0]	0.59 [15.0]	0.59 [15.0]	0.59 [15.0]
W1	1.181 ± 0.003 [30.0 ± 0.08]	Same	Same	Same
ØD2	0.51 [13.0]	0.51 [13.0]	0.51 [13.0]	0.51 [13.0]
Thread	.500-20 UNF-2B	Same	Same	Same
Mounting Bolt	.500-20 UNF Grade 5 [M12 8.8]	Same	Same	Same
Tightening Torque	66 lb-ft [90 Nm]	66 lb-ft [90 Nm]	66 lb-ft [90 Nm]	89 lb-ft [120 Nm]
