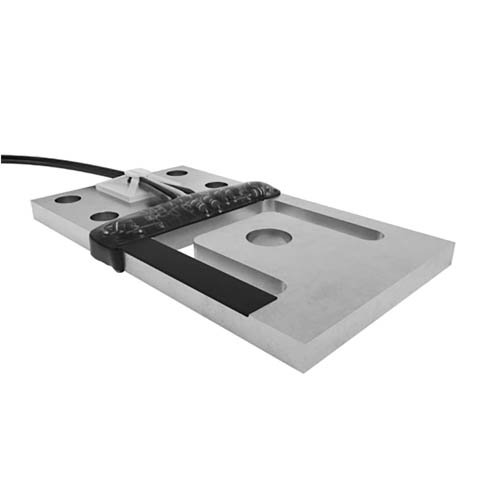

HIPB – Planar Beam Load Cell (3.75 kg – 150 kg)
Planar Beam load cells are typically used for low profile weighing due to their relatively flat design. They are typically used in bench or platform scales and in test and measurement applications.
Constructed from aluminum and environmentally protected using potting material, the HIPB is available in a wide range of capacities from 3.75 kg through to 150 kg.
| Specifications | Units | HIPB |
| Maximum Capacity | lbs | 8.3/16.5/33.1/82.7/165.3/330.7 |
| Maximum capacity | kg | 3.75 / 7.5 / 15 /37.5 / 75 / 150 |
| Accuracy class | C3 | |
| Max # of verification intervals | (nmax) | 3,000 |
| Min load cell verification interval | (vmin) | Emax /7,500 |
| Temp effect on min dead load output | %*RO/10°C | ± 0.0187 |
| Temp effect on sensitivity | %*RO/10°C | ± 0.0100 |
| Combined error | %*RO | ± 0.0200 |
| Non-linearity | %*RO | ± 0.0166 |
| Hysteresis | %*RO | ± 0.0166 |
| Creep error (30 min) / DR | %*RO | ± 0.0166 |
| Rated Output (RO) | mV/V | 0.9 ± 0.1% |
| Calibration in mV/V/Ω | % | ± 0.05 |
| Zero balance | %*RO | ± 5 |
| Excitation voltage | V | 5…15 |
| Input resistance (RLC) | Ω | 1,180 ± 50 |
| Output resistance (Rout) | Ω | 1,000 ± 10 |
| Insulation resistance (100 V DC) | MΩ | ≥ 5,000 |
| Safe load limit (Elim) | %*Emax | 300 |
| Ultimate load | %*Emax | 400 |
| Safe side load | %*Emax | 200 |
| Compensated temp range | °C | –10…+40 |
| Operating temp range | °C | –10…+65 |
| Load cell material | aluminum | |
| Sealing | environmentally sealed | |
| Protection EN 60 529 | IP65 |
