HARDY /HISTH - C2® Hermetic Stainless Steel S-Beam Tension Load Cell (225 lbs - 6,600 lbs)

HARDY /HISTH – C2® Hermetic Stainless Steel S-Beam Tension Load Cell (225 lbs – 6,600 lbs)

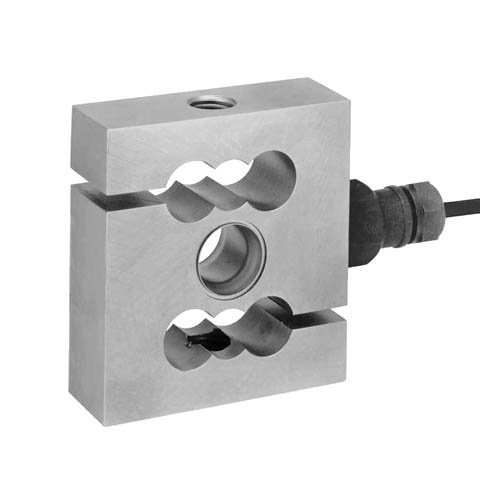

The HISTH family of stainless steel mV/V and mV/V/ohm matched load sensors are accurate tension load cells that feature true hermetic sealing, C2® Electronic Calibration capabilities, on-board electronic certs, a ¼ NPT conduit adapter and twenty feet of cable. Each load cell is compatible with clevis style mounting hardware to provide exceptional accuracy while accommodating for side forces. They are ideal for hanging tanks, hoppers, and other vessels that are suspended and are ideal for mezzanine applications.

Category:
Tag:
브랜드:

설명

HISTH – C2® Hermetic Stainless Steel S-Beam Tension Load Cell (225 lbs – 6,600 lbs)

The HISTH family of stainless steel mV/V and mV/V/ohm matched load sensors are tension load cells that feature true hermetic sealing, C2® Electronic Calibration capabilities, on-board electronic certs, a ¼ NPT conduit adapter and twenty feet of cable. These load sensors have an IP rating of IP68/IP69K.
Each HISTH load cell is compatible with clevis style mounting hardware to provide exceptional load cell accuracy while accommodating for side forces. They are ideal for hanging tanks, hoppers, and other vessels that are suspended and are ideal for mezzanine applications.
The HI HLPT06 sensor is available in the following standard capacities: 225 lbs, 450 lbs, 1,125 lbs.
The HISTH01 standard capacities are 2.25K lbs, 4.5K lbs and 11.25K lbs.

SPECIFICATIONS HISTH06 HISTH01
Rated Capacity lbs 225/450/1125 lbs 2250/4500/11250 lbs
Rated Capacity kg 102/204/510 kg 1020/2041/5103 kg
Rated Output (ES) 2±0.002mV/V 2±0.002mV/V
Max # Verification Int. 3000 3000
Min Verification Int. Emax/10200 Emax/12000
Non-Linearity <±0.0166 % R.O. <±0.0166 % R.O.
Hysteresis <±0.0166 % R.O. <±0.0166 % R.O.
Zero Balance <±5% R.O. <±5% R.O.
Combined Error <±0.02 % R.O. <±0.02 % R.O.
Creep @ 30 Min. <±0.0166 % R.O. <±0.0166% R.O.
Temp Effect Output <±0.0137 % R.O./C <±0.0246% R.O./C
Temp Effect Sensitivity <±0.010 % R.O./C <±0.010 % R.O./C
Input Resistance 1100± 50 ohm 1100 ± 50 ohm
Output Resistance 1000 ± 2 ohm 1000 ±2 ohm
Insulation Resistance ≥5000 Mohm ≥5000 Mohm
Excitation 5 – 15 vdc 5 – 15 vdc
Compensated Temp °C –10 to+40 °C –10 to+40
Operating Temperature °C –20 to+80 °C –20 to+80
Safe Load Limit 200 % Emax 200 % Emax
Ultimate Load 300 % Emax 300 % Emax
Construction Stainless Steel 17-4PH Stainless Steel 17-4PH
Sealing Hermetically Sealed Hermetically Sealed
IP Rating IP68/IP69K IP68/IP69K
Hazardous FM IS Class I, Div 1 FM IS Class I, Div 1
Warranty Two years Two years

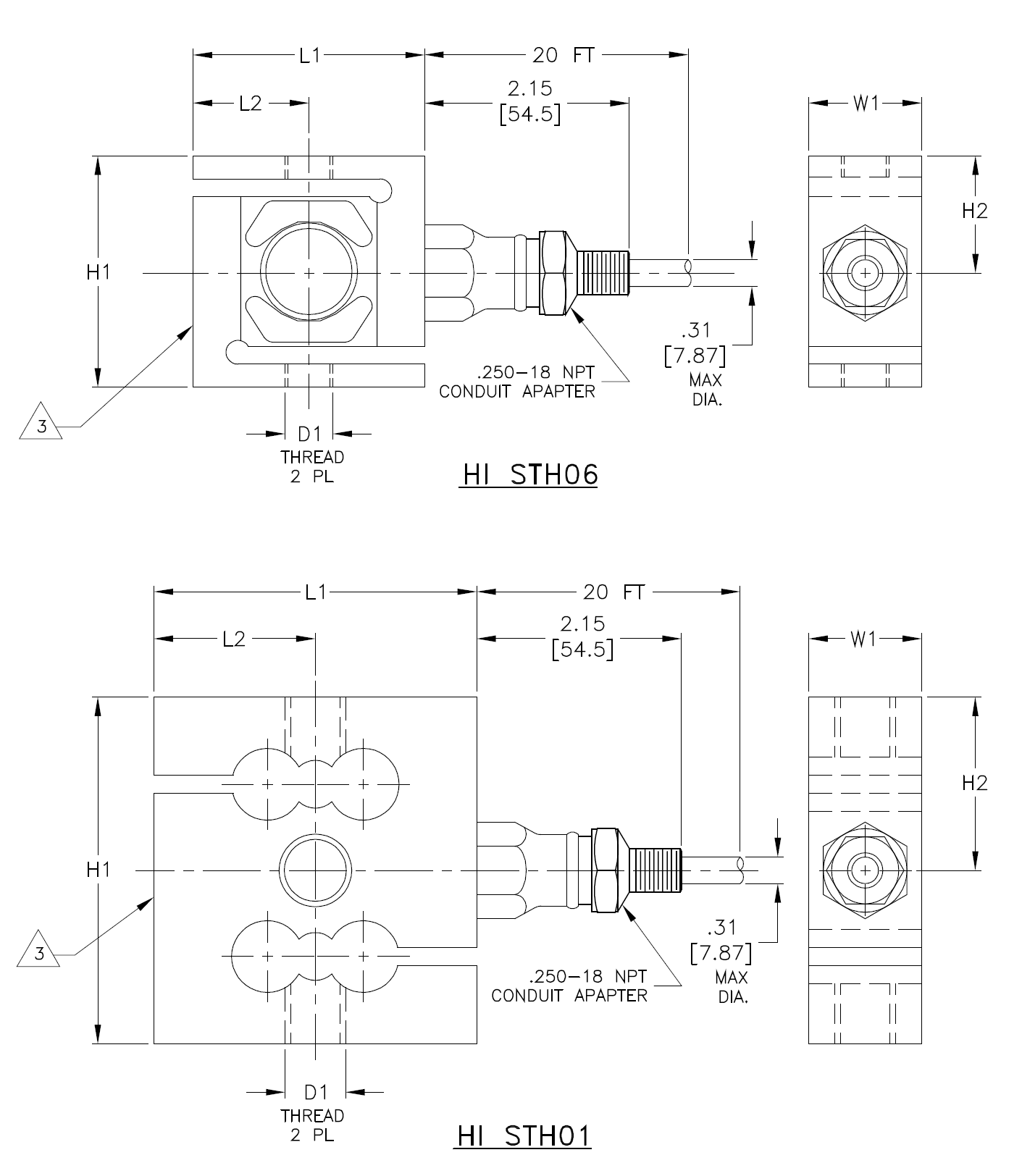

DIMENSIONS-   INCHES  &  [mm]

CAPACITY
LBS [kNJ		 H1 H2 L1 L2 W1 D 1 THREAD
225, 450, 1125
[1J       [2J       [5J		 2.42 [61.5J 1.21
[30.7J		 2.42 [61.5J 1.21 [30.7J 1.18 [30.0J .500-20  UNF
2.25K, 4.5K
[1 OJ [20J		 3.62 [92.0J 1.81
[ 46.0J		 3.38 [86.0J 1.69
[ 43.0J		 1.18 [30.0J .625-18  UNF
11.25K [50J 5.35
[ 136.0J		 2.86 [68.0J 5.62 [143.0J 2.81 [71.5J 1.69
[ 43.0J		 1-12  UNF

TOLERANCES: ±0.015 [0.4J UNLESS OTHERWISE STATED

CAPACITY LBS [kNJ MODEL NUMBER PART NUMBER
225 [1J HI STH06-225 0554-0013-01
450 [2J HI STH06-450 0554-0013-02
1125 [5J HI STH06-1125 0554-0013-03
2.25K [1 OJ HI STH01-2.25K 0554-0014-01
4.5K [20J HI STH01-4.5K 0554-0014-02
11.25K [50J HI STH01-11.25K 0554-0014-03
