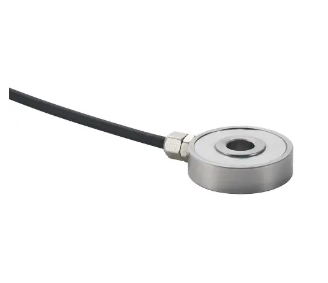

IMADA / CHX series Compression Load Cell

This is washer type compression load cell with capacity of 2000N, equipped with waterproof and dustproof protection class IP64 (Ingress Protection 64 Rating). It is ideal for press-fit force measurement due to the washer (through hole) design.

브랜드: IMADA

설명

CHX series Compression Load Cell

Feature

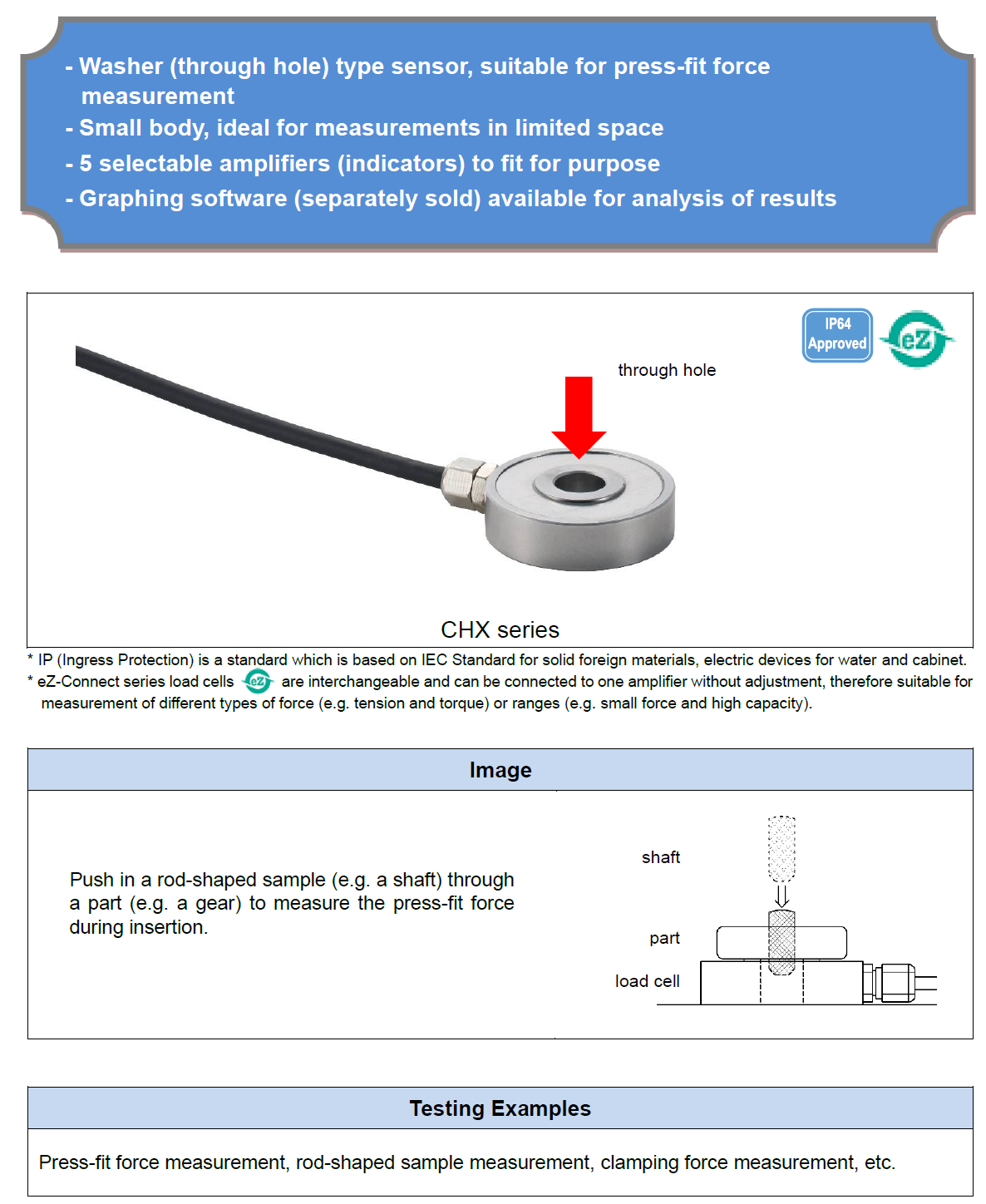

Ideal for press-fit force measurement due to the washer (through hole) design
Suits for measurements in limited space due to the small body
Separated sensor model force gauges with a dedicated sensor available for a certain measurement purpose
eZ-Connect series (interchangeable sensors for using with one amplifier eZT) available for a wide range of testing
